JCB 504-13 telehandler specs & dimensions (2019 - 2025)

Name: JCB 504-13 Telehandlers
Brand: JCB

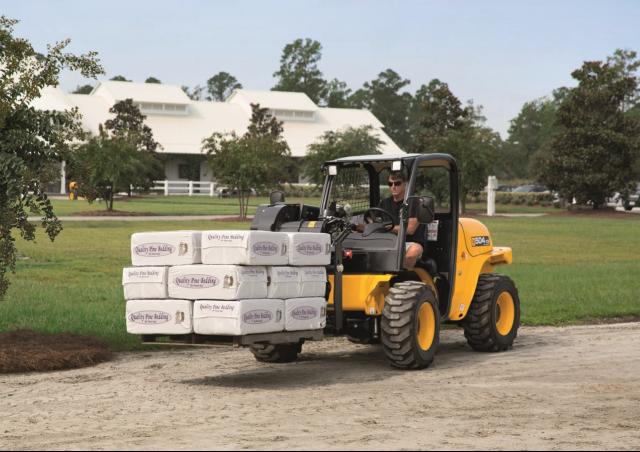

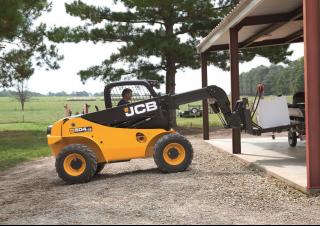

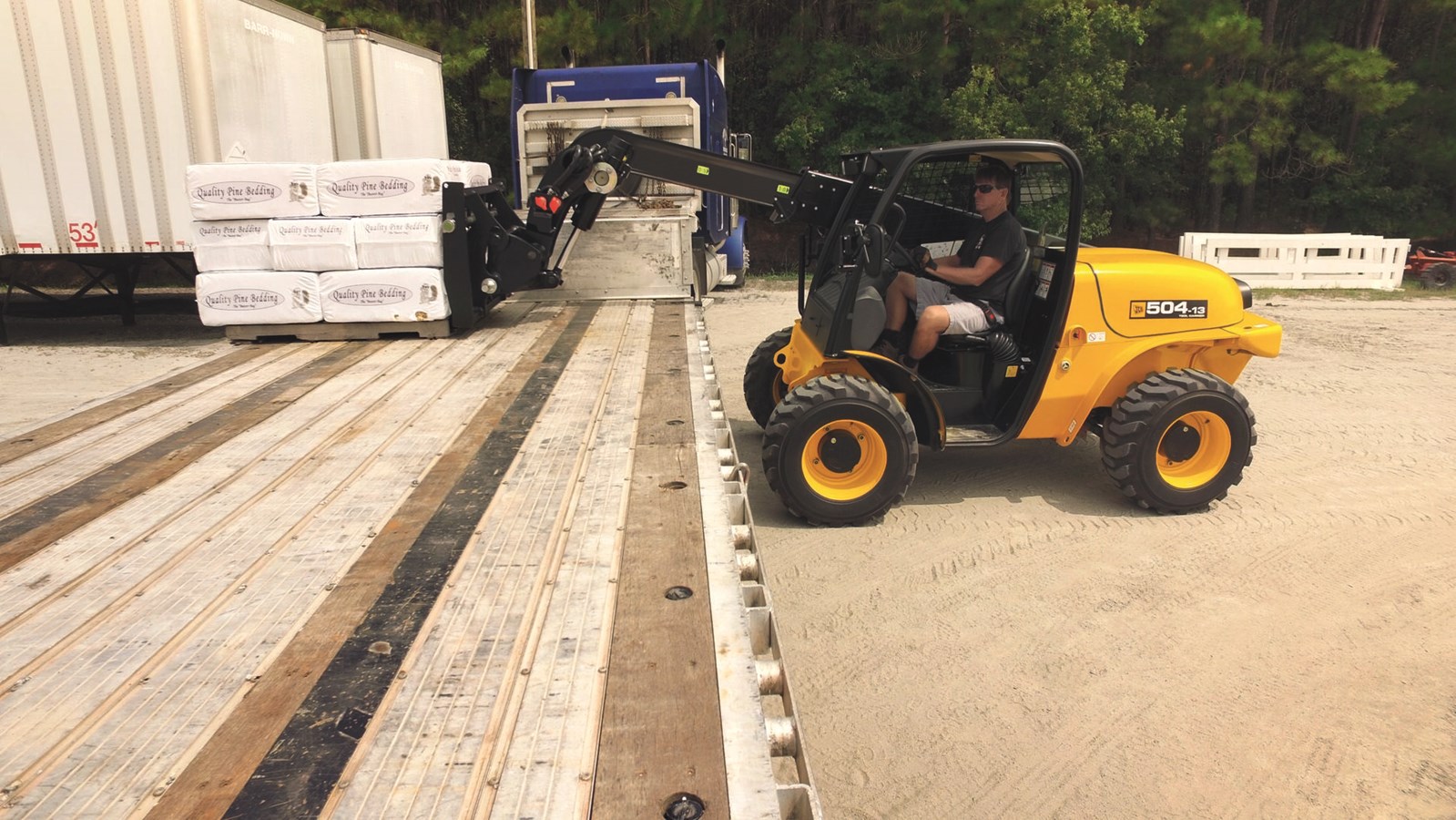

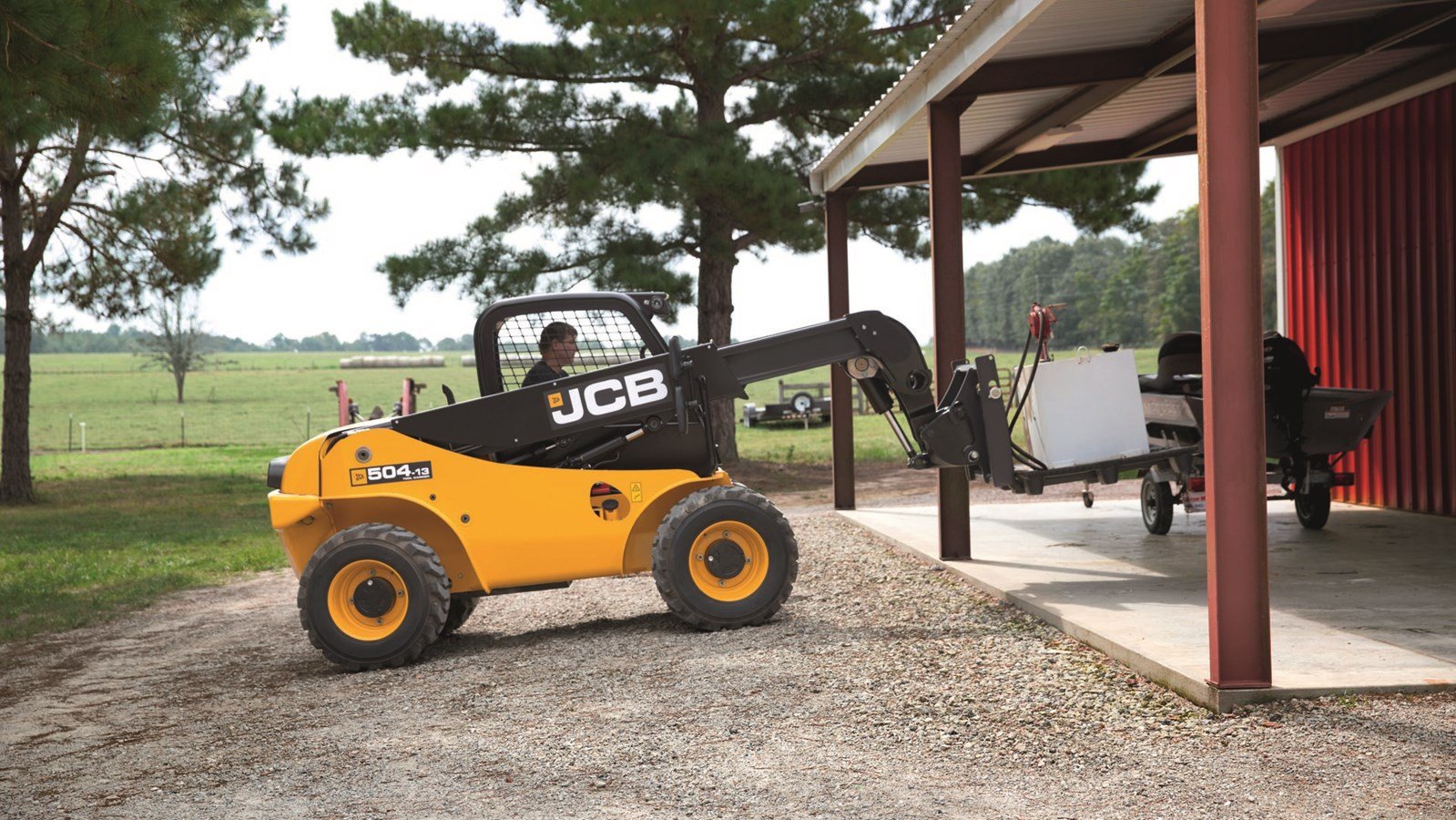

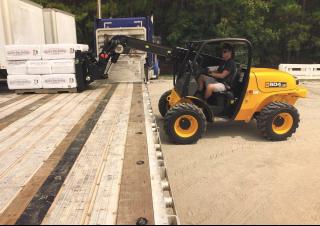

The JCB 504-13 is a telehandler manufactured by JCB since 2019. It has a transport length of 3.38 meters and a transport width of …

The JCB 504-13 is a telehandler manufactured by JCB since 2019. It has a transport length of 3.38 meters and a transport width of 1.56 meters. The telehandler has a nominal load at COG of 2 tons and a lifting height of 4.04 meters. It can travel at a speed of 20 km/h. The capacity at full lift height is 0.85 tons. The transport height of the machine is 1.97 meters. It is equipped with StVZO Equipment.

504-13

Years of manufacture: 2019—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - 504-13 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2 t

Model series: 504

Standard tyres: 11.5/80 -15.3

Lifting height: 4.04 m

Capacity at full lift height: 0.85 t

Transport length: 3.38 m

Transport width: 1.56 m

Transport height: 1.97 m

Travel speed: 20 km/h

Engine manuf.: Perkins

Engine type: 403F-E17T

Engine power: 29 kW

Displacement: 1.7 l

Max. torque: 120 Nm

Cylinder bore x stroke: 84x100 mm

Emission level: T4F

More technical details, like: centre of gravity, transmission type, max. reach horizontal, capacity at full forward reach, weight, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

504-13 JCB Specification for North America (EN)
