MRT 3255 Manitou Rotating Telehandler Specs & Dimensions (2015 - 2020)

Nominal load at COG: 5.5t – Centre of gravity: 500mm – Standard tyres: 17.5 R 25 – Transmission type: HY – Max. Reach horizontal: …

Nominal load at COG: 5.5t – Centre of gravity: 500mm – Standard tyres: 17.5 R 25 – Transmission type: HY – Max. Reach horizontal: 27.2m – Capacity at full forward reach: 0.2t

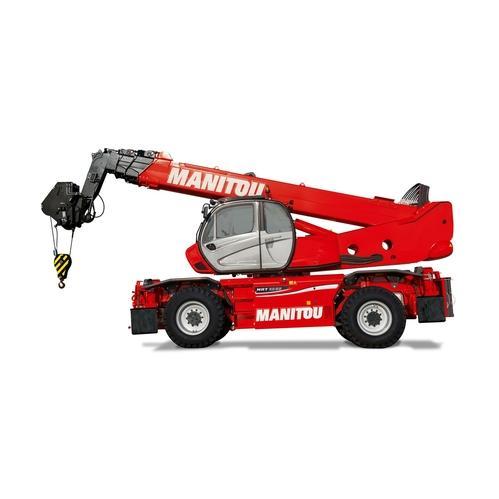

Rotating telehandler MRT 3255 manufactured by Manitou, production years (2015 - 2020). Explore detailed MRT 3255 360 degree telehandler specs: technical details, table charts and data sheets to download. Check also the other rotating telescopic forklift models produced by Manitou.

Visit Manitou live at

Technical specs - MRT 3255 Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
5.5 t
Centre of gravity
500 mm
Standard tyres
17.5 R 25
Transmission type
HY
Max. Reach horizontal
27.2 m
Capacity at full forward reach
0.2 t
Lifting height
31.5 m
Capacity at full lift height
2.5 t
Weight
23.986 t
Transport length
8.5 m
Transport width
2.5 m
Transport height
3.2 m
Model series
MRT
Engine manuf.
Mercedes-Benz
Engine type
OM934 LA E4-1
Engine power
170 kW

More technical details, like: travel speed, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers...

More technical details, like: travel speed, max. climbing ability, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, transmission control, steering type, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, lift height - with maximum capacity, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, carriage rotation angle, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, turning radius - over forks, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, diesel exhaust fluid, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
limited pivotable
No
endless rotation
Yes

Download datasheets (PDF)

Manitou MRT 3255 overview

Manitou MRT 3255 features overview

Adjustable stabilisation surface

The stabilisers have a telescopic scissor design enabling the legs to be only partly deployed when there are obstacles or lack of space. The machine’s capacities are automatically adjusted in this configuration.


Choose the attachments and the model that you need!

Whether you are a rental company or end user, you can choose from 21 to 32 m telehandlers, as well from a wide array of attachments and options that best meet your needs.


Drive

High-performance machines in any situation

MRTs have been designed to easily adapt to any situation. Thanks to their hydrostatic transmission, chassis and engine power, our MRTs show outstanding performance and precision on all types of terrain.


Automatic parking brake

The battery-powered automatic parking brake provides safety for your manoeuvres on all sites. Your machine will not move unless you tell it so!


Easy access to engine components

The engines of our telehandlers are mounted on the right side of the chassis. This provides easy access to the main engine components from the ground. The engine hood can be fully opened for a quick access to all components.


Handling

What is a manitou mrt ?

MRT Privilege + machines are all-terrain telehandlers with four-wheel drive and steering and full 360° turret rotation. MRTs are perfectly adapted to operate quickly and efficiently on any work site, maintaining impressive load capacities without the need to move the machine. Maximise your profits by working with a highly versatile MRT!


Versatile Machines

The MRT concept can be used on tires or stabilizers and combines the functions of 3 machines in 1.


Continuous rotation makes your machine more efficient and reduces maneuver times

Regardless of the attachments used, the MRT Privilege + demonstrates excellent maneuverability and remains completely stable on the ground.


Perfect for all construction applications

MANITOU rotating telehandlers are effective tool-carriers which can easily be fitted with the attachment specifically adapted to your application. To cater to your needs and activities, we offer a wide range of attachments validated by Manitou and specially adapted to your machines. The MRT Privilege+ allows for precise control of your load, transport and lifting of heavy and bulky loads, as well as efficient loading and distribution. Achieve peak operational performance in minimal time from a fixed point.


Pentagonal boom for greater robustness and higher precision

The pentagonal boom offers greater precision and robustness. The load moment indicator sensors are located at the rear of the boom and completely protected in the event of falling objects. The MRT Privilege+ models ensure high precision of boom movements while maintaining lateral rigidity, an essential feature when working at height. Boom movement speeds are adapted to the telescope extension length.


Control of load status

The MRT Privilege+ is fitted with the Manitou Safety System. It continuously analyzes the position of your load within the working envelope and the machine’s work configuration. The system restricts the working area according to the accessory and the load being handled.


Quick extension of the stabilizers

All MRT models come complete with Manitou technology, which ensures complete stability to work in a safe manner.


The MRT Privilege + cab offers a comfortable and safe driver’s cab.

The MRT Privilege + cab is ROPS/FOPS Level 2 certified, ensuring high resistance to rollover accidents and heavy falling objects. You will be protected at all times while using the machine. The steps to the cab are wide and aligned with access to the cab, and are evenly spaced. There are several access points around the machine, regardless of the position of the turret (left and right hand steps, front and rear access ladders).


Simple and rapid coupling

To save you time, the coupling system for Manitou attachments (TS: simple fork carriage with manual or hydraulic locking) is reliable, quick, and easy to use. You can attach and detach your attachments easily.


360° rotating carriage

Continuous rotation carriage for incomparable flexibility. Constant communication with the machine ensures optimum safety and capacity (4000 kg in the front-facing position and 2500 kg when rotating >15°).


Manitou is here to help

Manitou offers a wide range of products and services that cover all your specific needs to enjoy a high performing machine throughout the year.


The connected solution

Easy Manager is a simple and flexible tool for managing, optimizing, and securing the operational monitoring of your machines.


Sustainable solutions

Being THE Benchmark in handling means making a commitment to innovate in order to offer safe, efficient, and sustainable solutions, now and in the future.


Performance

A test protocol

The consumption measurements are tested in four activities that are representative for a telehandler: handling, bulk loading, idling and haulage.


Certified data

In order to have the group’s procedure in terms of measures approved, we use a recognized external organization to certify our data.


Safety

Restrictive working zone

To ensure the safety of your repeated handling movements in congested sites, you can limit the working zone, thereby increasing safety.


Basic dimensions

Limitation of movement speeds

According to the working situation and the type of work, you are able to store the maximum movement speeds of all activating parts of the jib. You store up to four sets of parameters.


Equipment

CBR re-handling bucket

Perfect for handling sand, dirt or gravel, the CBR bucket can handle material with a density less than or equal to 2100 kg/cm3.


PSE 4400 platform

Fast opening platform: opens/closes in less than 50 seconds. Guaranteed safety and maximum efficiency for all your work at heights (up to 1000 kg, including three people). Easy access with three entry points (rail or door depending on the model).


Platform Winch

For panel installation and maintenance of industrial facilities, the platform winch ensures safe elevation of personnel and also allows suspended loads to be lifted and handled directly from the platform without returning to the ground. Capacity on winch up to 450 kg, including a maximum of three people.


P Jib

Tubular extension jib, offering the perfect compromise between front outreach and lightness. This is the essential tool for placing suspended loads. 1500 kg capacity with outreach of 3m (600 to 2000 kg capacities available in the offer).
