GTH4016R Genie Rotating Telehandler Specs & Dimensions (2017 - 2017)

Nominal load at COG: 4t – Centre of gravity: 600mm – Standard tyres: 405/70 19.5 – Transmission type: HY – Max. Reach horizontal: …

Nominal load at COG: 4t – Centre of gravity: 600mm – Standard tyres: 405/70 19.5 – Transmission type: HY – Max. Reach horizontal: 13.4m – Capacity at full forward reach: 0.7t

Rotating telehandler GTH4016R manufactured by Genie, production years (2017 - 2017). Explore detailed GTH4016R 360 degree telehandler specs: technical details, table charts and data sheets to download. Check also the other rotating telescopic forklift models produced by Genie.

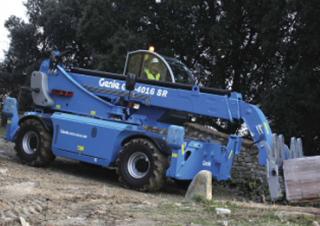

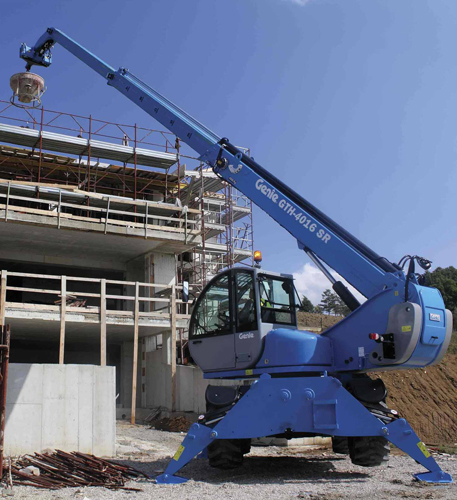

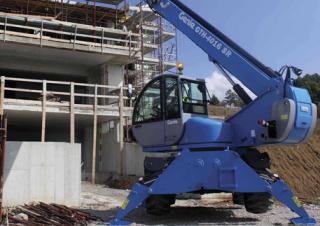

Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R
Rotating telehandlers Genie GTH4016R

Technical specs - GTH4016R Genie

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Centre of gravity
600 mm
Standard tyres
405/70 19.5
Transmission type
HY
Max. Reach horizontal
13.4 m
Capacity at full forward reach
0.7 t
Lifting height
15.42 m
Capacity at full lift height
2.5 t
Weight
13.755 t
Transport length
6.76 m
Transport width
2.42 m
Transport height
2.99 m
Travel speed
30 km/h
Engine manuf.
Perkins
Engine type
854E-E34TA
Engine power
83 kW
Emission level
Tier 3 b

More technical details, like: max. climbing ability, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers...

More technical details, like: max. climbing ability, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, remote control system, telematics available, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, transmission control, steering type, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, lift height - with maximum capacity, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, carriage rotation angle, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
limited pivotable
No
endless rotation
No

Download datasheets (PDF)
