Pegasus 38.16 Dieci Rotating Telehandler Specs & Dimensions (2004 - 2011)

Nominal load at COG: 3.8t – Centre of gravity: 500mm – Standard tyres: 19.5 – Transmission type: HY – Max. Reach horizontal: 13.8m…

Nominal load at COG: 3.8t – Centre of gravity: 500mm – Standard tyres: 19.5 – Transmission type: HY – Max. Reach horizontal: 13.8m – Capacity at full forward reach: 0.3t

Rotating telehandler Pegasus 38.16 manufactured by Dieci, production years (2004 - 2011). Explore detailed Pegasus 38.16 360 degree telehandler specs: technical details, table charts and data sheets to download. Check also the other rotating telescopic forklift models produced by Dieci.

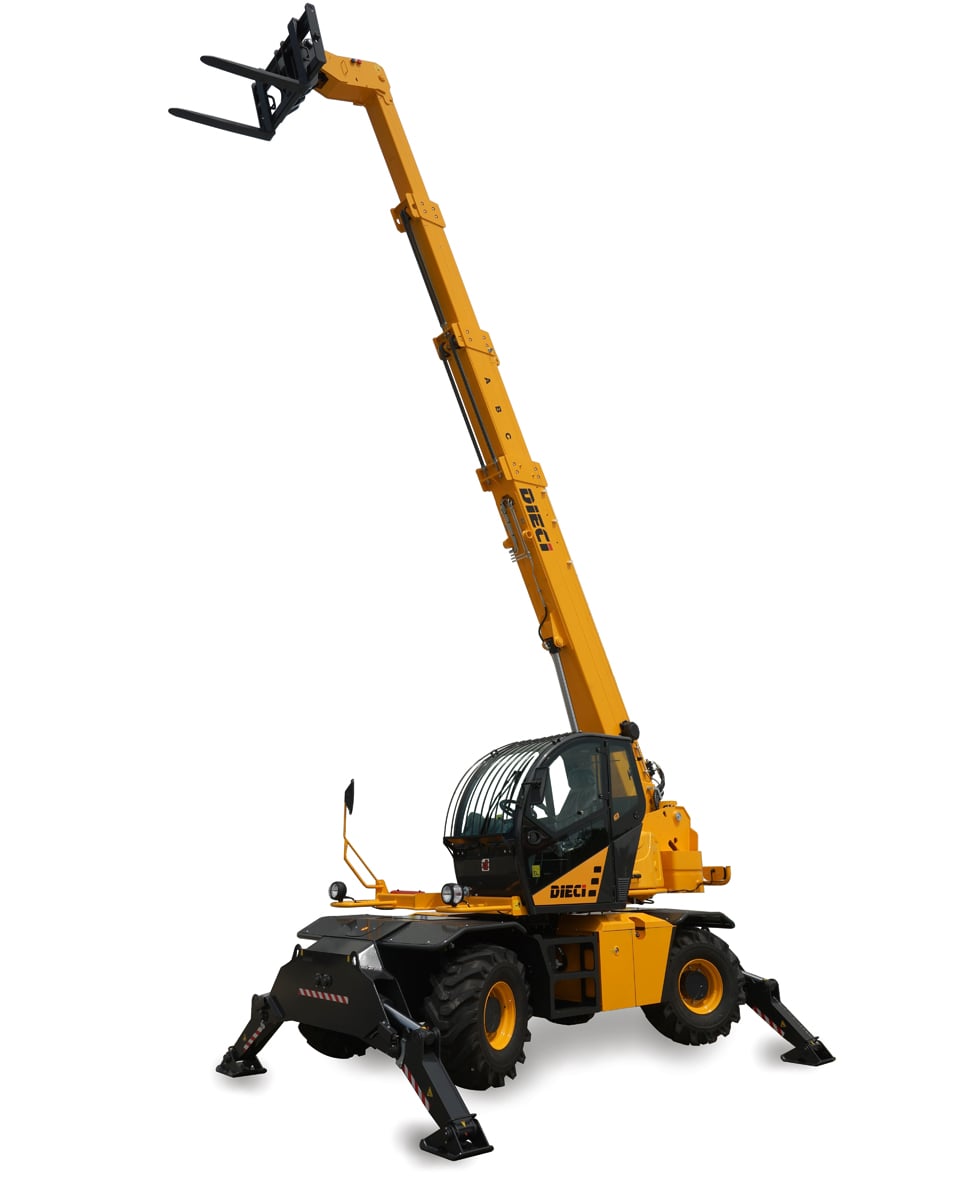

Rotating telehandlers Dieci Pegasus 38.16

Technical specs - Pegasus 38.16 Dieci

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.8 t
Centre of gravity
500 mm
Standard tyres
19.5
Transmission type
HY
Max. Reach horizontal
13.8 m
Capacity at full forward reach
0.3 t
Lifting height
15.5 m
Capacity at full lift height
1.4 t
Weight
14.7 t
Transport length
5.99 m
Transport width
2.38 m
Transport height
3.01 m
Travel speed
40 km/h
max. climbing ability
40 %
Model series
Pegasus
Engine manuf.
Perkins
Engine type
1104D-E44TA
Engine power
106 kW
No. of cylinders
4

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type...

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, engine output - gross, steering type, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, width - cab, width - stabiliser spread, lift height - maximum, lift height - with maximum capacity, reach - maximum, reach - ground with maximum capacity, carriage rotation angle, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
limited pivotable
No
endless rotation
Yes
