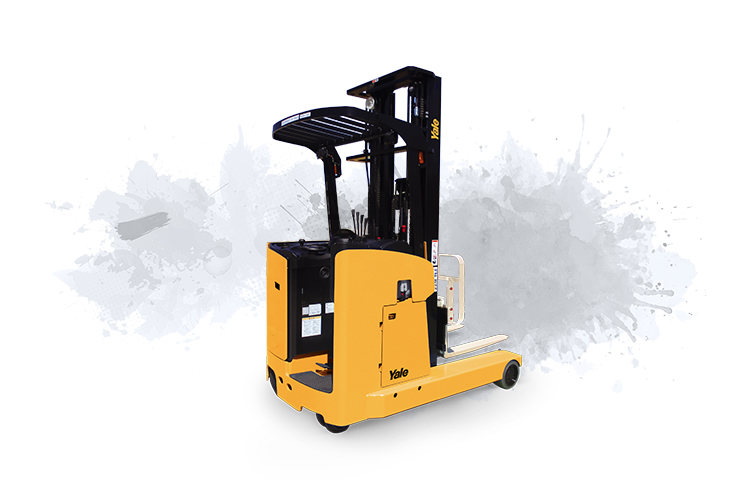

    Yale FBR20SZ Specifications & Technical Data (2022-2022)

    Rate this machine now!

    Nominal load at COG: 2t – Total width: 1190mm – Construction height: 2270mm – Standard tyres: 267 x 114U/394 x 152R – Centre of gravity: 500mm – Voltage: 48V

    Technical specs - FBR20SZ Yale

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 2 t
    • Total width 1190 mm
    • Construction height 2270 mm
    • Standard tyres 267 x 114U/394 x 152R
    • Centre of gravity 500 mm
    • Voltage 48 V
    • Traction motor 5.2 kW
    • Hoist motor 9.6 kW
    • Weight 2.96 t
    • Battery weight 0.52 t
    • Lifting height 3 m
    • Turning radius 1.775 m
    • Travel speed with / without load 9/9,5 km/h
    • Hoisting with / without load 0,315/0,5 m/s
    • Lowering with load 0.56 m/s
    • Drive system ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Triplex mast (5,2m) and side shifting device.
