Toyota THD9900-R90
- Nominal load at COG:
- 44.9 t
- Centre of gravity:
- 1981 mm
- Standard tyres:
- 21.00-25 40PR / 18.00-25 40PR
- Weight:
- 91.751 t

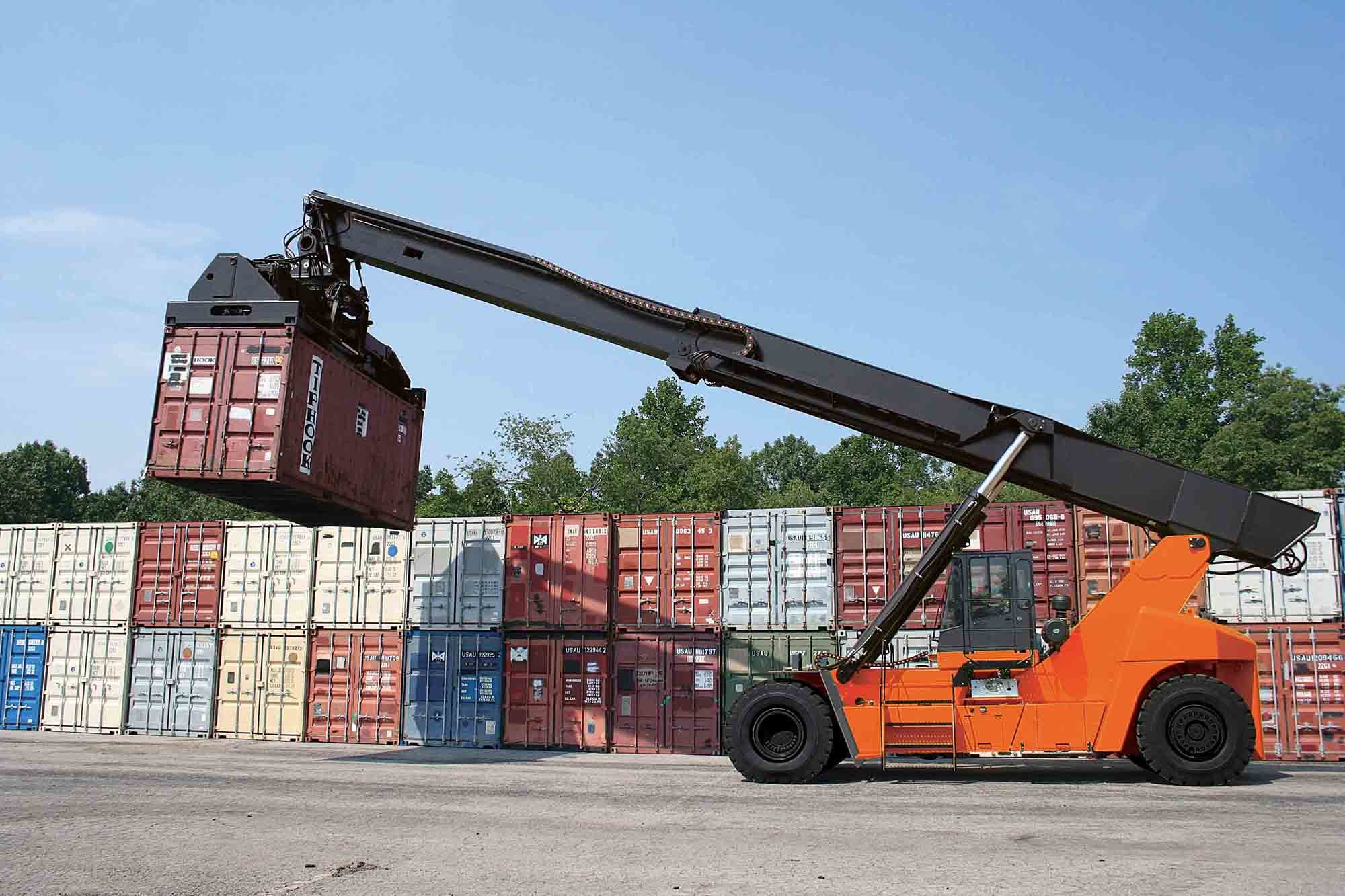

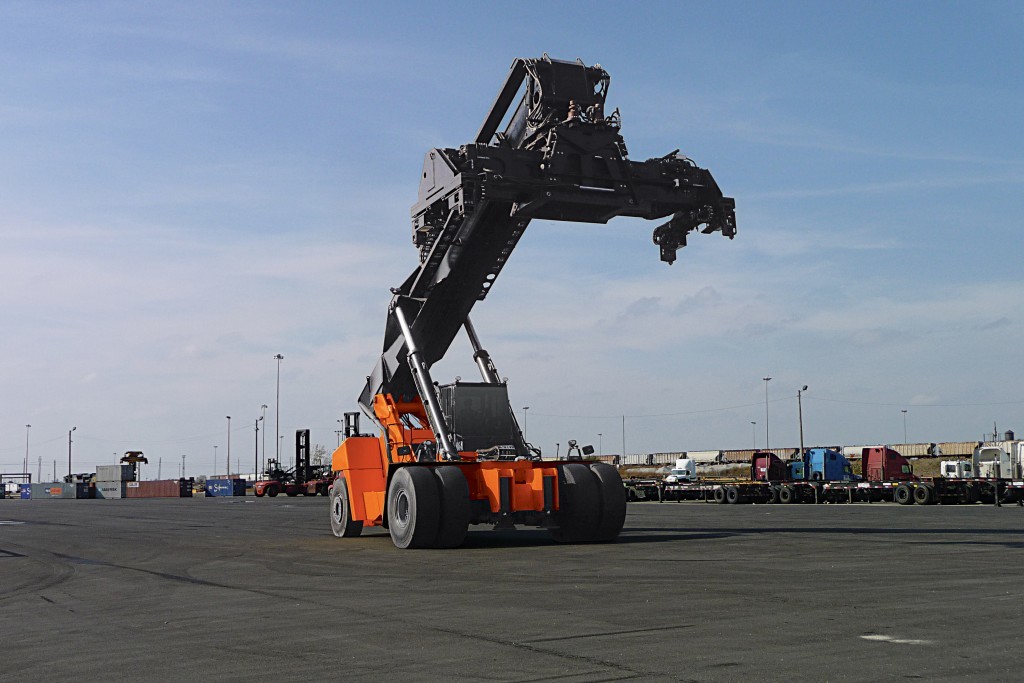

THD9900-R90 Toyota Reach Stacker Specs & Dimensions (2019 - 2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - THD9900-R90 Toyota
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 44.9 t
- Centre of gravity
- 1981 mm
- Standard tyres
- 21.00-25 40PR / 18.00-25 40PR
- Weight
- 91.751 t
- Total width
- 4369 mm
- Construction height
- 4648 mm
- Lifting height
- 15.443 m
- Travel speed with / without load
- 32.3 km/h
- Turning radius
- 9.677 m
- Wheel base
- 6.985 m
- Model series
- THD
- Engine manuf.
- Cummins
- Engine type
- 10.8L QSM11
- Engine power
- 246 kW
- Displacement
- 10.815 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1674 Nm
- No. of cylinders
- 6
- Emission level
- Tier 3
More technical details, like: transmission type, max. reach horizontal, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
