THD1980-E6 Toyota Reach Stacker Specs & Dimensions (2019 - 2022)

Nominal load at COG: 8.981t – Centre of gravity: 2464mm – Standard tyres: 4x / 2 Pneumatic – Weight: 40.577t – Total width: 4115mm…

Nominal load at COG: 8.981t – Centre of gravity: 2464mm – Standard tyres: 4x / 2 Pneumatic – Weight: 40.577t – Total width: 4115mm – Construction height: 9627mm

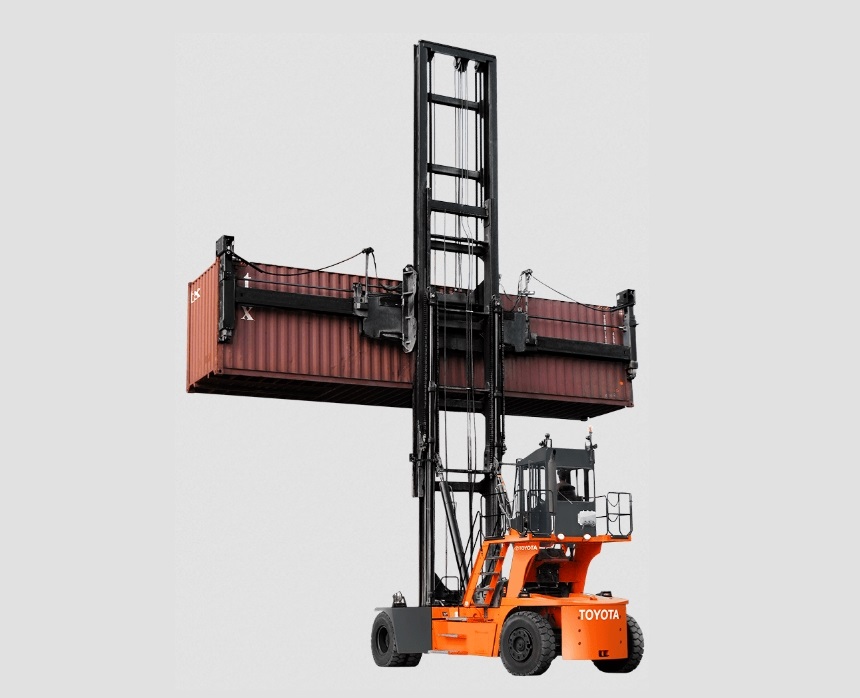

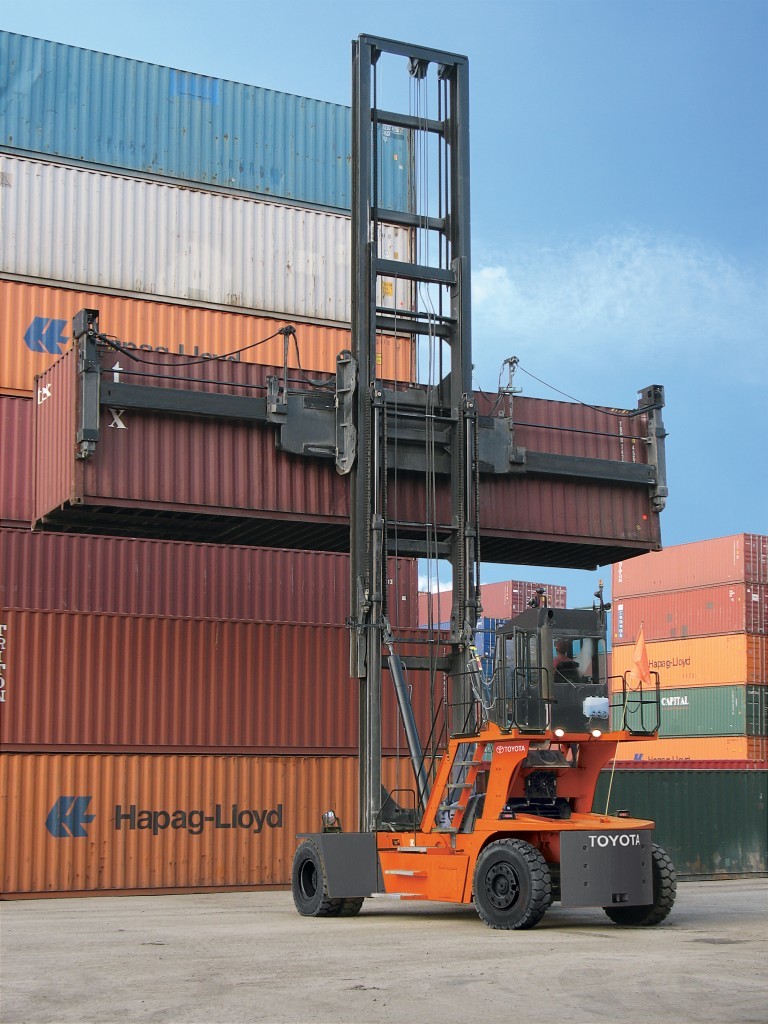

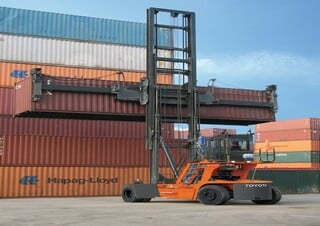

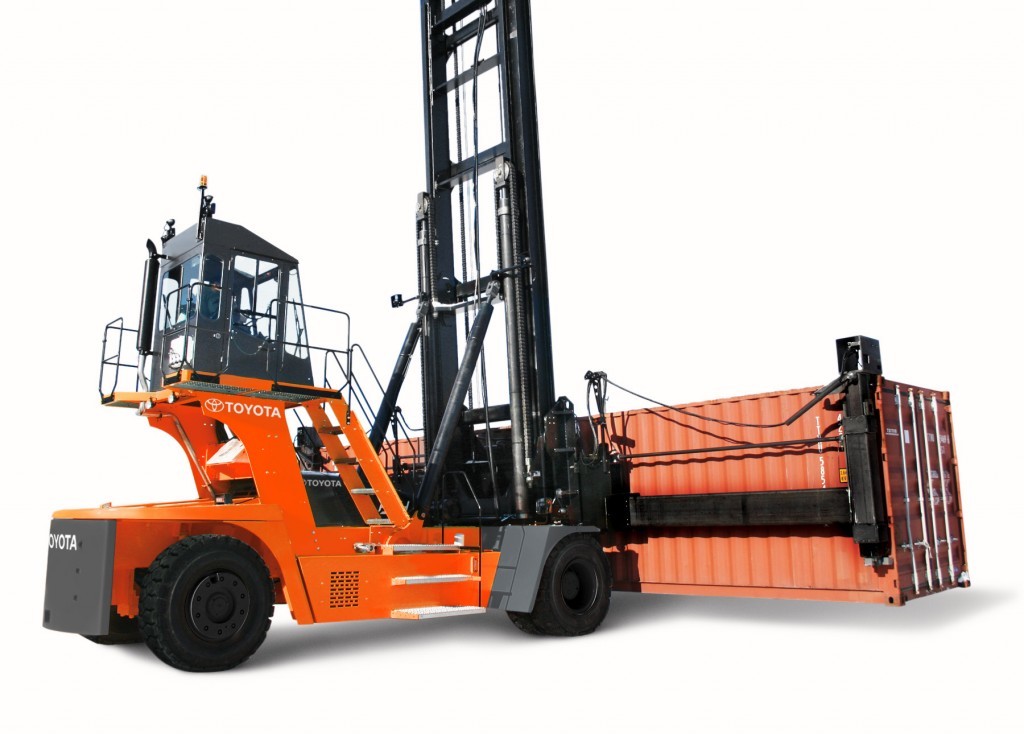

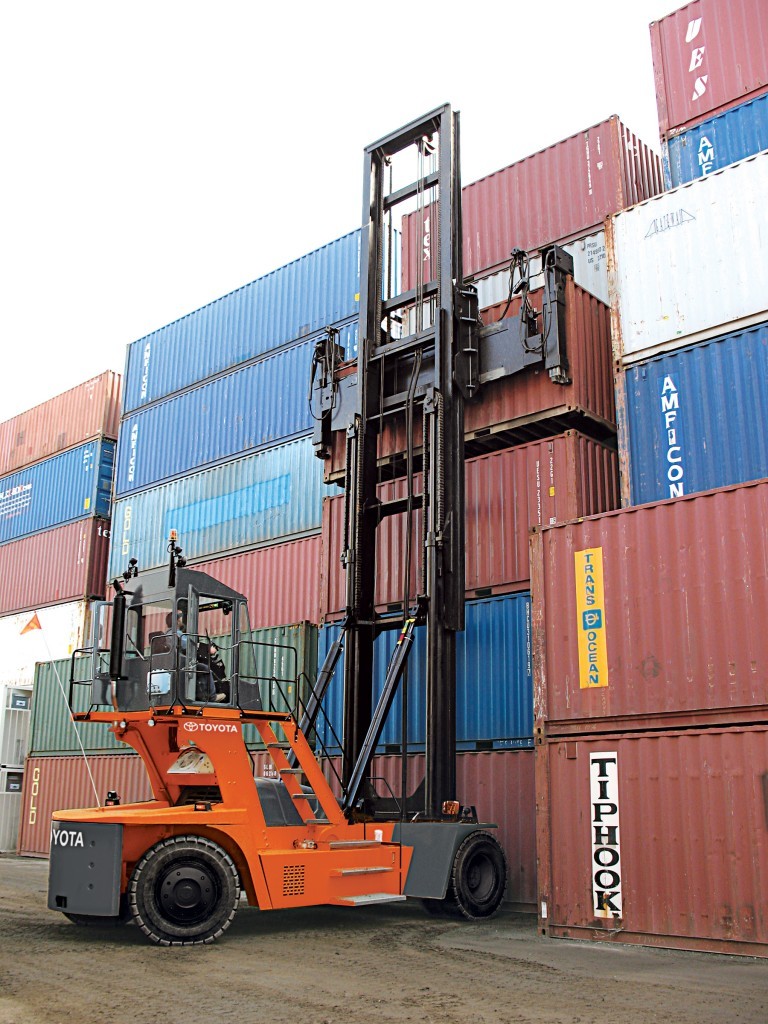

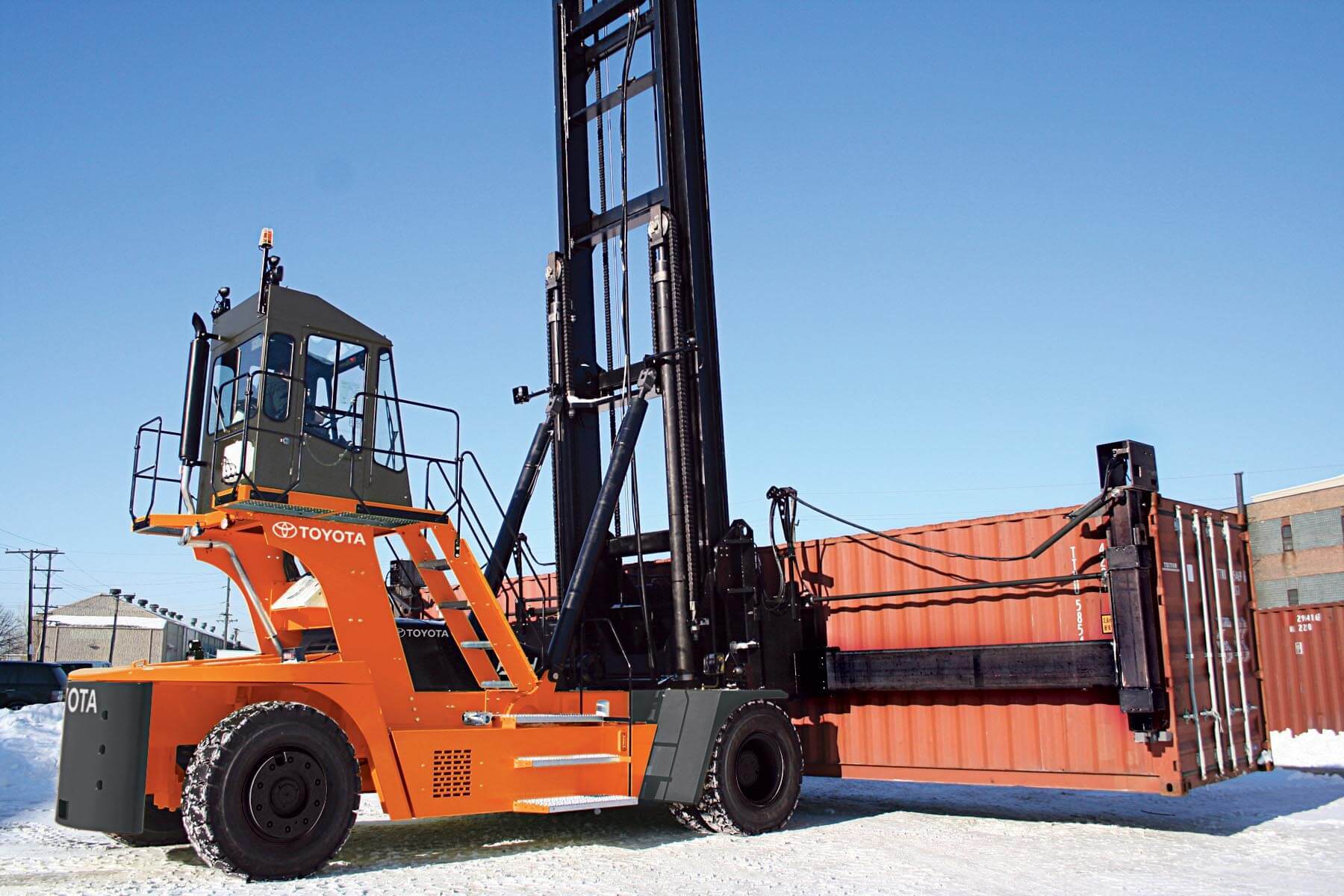

Reach stacker THD1980-E6 manufactured by Toyota, production years [(year-year)]. Explore detailed THD1980-E6 container handler specs: technical details, table charts and data sheets to download. Check also the other container forklift models produced by Toyota.

Technical specs - THD1980-E6 Toyota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
8.981 t
Centre of gravity
2464 mm
Standard tyres
4x / 2 Pneumatic
Weight
40.577 t
Total width
4115 mm
Construction height
9627 mm
Travel speed with / without load
27 km/h
Turning radius
6.147 m
Wheel base
4.572 m
Model series
THD
Engine manuf.
Cummins
Engine type
6.7L QSB
Engine power
179 kW
Displacement
6.702 l
Revolutions at max torque
2500 rpm
Max. torque
683 Nm
Emission level
Tier 3

More technical details, like: transmission type, max. reach horizontal, lifting height, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
