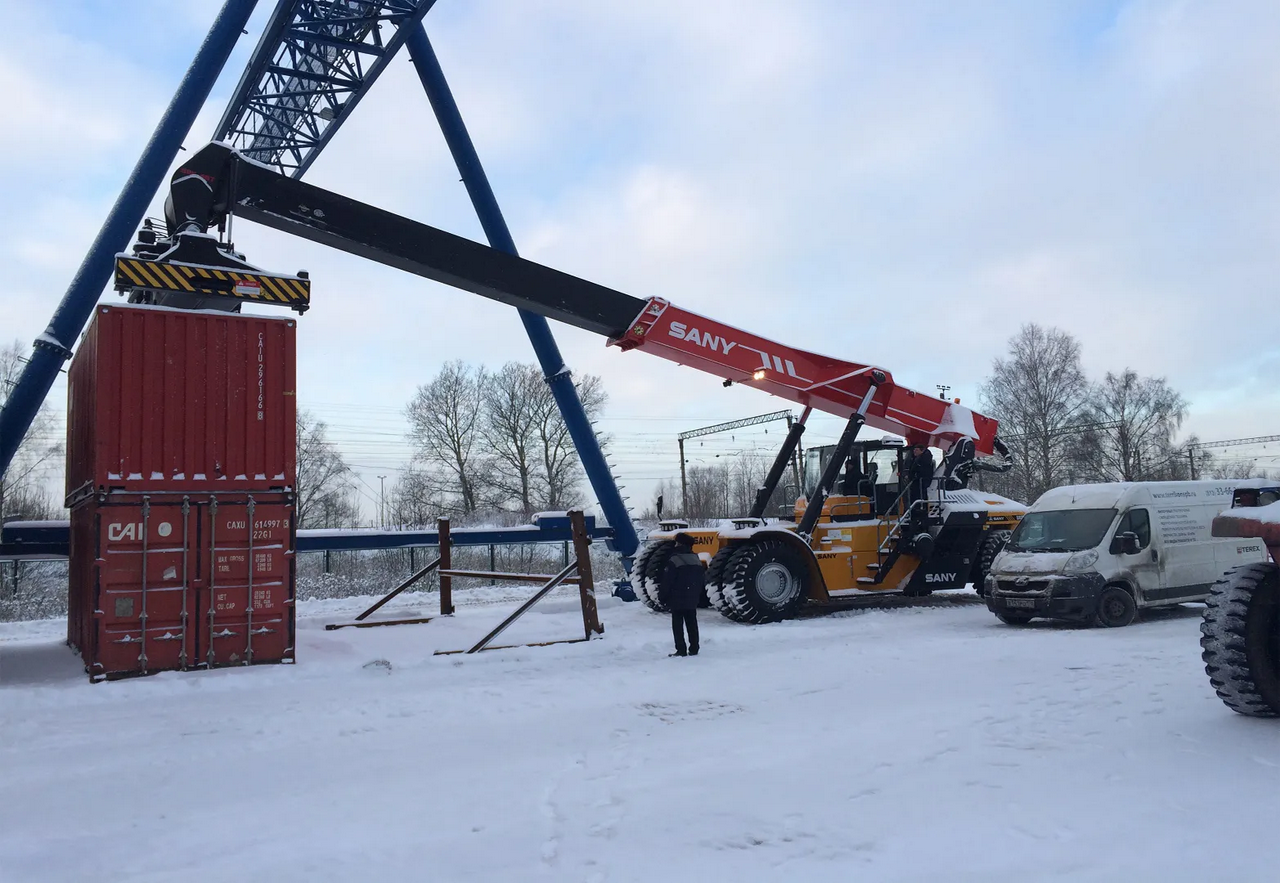

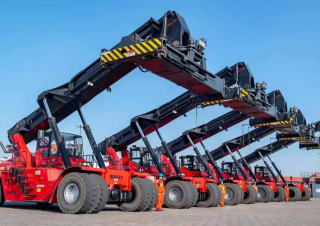

SRSC45V4 Sany Reach Stacker Specs & Dimensions (2025 - 2026)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Visit Sany live at
Technical specs - SRSC45V4 Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Standard tyres
- 18.00-25
- Weight
- 72 t
- Total width
- 6053 mm
- Construction height
- 4770 mm
- Lifting height
- 15.1 m
- Travel speed with / without load
- 21/25 km/h
- Turning radius
- 8 m
- Wheel base
- 6.53 m
- Model series
- SRSC
- Engine manuf.
- Cummins
- Engine type
- QSL9
- Engine power
- 261 kW
- Revolutions at max torque
- 2100 rpm
- Max. torque
- 1627/1500 Nm
- Emission level
- T4F
More technical details, like: centre of gravity, transmission type, max. reach horizontal, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
