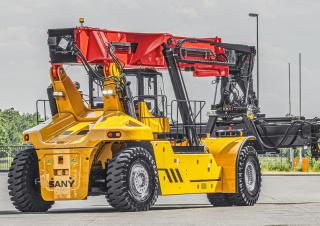

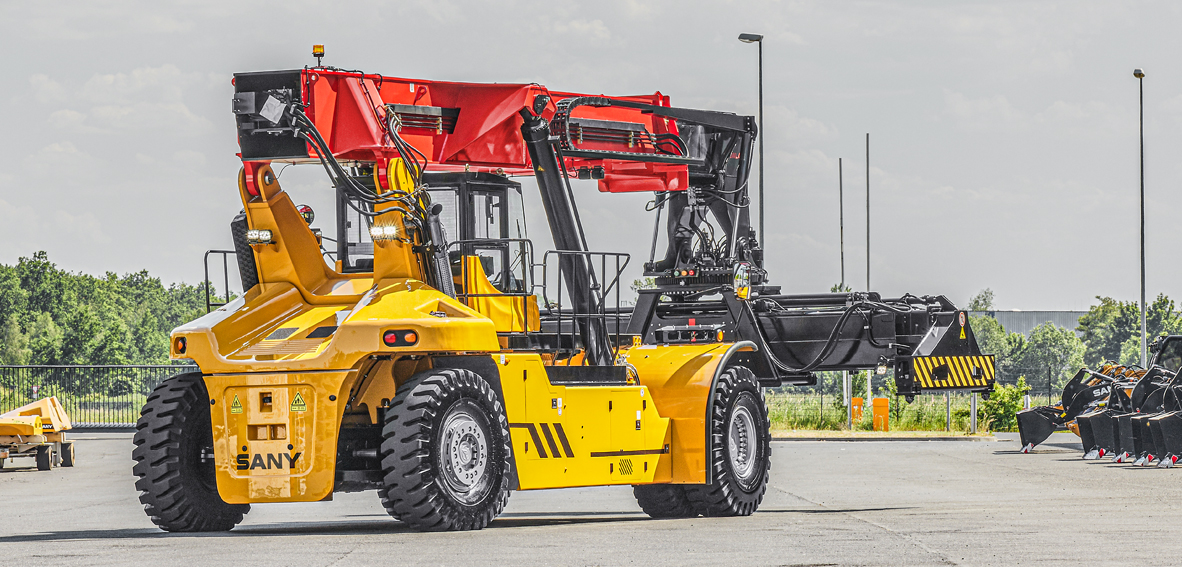

SRSC45G5-P Sany Reach Stacker Specs & Dimensions (2022 - 2026)
Visit Sany live at
Technical specs - SRSC45G5-P Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Standard tyres
- 18.00-25
- Transmission type
- W
- Weight
- 78.3 t
- Total width
- 6042 mm
- Construction height
- 4950 mm
- Lifting height
- 6.315 m
- Travel speed with / without load
- 21/25 km/h
- Turning radius
- 8.1 m
- Wheel base
- 6 m
- Model series
- SRSC
- Engine manuf.
- Volvo
- Engine type
- TAD1181VE
- Engine power
- 265 kW
- Dimension lxwxh
- 1298x921x1153 mm
- Displacement
- 10.8 l
- Revolutions at max torque
- 1448-2100 rpm
- Max. torque
- 1785/1400 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 123x152 mm
- Emission level
- V
More technical details, like: centre of gravity, max. reach horizontal are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
