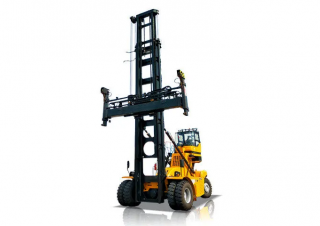

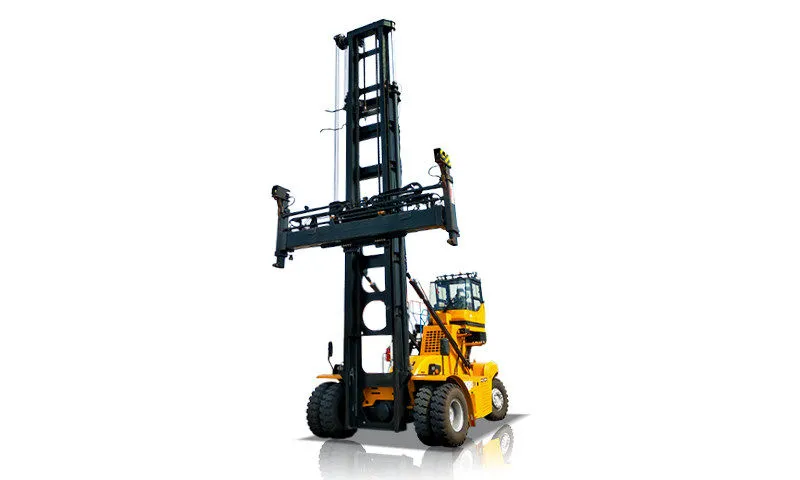

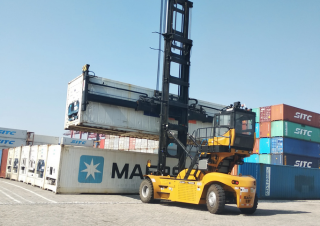

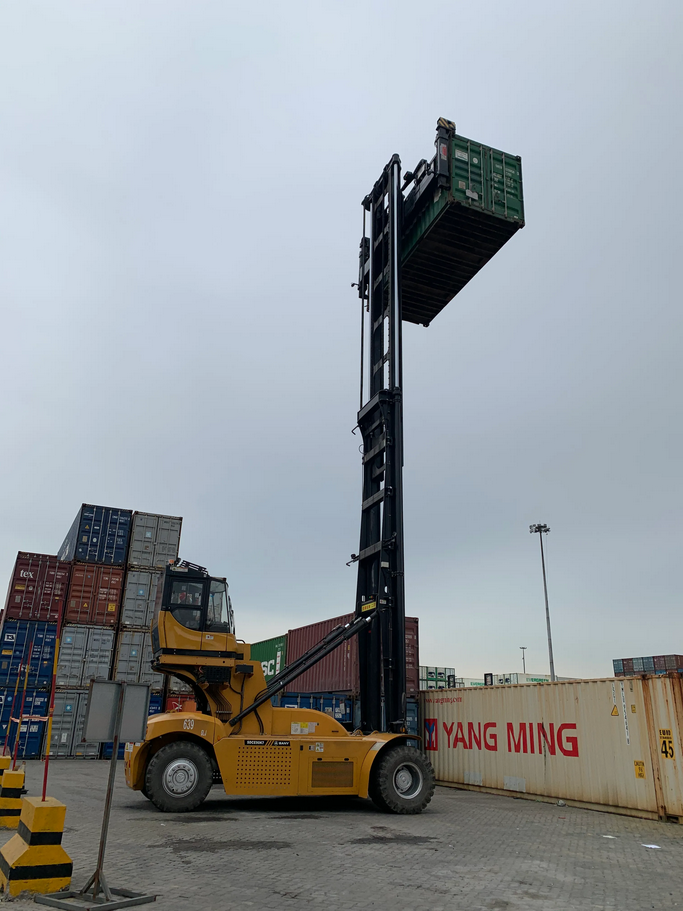

SDCE100K9-T Sany Reach Stacker Specs & Dimensions (2025 - 2026)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Visit Sany live at
Technical specs - SDCE100K9-T Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 10 t
- Centre of gravity
- 1220 mm
- Standard tyres
- 14.00-24 28PR
- Weight
- 46.5 t
- Total width
- 6038 mm
- Construction height
- 10870 mm
- Lifting height
- 21.278 m
- Travel speed with / without load
- 26/28 km/h
- Turning radius
- 6.6 m
- Wheel base
- 5000 m
- Model series
- SDCE
- Engine manuf.
- k.A.
- Engine type
- Elektro
More technical details, like: transmission type, max. reach horizontal, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
