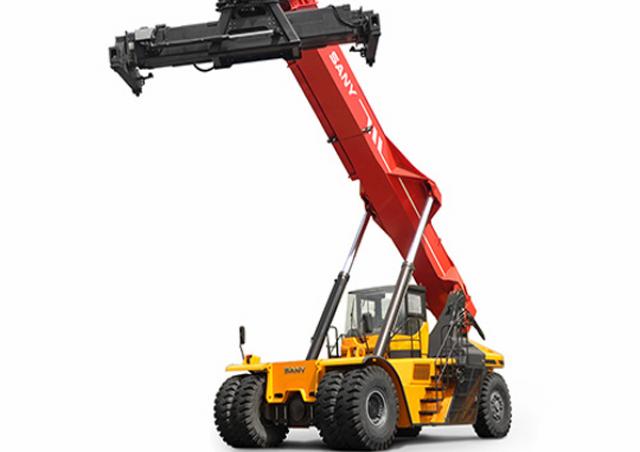

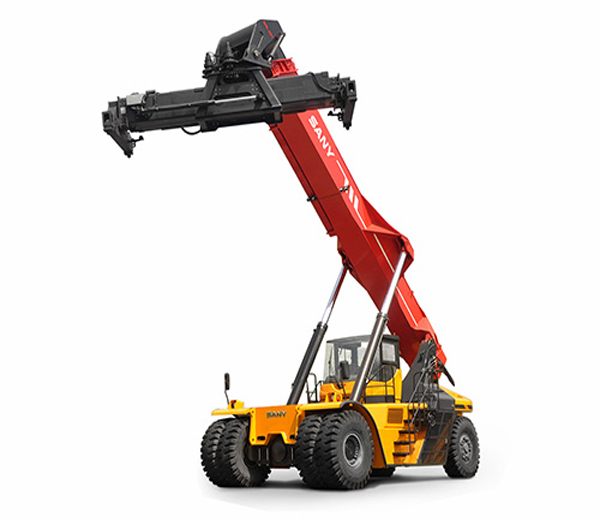

4533G Sany Reach Stacker Specs & Dimensions (2015 - 2018)
Visit Sany live at
Technical specs - 4533G Sany
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Standard tyres
- 18.00-25
- Transmission type
- W
- Max. Reach horizontal
- 6.35 m
- Weight
- 76.8 t
- Total width
- 12175 mm
- Construction height
- 4795 mm
- Lifting height
- 15 m
- Travel speed with / without load
- 25 km/h
- Turning radius
- 8.947 m
- Wheel base
- 6.5 m
- Engine manuf.
- Volvo
- Engine type
- TAD952VE
- Engine power
- 240 kW
- Displacement
- 7.7 l
- Max. torque
- 2100 Nm
- No. of cylinders
- 6
- Emission level
- III A
More technical details, like: centre of gravity, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
