Linde C 4234 TL/4
- Nominal load at COG:
- 42 t
- Centre of gravity:
- 1200 mm
- Standard tyres:
- 4x2
- Transmission type:
- W

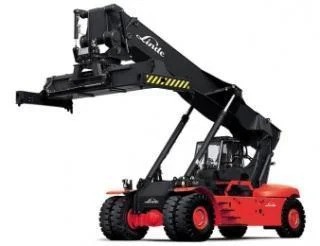

C 4234 TL/4 Linde Reach Stacker Specs & Dimensions (2004 - 2008)
Technical specs - C 4234 TL/4 Linde
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 42 t
- Centre of gravity
- 1200 mm
- Standard tyres
- 4x2
- Transmission type
- W
- Weight
- 73.2 t
- Lifting height
- 13.4 m
- Model series
- 357
- Engine manuf.
- Cummins
- Engine type
- QSM11
- Engine power
- 250 kW
More technical details, like: max. reach horizontal, total width, construction height, travel speed with / without load, turning radius, wheel base, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
