Konecranes SMV 4531 TB 5
- Nominal load at COG:
- 45 t
- Centre of gravity:
- 2000 mm
- Standard tyres:
- 4x2
- Transmission type:
- W

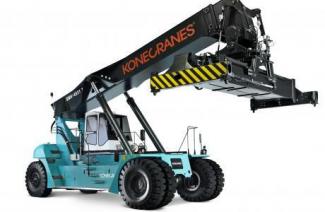

SMV 4531 TB 5 Konecranes Reach Stacker Specs & Dimensions (2011 - 2014)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - SMV 4531 TB 5 Konecranes
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Centre of gravity
- 2000 mm
- Standard tyres
- 4x2
- Transmission type
- W
- Max. Reach horizontal
- 6.35 m
- Weight
- 71.8 t
- Total width
- 6050 mm
- Construction height
- 4500 mm
- Lifting height
- 15.3 m
- Travel speed with / without load
- 22/25 km/h
- Turning radius
- 10 m
- Wheel base
- 6.4 m
- Model series
- TB
- Engine manuf.
- Scania
- Engine type
- DC 13-077 A 1
- Engine power
- 257 kW
More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
