Konecranes 4639 CC5 (FD)
- Nominal load at COG:
- 46 t
- Centre of gravity:
- 1800 mm
- Standard tyres:
- 4x2
- Max. Reach horizontal:
- 6.35 m

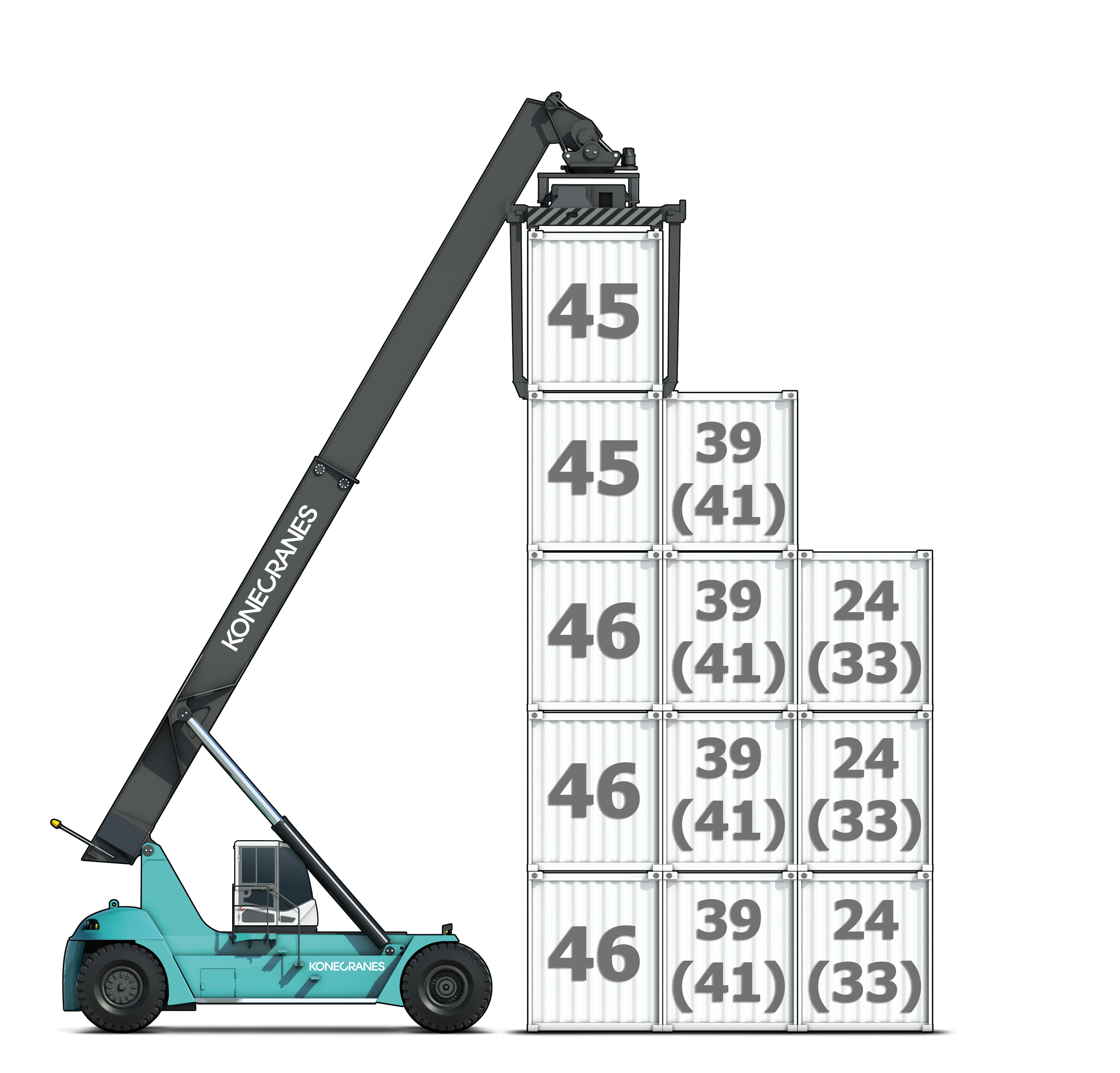

4639 CC5 (FD) Konecranes Reach Stacker Specs & Dimensions (2019 - 2026)
Technical specs - 4639 CC5 (FD) Konecranes
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 46 t
- Centre of gravity
- 1800 mm
- Standard tyres
- 4x2
- Max. Reach horizontal
- 6.35 m
- Weight
- 86.1 t
- Total width
- 6050 mm
- Construction height
- 4975 mm
- Lifting height
- 14.9 m
- Travel speed with / without load
- 25/26 km/h
- Turning radius
- 10.7 m
- Wheel base
- 7.5 m
- Model series
- CCX
- Engine manuf.
- Volvo
- Engine type
- TAD883‐VE
- Engine power
- 235 kW
- Dimension lxwxh
- 1206x876x1030 mm
- Displacement
- 7.7 l
- Revolutions at max torque
- 2210 rpm
- Max. torque
- 1300 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 110x135 mm
- Emission level
- V
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
