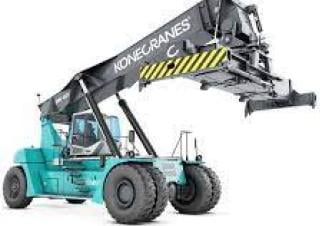

Konecranes 4224 CC5
- Nominal load at COG:
- 41 t
- Centre of gravity:
- 2000 mm
- Standard tyres:
- 4x2
- Transmission type:
- W
4224 CC5 Konecranes Reach Stacker Specs & Dimensions (2019 - 2026)
.jpg)
Technical specs - 4224 CC5 Konecranes
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 41 t
- Centre of gravity
- 2000 mm
- Standard tyres
- 4x2
- Transmission type
- W
- Max. Reach horizontal
- 6.35 m
- Weight
- 71 t
- Total width
- 6050 mm
- Construction height
- 4500 mm
- Lifting height
- 14.8 m
- Travel speed with / without load
- 22/25 km/h
- Turning radius
- 10 m
- Wheel base
- 6.4 m
- Model series
- CC
- Engine manuf.
- Volvo
- Engine type
- TAD1181VE
- Engine power
- 265 kW
- Dimension lxwxh
- 1298x921x1153 mm
- Displacement
- 10.8 l
- Revolutions at max torque
- 1448-2100 rpm
- Max. torque
- 1785/1400 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 123x152 mm
- Emission level
- V
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
