108 TC6 Konecranes Reach Stacker Specs & Dimensions (2019 - 2026)

Nominal load at COG: 10t – Centre of gravity: 2700mm – Standard tyres: 4x2 – Transmission type: W – Max. Reach horizontal: 6.35m –…

Nominal load at COG: 10t – Centre of gravity: 2700mm – Standard tyres: 4x2 – Transmission type: W – Max. Reach horizontal: 6.35m – Weight: 39.5t

Reach stacker 108 TC6 manufactured by Konecranes, production years [(year-year)]. Explore detailed 108 TC6 container handler specs: technical details, table charts and data sheets to download. Check also the other container forklift models produced by Konecranes.

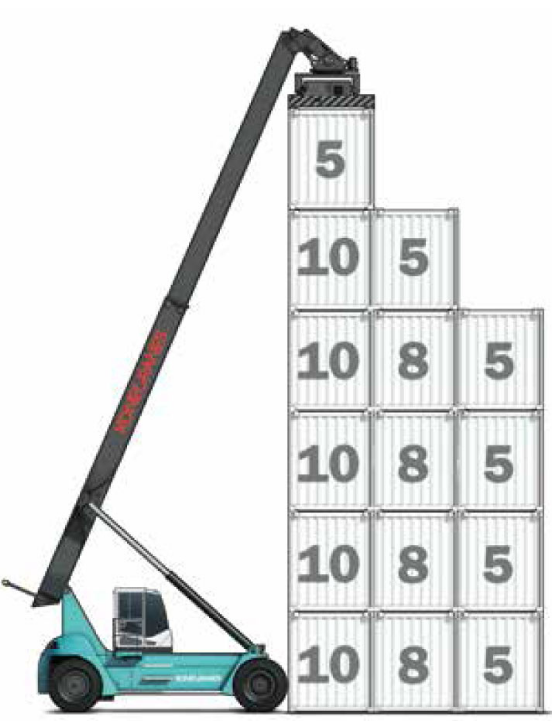

Reach stacker Konecranes 108 TC6

Technical specs - 108 TC6 Konecranes

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10 t
Centre of gravity
2700 mm
Standard tyres
4x2
Transmission type
W
Max. Reach horizontal
6.35 m
Weight
39.5 t
Total width
6050 mm
Construction height
3900 mm
Lifting height
16.2 m
Travel speed with / without load
30/30 km/h
Turning radius
8.4 m
Wheel base
5 m
Model series
TC
Engine manuf.
Volvo
Engine type
TAD881VE
Engine power
185 kW
Revolutions at max torque
2200 rpm
Max. torque
1160/1350 Nm
Emission level
III

More technical details, like: dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
