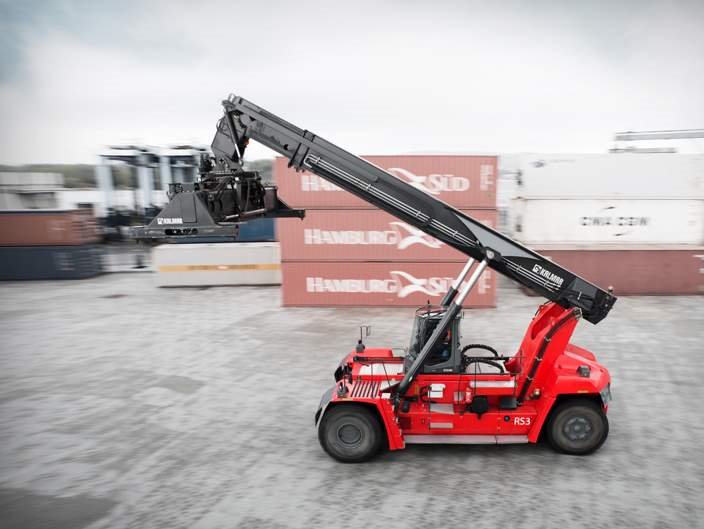

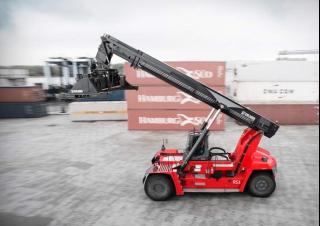

DRG540-60A5X Kalmar Reach Stacker Specs & Dimensions (2018 - 2026)

Making sure your business never stops.

We offer you four different types of service and maintenance contracts, for any brand of equipment. Each is designed to help you improve your operational efficiency, drive productivity and secure financial predictability. The different contract types include a set of standardised service modules that can be tailored to meet your business needs. Opposite is an overview of the four contracts.

Changing the rules of the game.

For many years, reducing your fuel costs and emissions meant compromising on the operational efficiency of your reachstackers, as more fuel-efficient drivelines often meant less productive machines. No longer. Kalmar has developed a unique drive-train system called K-Motion, which has recently been upgraded to version 2.0.

How does K-Motion work?

K-Motion is a combination of well proven transmission technologies, hydrostatic and mechanical drives, combined with smart programming, intelligent controls and a small, but highly efficient engine. This new system operates by splitting the power sources depending on the operational needs of the machine. The hydrostatic power side drive delivers smooth, efficient power, while the mechanical high speed drive activates when additional power is needed. The smart control system will provide the power in the most intelligent way to maximize drive and lifting efficiency for every move you make. This allows the machine to operate with a much smaller engine than other reachstackers, giving you a significant reduction in fuel consumption, less noise and much lower emissions. Kalmar K-Motion 2.0 is good for your business, good for the planet.

Less fuel, less emissions.

Using less fuel will result in a direct reduction in emissions. With Kalmar K-Motion 2.0 you can expect a reduction in fuel consumption of up to 40% in comparison to older reachstackers and up to 20% with modern reachstackers. Reducing your fuel consumption means producing less CO2 and particulate emissions.

Just the right amount of power.

Kalmar K-Motion’s smart programming senses the exact weight of the load being handled. By knowing the precise weight, the system can generate the right amount of power to get the job done, further helping to reduce fuel consumption and emissions. Further fuel savings can be achieved by installing: Automatic Start/Stop functionality Automatic Engine Shutdown Drive Speed Limitation SmartFleet Monitoring Eco Drive Modes (EDMs).

Increased safety and efficiency.

Kalmar K-Motion 2.0 uses a continuous variable transmission which provides smoother transition in shifts, drive stops and direction changes. This allows the operator to drive more precisely, resulting in increased safety levels.

The upgraded Kalmar K-Motion 2.0

In our current K-Motion 2.0 upgrade you will benefit from lower power consumption when in operation and a much smoother drive. To achieve this: We have upgraded the hydraulics with new load sensing functionalities and optimized hydraulics functions And have upgraded the machine’s operating software so it adapts quickly to different driving styles and applications. K-Motion 2.0 is available with EU3 and EU4 (EPA Tier 3 and 4f) rated engines and for container, intermodal and industrial handling.

Easier to operate

Kalmar K-Motion reachstackers are much easier to drive than other machines, as their smart programming does a lot of the work for you. Your drivers will no longer need to rev their engines to get the lifting and handling speeds they want, nor will they need to hold the brake pedal continually while lifting and lowering while stationary. This will dramatically reduce the strain and stress on their bodies.

Increased comfort

Kalmar K-Motion reachstackers come fitted with our ergonomically designed EGO cabin. With slim line b-pillars, adjustable seating, steering wheel and control panel, your driver will benefit from a superior operating environment and visibility. Kalmar K-Motion, with its unique driveline, is quieter and vibrates less than traditional reachstackers, further enhancing driver comfort.

Information Systems

Menu driven display with fault analysis. Monitoring of vital functions via push buttons. Load Moment Indicator, scale & load control (LMU). Load Moment Indicator, scale & load control (LMU) incl. graphical Load Moment Indicator (LMU). Load Moment Indicator, scale & load control (LMU) incl. graphical Load Moment Control (LMU) incl. Muirhead.

Comfort

Seat with air-cushion, heating & 3 point belt. Arm rest with heater. Harness with adjustment (L + R). Electrical horizontal suspension of seat. Extra lumbar seat incl. 2-point safety belt (L + R). Bracket for terminal and monitor (RHS). Writing pad, A4 paper box and reading lamp (RHS).

Sanction

Secure, modern, golden with best ergonomics. High visibility cabin with large windows. Strong roof crossbar, crossbar inside 2375 mm height for roof cabin. Side mirrors with wide angle. Interior light. Door with sliding window and key lock (L + R). Tinted laminated windows.

Climate

Sun visor front roof, rear windows (if black net). Air-condition incl. fresh air filter. Air-condition incl. activated carbon filter. Microfilter incl. window heater for open door. Heater incl. window heater function.
