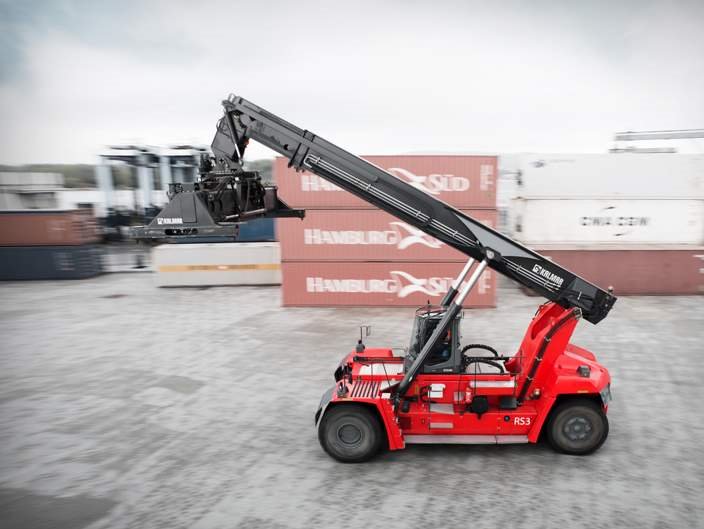

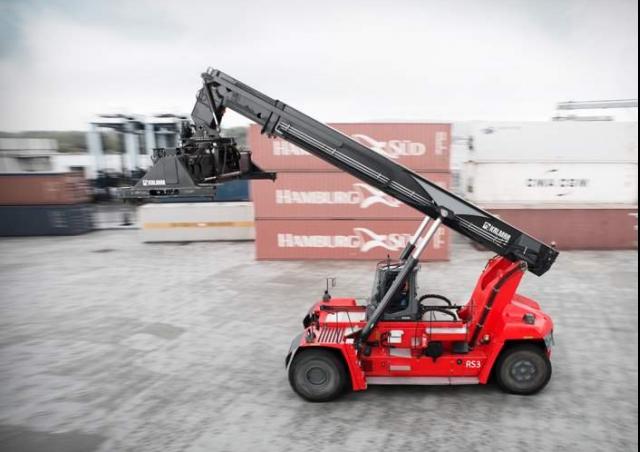

Kalmar DRG450-60S5XE
- Nominal load at COG:
- 45 t
- Centre of gravity:
- 935 mm
- Max. Reach horizontal:
- 4.7 m
- Weight:
- 77.5 t
Kalmar DRG450-60S5XE reach stacker specs (2019 - 2025)
.jpg)
Technical specs - DRG450-60S5XE Kalmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 45 t
- Centre of gravity
- 935 mm
- Max. Reach horizontal
- 4.7 m
- Weight
- 77.5 t
- Total width
- 3030 mm
- Construction height
- 4700 mm
- Lifting height
- 18.3 m
- Travel speed with / without load
- 22/28 km/h
- Turning radius
- 8.1 m
- Wheel base
- 6 m
- Model series
- DRG
- Engine manuf.
- Volvo
- Engine type
- TAD853VE
- Engine power
- 235 kW
- Displacement
- 7.7 l
- Max. torque
- 1310 Nm
- No. of cylinders
- 6
- Emission level
- Tier 3
More technical details, like: standard tyres, transmission type, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
