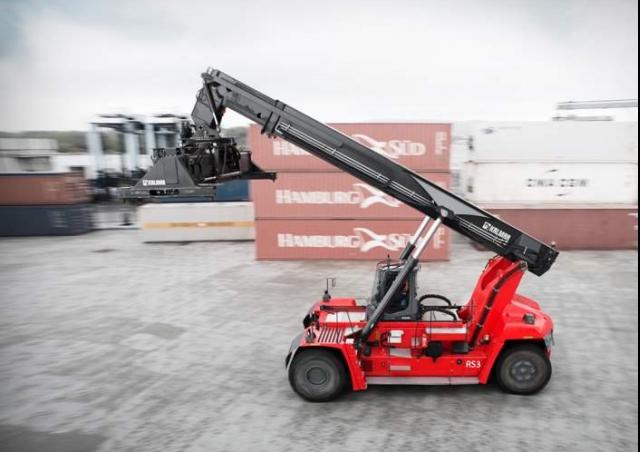

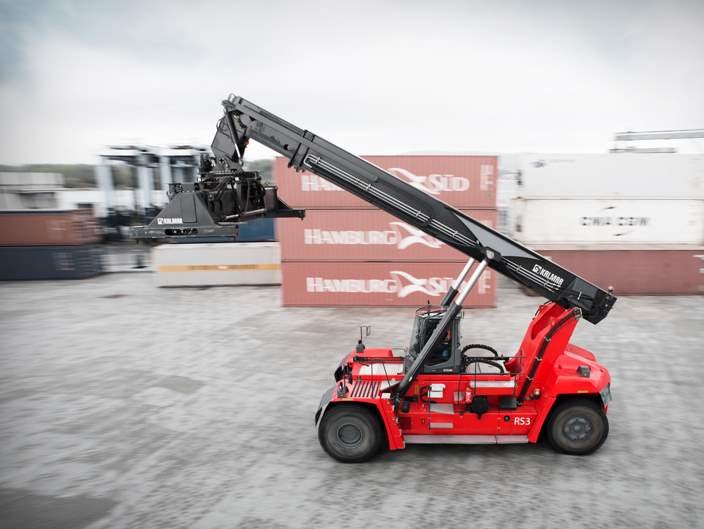

Kalmar DRG420-60S5E Reach Stacker Specs & Dimensions (2019 - 2025)

Nominal load at COG: 42t – Centre of gravity: 835mm – Max. Reach horizontal: 4.6m – Weight: 65.5t – Total width: 3030mm – Construc…

Nominal load at COG: 42t – Centre of gravity: 835mm – Max. Reach horizontal: 4.6m – Weight: 65.5t – Total width: 3030mm – Construction height: 4600mm

Reach stacker DRG420-60S5E manufactured by Kalmar, production years [(year-year)]. Explore detailed DRG420-60S5E container handler specs: technical details, table charts and data sheets to download. Check also the other container forklift models produced by Kalmar.

Technical specs - DRG420-60S5E Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
42 t
Centre of gravity
835 mm
Max. Reach horizontal
4.6 m
Weight
65.5 t
Total width
3030 mm
Construction height
4600 mm
Lifting height
18.2 m
Travel speed with / without load
22/28 km/h
Turning radius
8.1 m
Wheel base
6 m
Model series
DRG
Engine manuf.
Volvo
Engine type
TAD853VE
Engine power
235 kW
Displacement
7.7 l
Max. torque
1310 Nm
No. of cylinders
6
Emission level
Tier 3

More technical details, like: standard tyres, transmission type, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
