DRG100-54S8 Kalmar Reach Stacker Specs & Dimensions (2020 - 2026)

Nominal load at COG: 10t – Centre of gravity: 700mm – Standard tyres: 10.00 × 24" – Max. Reach horizontal: 4.05m – Weight: 40.3t –…

Nominal load at COG: 10t – Centre of gravity: 700mm – Standard tyres: 10.00 × 24" – Max. Reach horizontal: 4.05m – Weight: 40.3t – Total width: 4150mm

Reach stacker DRG100-54S8 manufactured by Kalmar, production years [(year-year)]. Explore detailed DRG100-54S8 container handler specs: technical details, table charts and data sheets to download. Check also the other container forklift models produced by Kalmar.

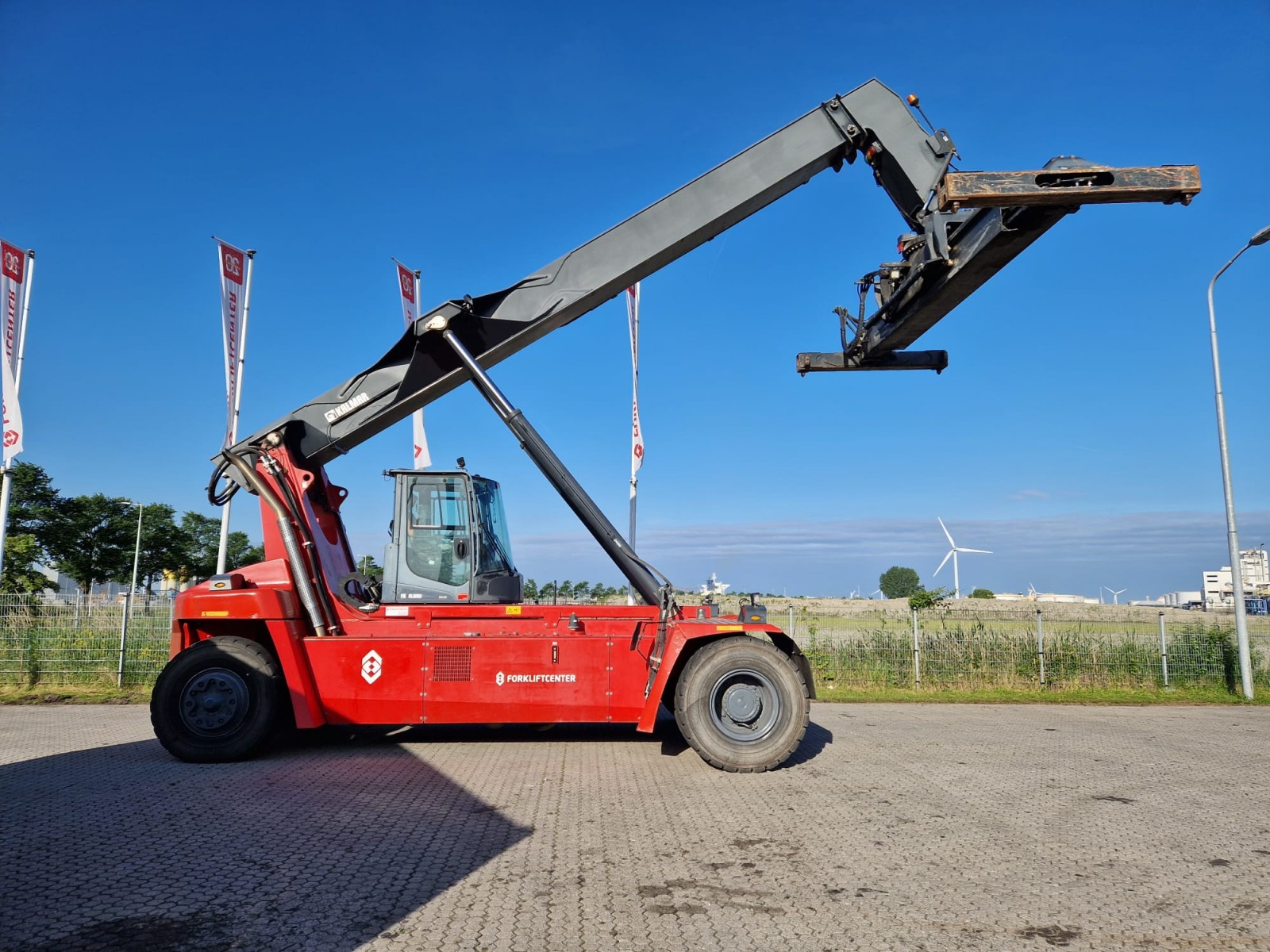

Reach stacker Kalmar DRG100-54S8

Technical specs - DRG100-54S8 Kalmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
10 t
Centre of gravity
700 mm
Standard tyres
10.00 × 24"
Max. Reach horizontal
4.05 m
Weight
40.3 t
Total width
4150 mm
Construction height
3270 mm
Lifting height
21.15 m
Travel speed with / without load
30/30 km/h
Turning radius
8.6 m
Wheel base
5.4 m
Model series
DRG
Engine manuf.
Volvo Penta/D8
Engine type
TAD-881-VE
Engine power
185 kW
Displacement
7.7 l
Max. torque
1160 Nm
No. of cylinders
6
Emission level
Euro V

More technical details, like: transmission type, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
