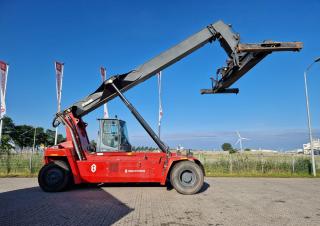

DRG100-54S6 Kalmar Reach Stacker Specs & Dimensions (2020 - 2026)

Loaded with productive versatility.

The Kalmar DRG100-120. With this reachstacker for empty and semi-laden container handling you get it all. The ability to handle all sorts of containers, flat racks and slunged loads up to 12 tonnes precisely and safely. The rotation necessary for efficient action in confined spaces. And the quality that makes your business prosper, both in the short and long term.

Everything within container handling

The Kalmar DRG100-120 has the capacity to handle all types of containers (standard ISO, reefers, tanks, specials and flat racks) and slunged loads up to 12 tonnes.

All common spaces

A reachstacker like the Kalmar DRG100-120 adds another dimension to empty container handling. Containers can be transported at full width, turned 45° or lengthwise at 90°, making it possible to deliver “end-on” into and through low workshop doors, port sheds and other tight openings. Operators don’t have to pick up containers right-angled, and can increase efficiency and handling speed during yard stacking, loading of road trucks or container repairs. Rotate, lift at a 45° angle, drive forwards or reverse with a full lift stroke, reach 6 or 8 containers high and work in second or third row. All this is possible – and easy. You can even do a unique 1,000 mm side shift and rotate the container so the door is on the right side. The Kalmar DRG100-120 is the only reachstacker for empty and semi-laden container handling on the market that can offer all of these smart functions.

All clear for efficient workshops

Service, maintenance and repair of containers and tank cleaning may be the lesser part of your operations. To further minimise your total cost of ownership, G-Generation reachstackers have a service life that’s longer than ever. The Kalmar DRG100-120 offers full flexibility with full rotation, large lifting height to allow you to both transport and perform services, maintenance, repairs and loading of workshop containers. Low and high containers can be handled as a front or rear reachstacker. Just turn the container around and drive inside.

Superior ergonomic design

The patented side-tilting steering wheel can be angled to the side or moved forwards slightly to avoid obstruction and increase comfort. It also provides better control of loads and allows new steering possibilities. The patented design includes a built-in directional shift knob (forward/reverse shifter) that stays firmly secured in position for smooth, safe directional changes while optimizing lifting capacity and ergonomically reducing arm fatigue. Additionally, the fully integrated, adjustable multi-seat provides the best possible sitting posture for long shifts and demanding operations. The ergonomically designed comfort pedals are floor-based to minimize strain on the foot while enabling hard driving. Our standard Climate package is the most powerful on the market, featuring the highest capacity heater, cooling, and filtered airflow for superior interior comfort.

Stay in control naturally

The main operation work console, switches and indicators for data display and machine control systems are logically organised and well placed within sight and reach. Fully equipped with electronic tools and an easy-to-use Kalmar Information Colour Display with intuitive Human-Machine Interface (HMI). All check-ups are easy to perform – you can see, hear, touch and react to inputs on the machine’s performance without losing focus on your load. The intuitive Head Up display allows you to monitor loading and unloading as symbols shift from green to yellow to red, showing the twistlock and support jack status.

Fully equipped – safe and sound

Our G-Generation reachstackers are safe machines and the Kalmar DRG100-120 is no exception. Extremely stable – it’s the only reachstacker on the market with the highest capacity 5.4 m wheelbase. It has the best combined lift capacity in rows 1-2-3, a smarter hydraulic system, side shift and 4 extra lift hooks, tilt and reverse tilts, twistlock status indicators, dual rotation motors and brakes, and a complete LED lamp kit as standard. Options include a Reverse Warning System with a detection range from 0.5 up to 9 metres and a Reverse Aid System for working in the dark. It offers the benchmark of the world’s best driver’s cabin, providing a working environment that keeps the operator comfortable, alert and in full control over all kinds of loads.

It's a new twist to productivity, efficiency and safety

We built the first commercial reachstacker thirty years ago. And we’ve been stacking up innovations ever since, constantly inspired by the challenges of cargo handling – and cargo handlers – across the world. Our G-Generation with the Kalmar DRG100-120 reachstacker is the latest development that takes productivity, efficiency and safety to a new level of excellence.

Delivering every day

Productivity & Performance, Best Lifetime Value, Safety & Ergonomics, Environmentally-Friendly are guiding stars at Kalmar, and have made our reachstackers the preferred choice in more than 160 countries.

10,000 good reasons to choose Kalmar

The Kalmar DRG100-120 is built on our latest technology platform, G-Generation, which is based on our experience from our more than 10,000 reachstackers sold. Our goal was to provide the most outstanding operator experience, the highest level of productivity and the best lifetime value. An ergonomic cabin, integrated components, an electrical control system, a high degree of automation and intuitive, digital interfaces are just a few of the standard features.

Boosting the core of efficiency

Reachstackers are only as good as their operators. So to make sure they can operate on a high level, we handle them with care. The EGO cabin of the Kalmar DRG100-120 offers an outstanding working environment and driving experience. The result is less downtime, fewer cargo damages and more alert, productive and healthy operators.

Experience the best

The EGO cabin is the result of our insight into operating conditions across the world, years of development and thousands of tests. It provides a seamless operating environment that minimises fatigue and enables optimal load handling.
