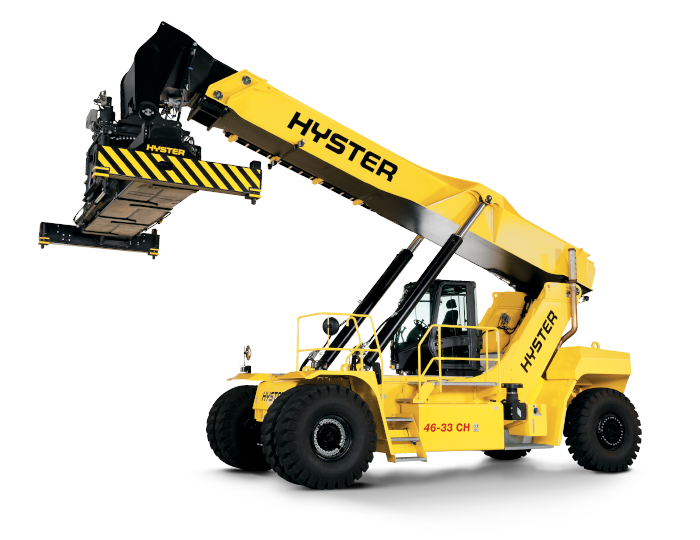

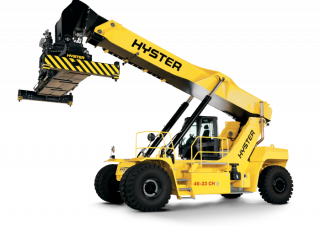

Hyster RS46-41LS CH
- Nominal load at COG:
- 46 t
- Centre of gravity:
- 1865 mm
- Standard tyres:
- Pneumatic. 18.00-33 36PR. x4 / 2
- Weight:
- 84.6 t
RS46-41LS CH Hyster Reach Stacker Specs & Dimensions (2019 - 2026)
Technical specs - RS46-41LS CH Hyster
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 46 t
- Centre of gravity
- 1865 mm
- Standard tyres
- Pneumatic. 18.00-33 36PR. x4 / 2
- Weight
- 84.6 t
- Total width
- 12200 mm
- Construction height
- 4795 mm
- Lifting height
- 15.36 m
- Travel speed with / without load
- 21/23 km/h
- Turning radius
- 9.3 m
- Wheel base
- 6.7 m
- Model series
- RS
- Engine manuf.
- Cummins
- Engine type
- QSL9
- Engine power
- 261 kW
- Displacement
- 8.9 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 1627 Nm
- No. of cylinders
- 6
- Emission level
- T4F
More technical details, like: transmission type, max. reach horizontal, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
