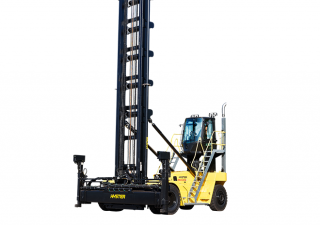

H200HD-EC7 Hyster Reach Stacker Specs & Dimensions (2019 - 2026)

Nominal load at COG: 9.1t – Centre of gravity: 1220mm – Standard tyres: Pneumatic. 14.00-24 24PR. x4 / 2 – Weight: 38.9t – Total w…

Nominal load at COG: 9.1t – Centre of gravity: 1220mm – Standard tyres: Pneumatic. 14.00-24 24PR. x4 / 2 – Weight: 38.9t – Total width: 4110mm – Construction height: 10795mm

Reach stacker H200HD-EC7 manufactured by Hyster, production years [(year-year)]. Explore detailed H200HD-EC7 container handler specs: technical details, table charts and data sheets to download. Check also the other container forklift models produced by Hyster.

Technical specs - H200HD-EC7 Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
9.1 t
Centre of gravity
1220 mm
Standard tyres
Pneumatic. 14.00-24 24PR. x4 / 2
Weight
38.9 t
Total width
4110 mm
Construction height
10795 mm
Lifting height
18.77 m
Travel speed with / without load
20/25 km/h
Turning radius
6.8 m
Wheel base
4.5 m
Model series
H
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
168 kW
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Max. torque
1040 Nm
No. of cylinders
6
Emission level
T4F

More technical details, like: transmission type, max. reach horizontal, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications, prices and weight refer to basic models incl. spreader
