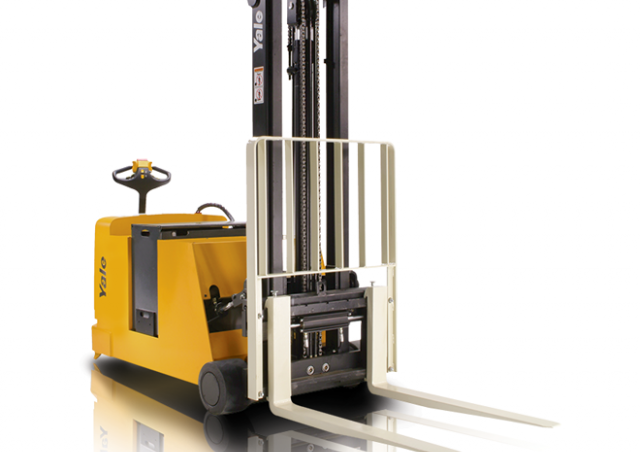

MCW025-E Yale Walkie Stacker Specs & Dimensions (2019 - 2026)

Electrical Components

Drive Motor: Vertically mounted on drive unit. Yale-built Class H motor is ball bearing equipped, series-wound with high starting torque. Hoist Motor: Ball bearing equipped, series wound motor with high starting torque. Wiring: Numerically coded for easy service. Wires in control handle are Teflon coated for durability and flexibility (to -40°C).

Drive Unit

Drive unit is mounted on a large-diameter, heavy duty steer bearing with three-point suspension to minimize mounting distortion or need for shimming. Bearing requires no adjustments, is greaseable and has shield on upper race. Double-reduction spiral-bevel drive gearing operates adjustment-free in a totally enclosed oil bath with all moving shafts supported by ball bearings. Drive wheel is bolted to axle flange permitting easy removal when required.

Additional Features

Standard equipment includes key/switch and electric horn push button mounted on steering handle. Lubrication fill and drain plugs provided. Drive unit mounting race and all frame lubricating points are equipped with high pressure grease fittings.

Driver Controller

The Curtis PMC Transistor unit provides smooth, totally stepless control of the truck’s travel speeds. The design provides 275 amps capability and features: fault detection and thermal protective slowdown; adjustment for plugging, current limit and acceleration; access forward and reverse contractor actuation and a static return-to-off system.

Hydraulic Components

Pump: High volume motor-driven gear type. Hoist Unit: A single centered high-lift cylinder design (large 63mm ID) with hard-chrome plated piston gives smooth lift action. Tilt Cylinders: Two rugged, double-acting, piston-type cylinders. Pivot-type mounting permits self alignment. Lower Control Valve: Allows controlled lowering speeds. Hydraulic Reservoir: Provides a large volume of oil, reducing oil heating and allowing higher system efficiency.

Safety

Yale industrial trucks are equipped with certain safety devices as standard equipment. For example, all high-lift trucks are furnished with a load backrest extension, and high-lift rider trucks come with an operator’s overhead guard, operator’s restraint, and vertical battery restraint. When remote elevating control is specified, an operator’s work platform is supplied. Yale will supply only trucks equipped with required safety devices and strongly urges that these trucks be operated with the safety devices supplied. Furthermore, Yale will not assume any liability for injuries or damage arising from or caused by the removal of any safety devices from any Yale product.

Brakes

Power is cut off and brake is applied when the steering handle is fully raised or lowered. The handle returns to the 2550-1E vertical position when released. The brake is an external constricting shoe type, spring applied, and can be visually inspected or quickly replaced.

Frame

Heavy gauge plate and bar steel frame is electrically welded into a unit structure for maximum rigidity and strength. Battery compartment is an integral part of the frame.

Options

12 volt PMC control Cold storage/corrosion protection Hour meter (Hobbs) Hour meter and discharge indicator with warning lamp (Curtis 802 R) Discharge indicator with warning lamp and lift interrupt (Curtis 933-1) Poly drive wheel (MCW025) Poly load wheel (MCW025-030) Sideshifter Push button lift and lower Battery compartment cover Battery rollers Rotary grip style control UL Classification Type EE
