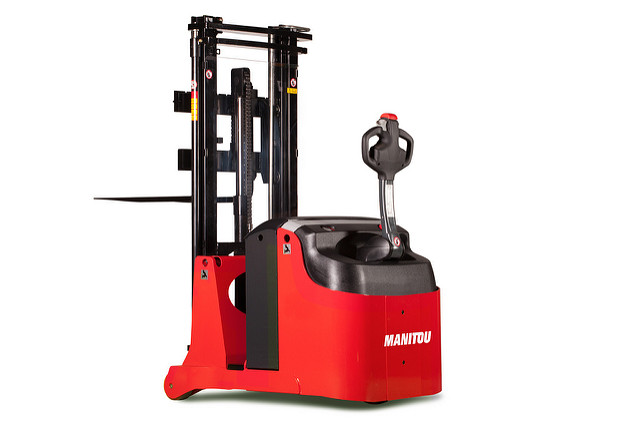

ES 504 GPF Manitou Walkie Stacker Specs & Dimensions (2012 - 2020)

Nominal load at COG: 0.3t – Wheel base: 0.747m – Transport length: 1.88m – Transport width: 0.923m – Transport height: 2.195m – Ce…

Nominal load at COG: 0.3t – Wheel base: 0.747m – Transport length: 1.88m – Transport width: 0.923m – Transport height: 2.195m – Centre of gravity: 400mm

ES 504 GPF walkie stacker manufactured by Manitou in (2012 - 2020). Explore detailed ES 504 GPF walk behind forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Manitou.

Pallet Stackers Walkie Stackers Manitou ES 504 GPF

Technical specs - ES 504 GPF Manitou

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
0.3 t
Wheel base
0.747 m
Transport length
1.88 m
Transport width
0.923 m
Transport height
2.195 m
Centre of gravity
400 mm
Lifting height
1.68 m
Traction motor
0.8 kW
Hoist motor
2 kW
Battery capacity
24/180 V/Ah
Weight
0.96 t
Battery weight
0.18 t
Travel speed with / without load
5.5/4.4 km/h
Hoisting with / without load
0.129/0.12 m/s
Lowering with load
0.187 m/s
max. climbing ability
8 %
Turning radius
1.047 m
Model series
ES

Special equipment

Double lift
No
Initial lift
No
Platform foldable
No
Scissor lift
No
