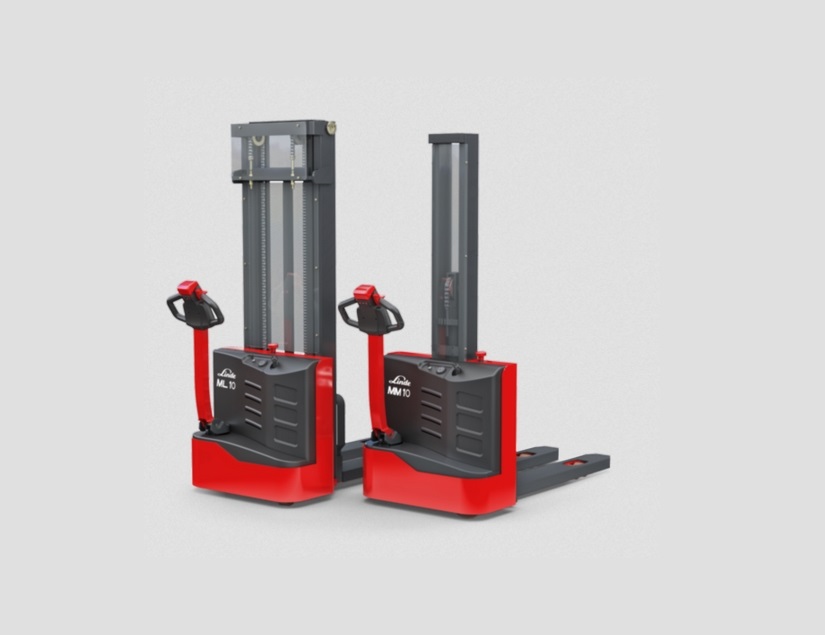

ML10 Linde Walkie Stacker Specs & Dimensions (2022 - 2026)

Braking system

Highly efficient electromagnetic brake applied by moving the tiller to fully up or down position Automatic braking on releasing traction butterfly or reversing direction Truck slows before coming to a stop, remaining under total control at all times Proofed emergency button

Safety

The guards of the off-centred tiller head effectively shield the operator’s hands and keep him safely within the truck’s contours with excellent visibility through the mast. The long, low mounted tiller arm places the operator at a safe yet comfortable working distance. The MM10 and ML10 also feature an effective parking brake to hold the truck safely on slopes.

Performance

The MM10 is an ideal stacker for light duty applications such as order picking and pallet handling. This monomast stacker also includes an initial lift version for additional versatility particularly on gradients. The ML10 is perfect for use as a work bench in manufacturing or maintenance applications. Thanks to the wide choice of mast lift heights, the ML10 offers a highly cost-effective and productive solution for many applications combined with occasional stacking of loads up to 1000 kg.

Reliability

The durable drive unit of the MM10 and ML10 delivers consistent high performance and reliability. The robust chassis has a reinforced fork structure for safe, efficient handling of loads up to 1000 kg. There is a battery discharge indicator with an automatic cut-off when the battery needs to be charged and an emergency isolator button for safety.

Chassis

Robust metal cover protects drive system and components Low chassis skirt protects operator’s feet Long, low mounted tiller ensures operator is safe yet comfortable distance from the truck Rugged, reinforced fork structure provides safe handling of loads up to 1000 kg.

Service

The DC drive motor optimizes uptime between routine service periods and reduces service costs, while a reliable, energy efficient controller delivers smooth handling performance. Fast, easy access to all internal components ensures service tasks are completed with a minimum of delay. Main components are easily accessible by simply removing the motor service panel. The general arrangement of the technical components has been designed to minimize the number of wires.

Comfort

When used as a work bench, the ML10 eliminates any back strain as components or raw materials do not need to be lifted off the ground and the forks can be raised to a comfortable working height. The dual butterfly controls on the ergonomic tiller head ensure precise traction and lift operation with either hand. A built-in charger enables opportunity charging at any convenient power point for optimum uptime.

Controls

Traction and lift controls grouped on ergonomic tiller head Dual butterfly control levers for use with either hand Belly switch on tiller head stops truck when actuated

Operator compartment

Reliable and precise battery discharge indicator Operating hour meter Built-in charger enables opportunity charging at any convenient power point Key switch
