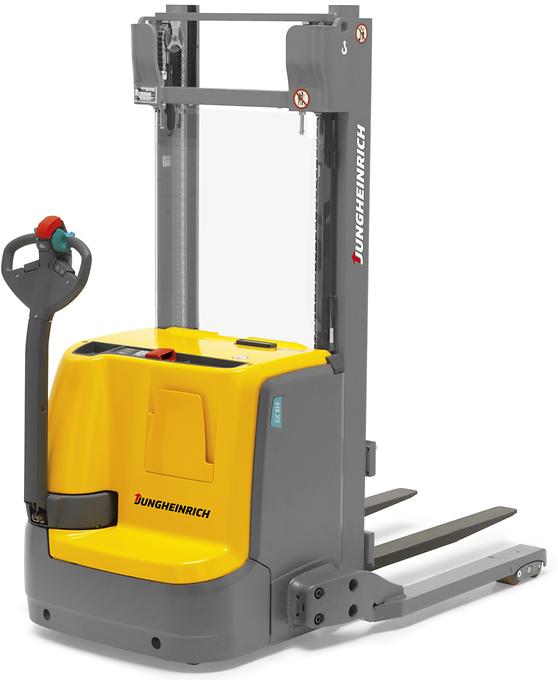

EJC B20 Jungheinrich Walkie Stacker Specs & Dimensions (2017 - 2022)

Intelligent control and drive technology

Our 3-phase AC technology motors offer you more power and performance while, at the same time, reducing operating costs. The advantages are: High efficiency levels with excellent energy management. Powerful acceleration. Rapid direction change. speedCONTROL: Roll-back protection on gradients. No carbon brushes: The drive motor is maintenance-free.

Designed for easy servicing

Drive motor panel is easy to open with only 2 screws. Service access ports on front apron. Simple and quick changing of load rollers with patented tandem load wheel rocker. Load rollers protected against impact.

Flexible and safe operation

The EJC B12/B14/B16/B20 has an ISO fork carriage for a variety of adjustable options for different uses/loads - from forged forks with different dimensions to assembling attachments with hydraulic function, for example (optional). High travel stability due to laterally offset support arms in 3 truck widths: 1100 mm, 1270 mm, 1470 mm. The operator remains safely within the truck contours during travel in drive direction.

Safe and comfortable stacking and retrieval

All lifting and lowering functions are conveniently controlled from the multifunctional tiller arm. This allows the operator to concentrate fully on stacking and retrieving. Other safety features that make working safe and efficient include: Precise, sensitive load lifting by speed controlled and noise-reduced hydraulic motor. Gentle depositing of loads using proportional hydraulics. Additional reduction of travel speed from lift heights of approx. 1800 mm. Long tiller provides safe distance between operator and truck. Four-wheel concept for high stability. Electric tiller steering for fatigue-free steering in any situation (optional for EJC B14/B16/B20).

Additional equipment

Cold store version. Load guard available in different heights. Especially slow and sensitive load lowering.
