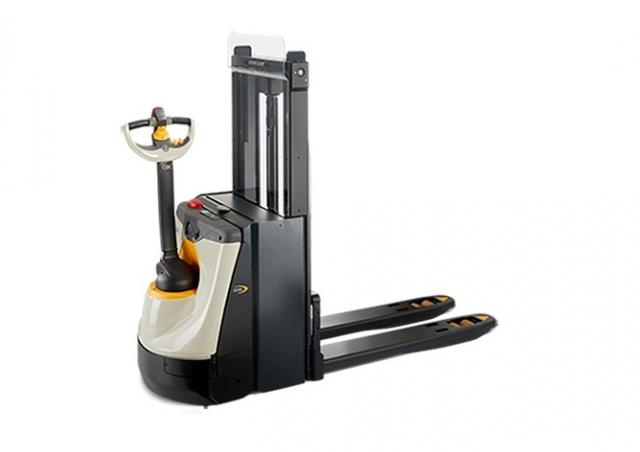

DS 3040-2.0 Crown Walkie Stacker Specs & Dimensions (2020 - 2022)

Standard Equipment

Maintenance free 3-phase (AC) traction. e-GEN Braking System offers regenerative and frictionless electric braking. Mechanical braking applies only as parking brake. The X10 Control Handle places all truck functions at the operator’s fingertips. Crown Access 1 2 3 Comprehensive System Control (DT) LCD display Hour meter Keyless start up with PIN code Start up and run time diagnostics Battery discharge indicator and lift interrupt 3 selectable traction performance profiles Onboard diagnostics with real time troubleshooting capabilities. FlexRide reduces vibrations and shocks to a minimum by combining (foldable platform only) Soft floor mat with integrated presence sensor Advanced platform suspension Fully suspended drive unit.

CAN-Bus Technology

CAN-Bus technology (DT) Heavy-duty side restraints with soft side pads and quick-exit feature (foldable platform only) Electric power disconnect switch (DT) Vulkollan drive tyre, castor wheels and load wheels Single load wheels Ramp hold Battery connector - DIN 160A (DT) - SBE 160 red (DS) Easily removable steel covers Hinged steel top battery cover for easy battery access Rabbit/turtle switch incorporates two levels of programmable travel performance Proportional lifting/lowering Heavy-duty castor wheels (DT) Fully suspended drive unit (DT) Soft floor mat with integrated presence sensor (platform trucks only) Pallet stop at initial lift for quick double stacking Battery compartment rollers for horizontal battery removal (DT) Plexiglas mast guard Battery discharge indicator with lift lockout and integrated hour meter and fault code readout (DS) Fork tip indicators.

Electrical

A heavy-duty 24 volt fused electrical system provides optimal travel and lift speed. Virtually maintenance-free AC traction motor provides strong acceleration and control at any speed. The DT 3000 Series is equipped with sensors which monitor functional parameters including steering, load weight, height, drive mode and speed, and adjusts operational settings automatically to suit conditions.

e-GEN® Braking System

The power of the high-torque AC traction motor is used to stop the truck and keep it static until a travel input is requested, even when operating on a gradient. This system eliminates adjustments and wear points for a lifetime of maintenance-free use. An automatic parking brake activates if the truck is stopped and the operator leaves the platform or power is disconnected.

Operator Controls

The X10 Control Handle, designed for simultaneous operation of all functions with one hand, improves side-stance operation for maximum visibility in both driving directions. An ergonomic forward/reverse thumb wheel allows for precise manoeuvring. The hand grips are urethane covered for insulation from cold and vibration with integrated horn buttons for easy activation. A rabbit/turtle switch incorporates two levels of programmable travel performance so operators can select the setting that matches their experience level or application requirements.

Access 1 2 3 Comprehensive System Control (DT)

Crown’s Access 1 2 3 technology provides optimum performance and control by offering a communications interface for the operator and service engineer, intelligent coordination of lift truck systems and simplified service with advanced diagnostics. The display includes a full featured on-board service tool so service engineers can actively view inputs and outputs during truck operation. No laptop or service terminal is required. Event code history, including the last 16 events, is accessible through the display. The display provides a convenient interface for operators, keeping them informed of meter (hour meter, BDI, operator messages, service codes) of any changes impacting truck performance and allowing them to choose from three performance profiles when enabled. Performance tuning can be accessed at the display to customise truck performance for specific applications or operator requirements. In addition, up to 25 PIN codes can be assigned to individual operators and matched to one of the pre-programmed performance profiles if desired.
