Technical specs - ESM Still

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1 t
Wheel base
0.97 m
Standard tyres
2/1x
Transport length
2.402 m
Transport width
0.85 m
Transport height
2.123 m
Centre of gravity
600 mm
Lifting height
1.6 m
Traction motor
2.2 kW
Hoist motor
3 kW
Battery capacity
24/420 V/Ah
Weight
1.98 t
Battery weight
0.39 t
Travel speed with / without load
8/9 km/h
Hoisting with / without load
0.17/0.27 m/s
Lowering with load
0.3 m/s
max. climbing ability
15 %
Turning radius
1.114 m
Model series
ESM

Special equipment

Double lift
No
Initial lift
No
Platform foldable
No
Scissor lift
No

Download datasheets (PDF)

Still ESM overview

Drive

Standard equipment

2.2 kW drive motor. 3.0 kW lift motor. Intuitive joystick control. Hydrostatic power steering. Battery change over the side. Combination of electric brake (rear), mechanical brake (front) and automatic parking brake. Adjustable working position for the driver. Free-view mast for lift heights up to 5,300 mm. Overhead guard with large windows. Hydraulic height-adjustment of the stand-on platform. Fork length; 1,150 mm.


Special equipment

Different mast types for lift heights up to 1,600 mm, 3,520 mm or 5,253 mm. High performance battery with up to 465 Ah. On-board charger. Container and cold store version. Low closed mast height. Side shift. Additional hydraulic functions. Tilting fork carriage. Driver restraint system. Load rest. Position indicator for drive wheel.


Handling

Special characteristics

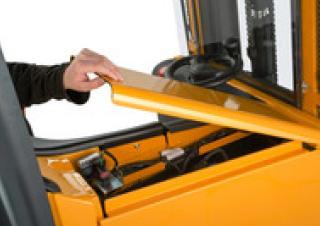

Ergonomically designed workspace for the operator with many storage compartments. Progressive, digital control system for driving and lifting movements. Very compact chassis with rounded edges. Mast, chassis and overhead guard are connected to form a structural element for maximum mechanical stability. The controls can be parameterised according to individual customer wishes. Sensitive lift control with proportional valve. Single-piece cover for easy access to all components facilitating service and maintenance. Drive stand arranged sideways for best panoramic visibility. No straddle arms to facilitate stacking and destacking of goods and to transport closed load carriers. +92 degree steering angle for extreme agility.
