V48V Std. Linde Order Picker Specs & Dimensions (2019 - 2023)

Nominal load at COG: 1.2t – Wheel base: 1.503m – Pallet length: 1.2m – Pallet width: 0.8m – Transport length: 3.02m – Transport wi…

Nominal load at COG: 1.2t – Wheel base: 1.503m – Pallet length: 1.2m – Pallet width: 0.8m – Transport length: 3.02m – Transport width: 1.08m

V48V Std. order picker model manufactured by Linde in (2019 - 2023). Explore detailed V48V Std. cherry picker forklift specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

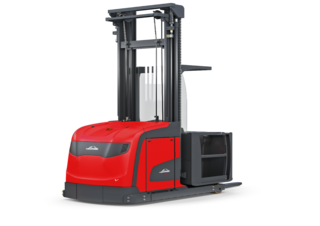

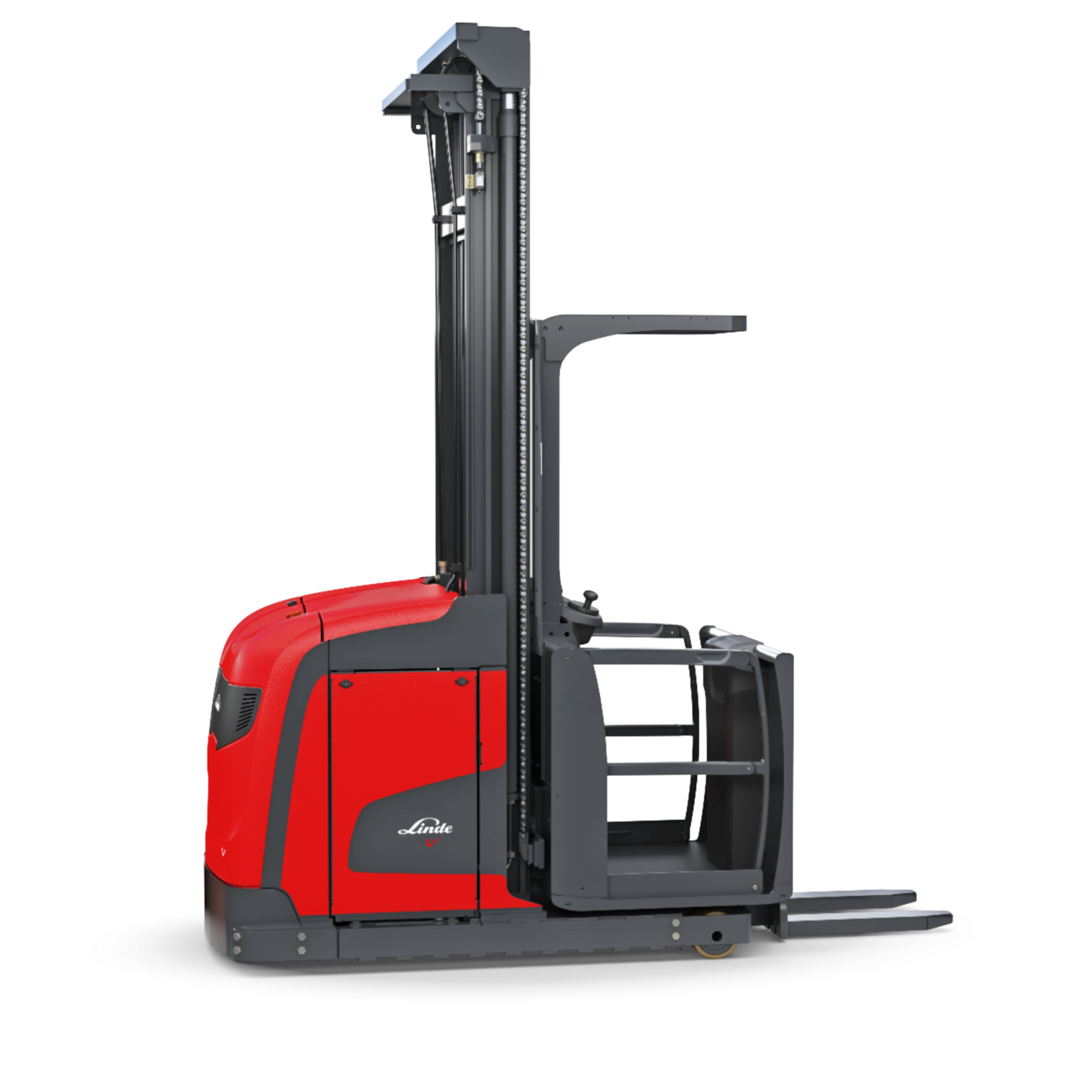

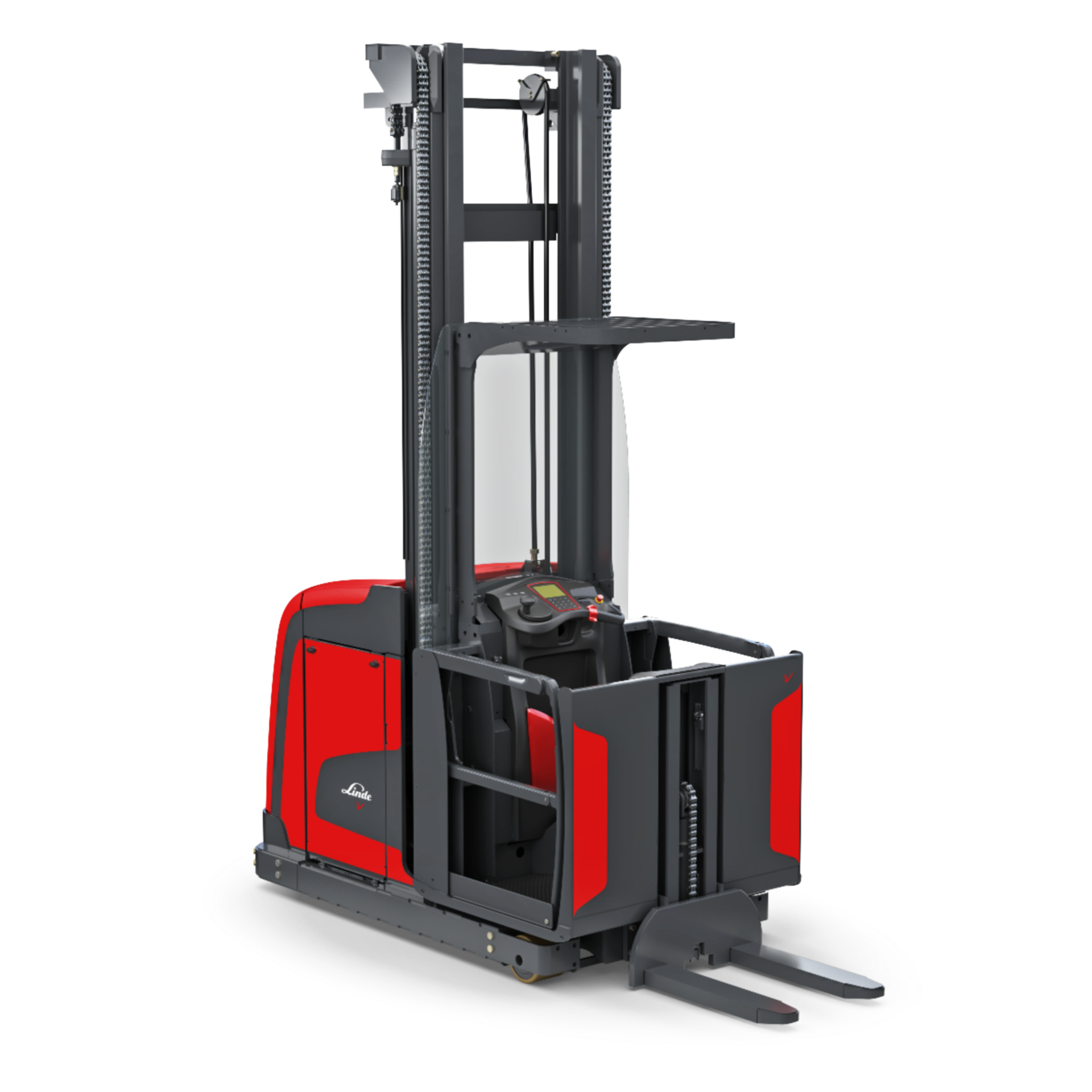

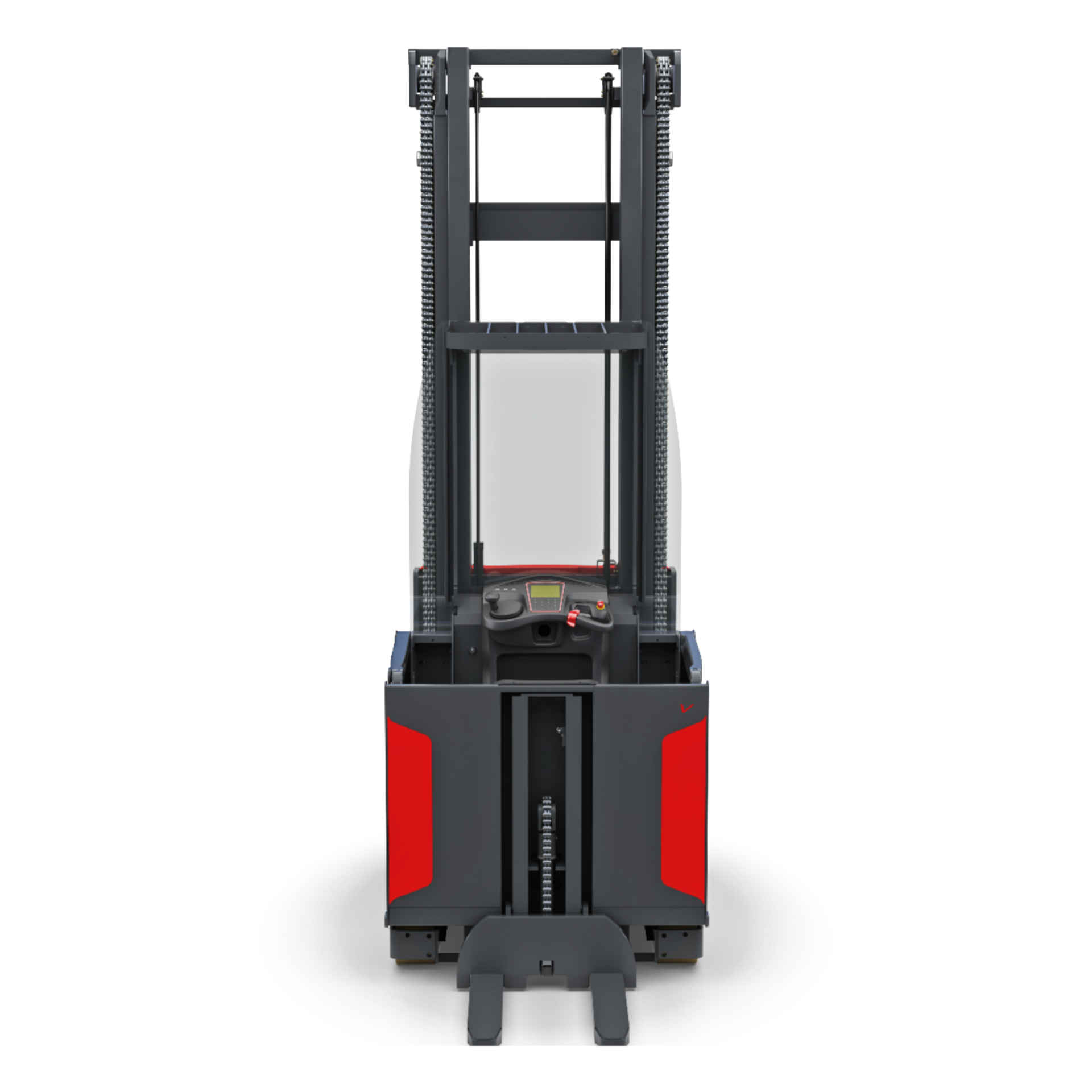

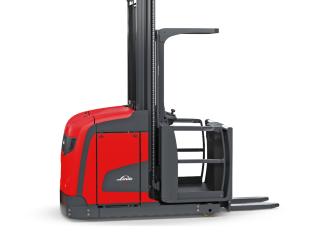

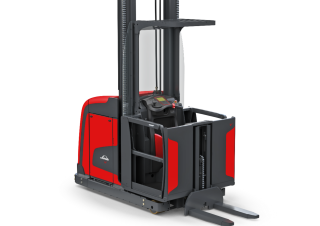

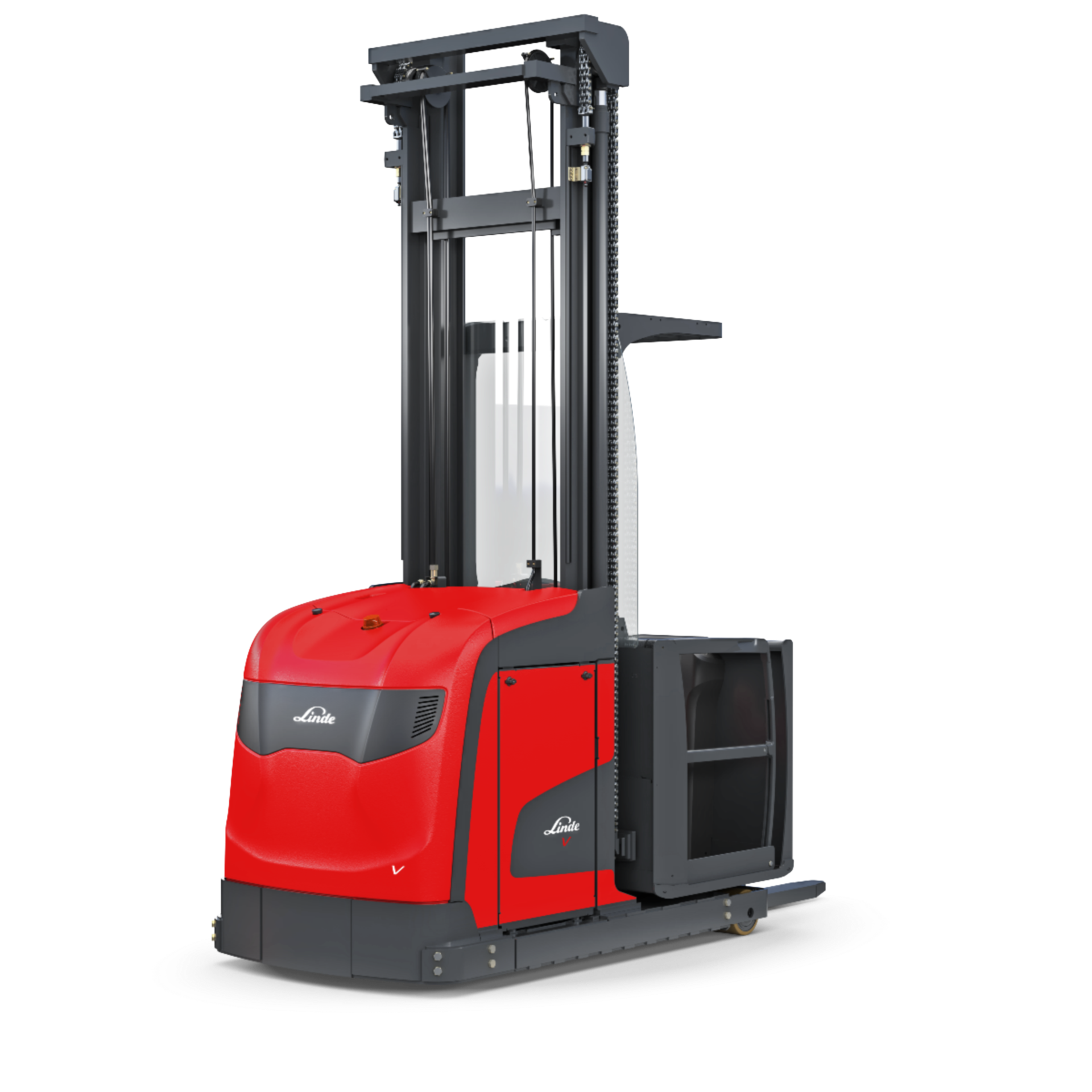

Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.
Order Pickers & Cherry Picker Forklifts Linde V48V Std.

Technical specs - V48V Std. Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.2 t
Wheel base
1.503 m
Pallet length
1.2 m
Pallet width
0.8 m
Transport length
3.02 m
Transport width
1.08 m
Transport height
3.9 m
Aisle Width
1.38 m
Lifting height
5.73 m
Centre of gravity
400 mm
Traction motor
6.5 kW
Hoist motor
11.5 kW
Weight
4.15 t
Battery weight
0.933 t
Battery capacity
48/620 V/Ah
Travel speed with / without load
11 km/h
Hoisting with / without load
0.36/0.36 m/s
Lowering with load
0.32 m/s
Turning radius
1.87 m
Model series
V

Special equipment

Initial lift
No
Scissor lift
No
Lifting platforms
No

Download datasheets (PDF)

Linde V48V Std. overview

Handling

Safety

The V range truck is designed to guarantee the operator’s safety in all conditions while driving, lifting and order picking. Its outstanding visibility through and to either side of the mast offers the highest level of security. The low cab step height increases safety, while the 2 integrated touch sensors on the control panel ensure the two-handed operation. The LSC monitors driving, lifting and steering movements and lowers their performance automatically, if needed.


Comfort

Entering the cabin of the V range truck and stepping onto the low cab floor level gives the operator the feeling of comfort and wellbeing from the first second. The wide variety of options allows the truck to be equipped for every kind of order picking application. No matter whether it is lifting or lowering, driving or at halt, the cabin of the V range truck is always strong, gentle and steady.


Performance

Performance

High power and high performance describe the V range order picker. It is capable of picking at heights up to 12,000 mm. Its powerful AC drive units combine optimum performance with energy efficiency. The modular design of the V range and Linde options allow the truck to exactly match the application requirements. It can be used for picking from the first rack level or for picking pallets from the back of the pallet.


Productivity

The unique modular design concept of the V modular ensures that each truck can be tailored to match the application precisely in order to maximize its productivity at all times. Based on the latest ergonomic standards, the working environment and the controls allow the operator to maximize throughout.
