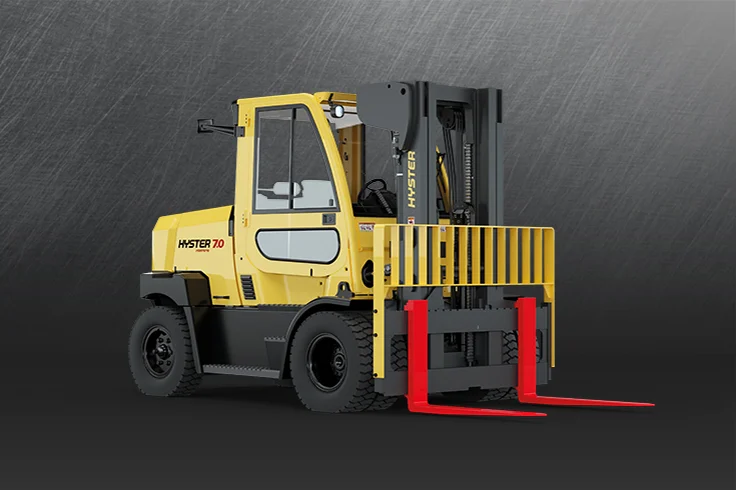

    Hyster H7.0FTS Specifications & Technical Data (2022-2022)

    Rate this machine now!

    Nominal load at COG: 7t – Standard tyres: 8.25x15 14PR/8.25x15 14PR – Centre of gravity: 600mm – Weight: 10.191t – Total width: 2082mm – Construction height: 2540mm

    Technical specs - H7.0FTS Hyster

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 7 t
    • Standard tyres 8.25x15 14PR/8.25x15 14PR
    • Centre of gravity 600 mm
    • Weight 10.191 t
    • Total width 2082 mm
    • Construction height 2540 mm
    • Turning radius 3.08 m
    • Lifting height 2.94 m
    • Travel speed with / without load 24,5/25,9 km/h
    • Hoisting with / without load 0,46/0,52 m/s
    • Lowering with load 0.58 m/s
    • max. climbing ability 32 %
    • Engine manuf. PSI
    • Engine type N/a
    • Engine power 71.6 kW
    • Displacement 4.3 l
    • Revolutions at max torque 2400 rpm
    • Max. torque 285 Nm
    • No. of cylinders 6
    • Transmission type ###
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###
    • Emission level ###

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
