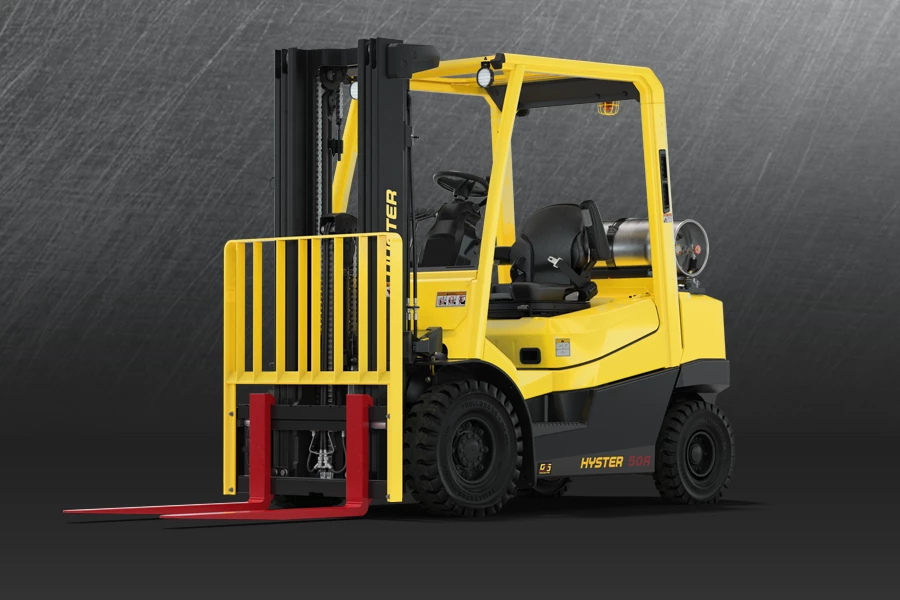

H40A Hyster LPG Forklift Specs & Dimensions (2024 - 2026)

Nominal load at COG: 1.814t – Centre of gravity: 610mm – Standard tyres: 7.00-12 / 6.00x9 – Weight: 3.48t – Total width: 1205mm – …

Nominal load at COG: 1.814t – Centre of gravity: 610mm – Standard tyres: 7.00-12 / 6.00x9 – Weight: 3.48t – Total width: 1205mm – Construction height: 2175mm

Hyster is the manufacturer of the H40A LPG forklift. The production years for this model are (2024 - 2026). Find here detailed specs for H40A LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Hyster.

LPG Forklifts Hyster H40A

Technical specs - H40A Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.814 t
Centre of gravity
610 mm
Standard tyres
7.00-12 / 6.00x9
Weight
3.48 t
Total width
1205 mm
Construction height
2175 mm
Turning radius
2.285 m
Lifting height
2.15 m
Travel speed with / without load
18/19 km/h
Hoisting with / without load
0.51/0.54 m/s
Lowering with load
0.43 m/s
max. climbing ability
45 %
Model series
H
Engine manuf.
Yanmar
Engine type
4TN88G
Engine power
42 kW
Displacement
1.9 l
Revolutions at max torque
2530 rpm
Max. torque
174 Nm
No. of cylinders
4

More technical details, like: transmission type, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
