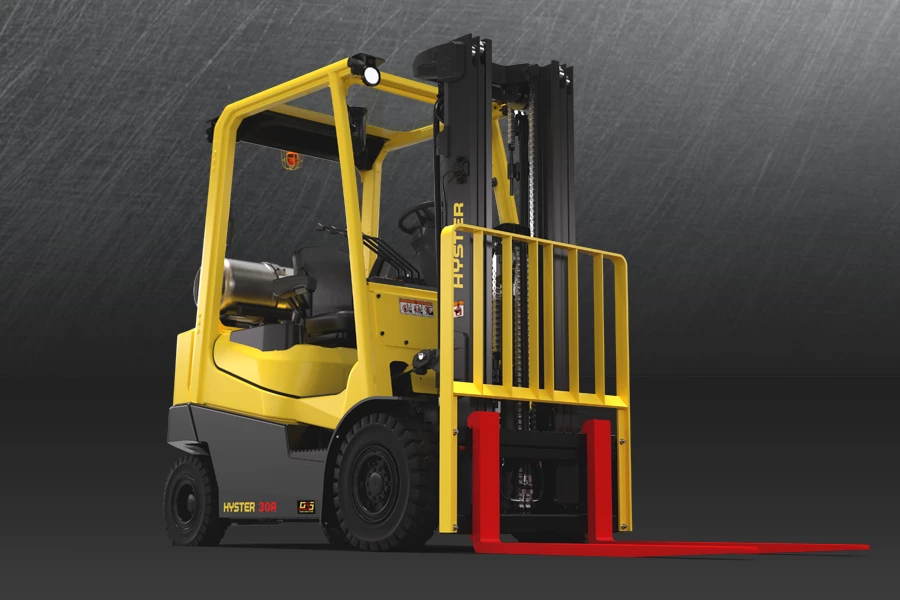

Hyster H35A
- Nominal load at COG:
- 1.59 t
- Centre of gravity:
- 610 mm
- Standard tyres:
- 6.50-10 / 5.00-8
- Total width:
- 1070 mm
H35A Hyster LPG Forklift Specs & Dimensions (2024 - 2026)
Technical specs - H35A Hyster
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal load at COG
- 1.59 t
- Centre of gravity
- 610 mm
- Standard tyres
- 6.50-10 / 5.00-8
- Total width
- 1070 mm
- Construction height
- 2215 mm
- Turning radius
- 2.066 m
- Lifting height
- 2.158 m
- max. climbing ability
- 46 %
- Model series
- H
- Engine manuf.
- Yanmar
- Engine type
- N/a
- Engine power
- 42 kW
- Displacement
- 2.2 l
- Revolutions at max torque
- 2530 rpm
- Max. torque
- 174 Nm
- No. of cylinders
- 4
More technical details, like: transmission type, weight, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.
L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
