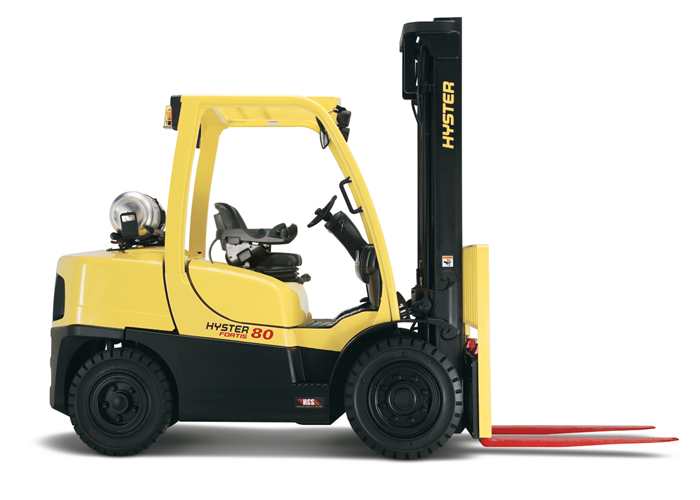

H110FT Hyster LPG Forklift Specs & Dimensions (2019 - 2026)

H80-120ft series

The H80-120FT is more than just a lift truck series. It represents a transformation in how lift trucks are designed, built and offered. Drawing on Hyster Company's legacy of strength, durability and toughness, Fortis lift trucks provide a simplified approach to purchasing through a series of engine-transmission combinations. Fortis means you maximize your purchasing power by buying only the features you need for your application. Using a truck from the H80-120FT series means low cost of operations, dependability and owning a unit that’s still going strong long after the day’s work is done. The H80-120FT series is configured to provide the right lift truck for your application. Multiple powertrain combinations are available to choose from to help reduce your total cost of operations. Each configuration offers efficiency, advanced dependability and simple serviceability.

Decrease Downtime by Up to 30%

Most industrial lift truck downtime results from problems with the powertrain, brakes, electrical system, cooling system or hydraulic system. Advanced design of the H80-120FT truck series has reduced downtime by up to 30%.

Significant Savings in Ownership Costs Per Lift Truck – Each Year.

Lowering operating costs in all types of applications is what the Fortis series does best. With decreased downtime, this lift truck is an exceptionally smart choice. The H80-120FT series is configured to provide improved efficiency, while enhancing reliability and superior serviceability to reduce your operating costs.

Hyster Stability System

Our patented Hyster Stability System (HSS) is built into the fundamental design of every truck—not “added on” like other manufacturers—to allow for articulation on uneven surfaces and to minimize truck lean for enhanced lateral stability. Unlike some competitors, the HSS is virtually maintenance-free.

Hassle-Free Hydraulics

Leak-free O-ring face seal fittings reduce leaks for enhanced reliability. A 10-micron high-performance in-tank filtration system captures 99.5% of hydraulic system debris, significantly extending component life. Smart placement of the control valve and hydraulic lines away from heat sources reduces operating temperature, extending the life of seals and hoses for unbeatable reliability. Optional load-sensing on-demand hydraulic system delivers oil flow only when required, using less fuel and producing less heat while extending system life.

Cooling Technology

A choice of 2 aluminum core radiators, each with significant design and component improvements, provides exceptional cooling capacity – a key factor to increasing uptime and the economic life of your trucks. Soft rubber isolator mounted radiators increase reliability and durability to extend service life. A superior counterweight tunnel design coupled with a “pusher” type fan and enhanced shroud design improves airflow and reduces the recirculation of hot air to maximize cooling capabilities. Combi-cooler radiator provides 4-row aluminum core for additional transmission oil cooling capacity for the most demanding and intensive applications. Optional on-demand cooling system: – Reduces overheating. – Automatically reverses fan direction every 20 minutes to clear radiator of debris. – Extends overall truck service life by keeping major components running in their optimum temperature ranges. – Diesel radiators for diesel powertrains feature air to air intercoolers to increase efficiency and reduce emissions.

Full Venting Package

The full venting package features additional vented radiator and side covers. Increased air flow is drawn into the engine compartment from a higher position on the truck where the air is cleaner, resulting in reduced ingestion of dirt and debris into the engine compartment and radiator, reducing downtime used to clean radiators.

On-demand cooling system

The on-demand cooling system controls the speed and rotational direction of the fan. During normal operation, the fan reverses direction automatically for 20 seconds every 20 minutes. When necessary, a manual control button allows the operator to initiate a reversal manually. Greatly reduces overheating, and can eliminate overheating if properly maintained. Reduces debris vacuuming that can clog the radiator. Increases fuel efficiency. Maintains optimum powertrain temperatures. Lowers fan speeds, reducing noise levels. Can eliminate downtime spent cleaning debris from the radiator.

On-demand hydraulic system

The optional on-demand hydraulic system introduces a more efficient and intelligent way to meet the truck’s hydraulic load demands. Featuring Variable Displacement Pump (VDP) technology, the pump produces oil flow only when needed. The system minimizes the amount of engine power required, resulting in up to 22% greater fuel economy and reduced system temperatures. The on-demand hydraulic system is included with optional TouchPoint mini-lever electro-hydraulic controls.

Optional paper application kit

The Paper Application Kit is available with models equipped with a Kubota LPG or Diesel engine. Recommended for any truck used in an application where substantial loose paper material is present, this configuration reduces the accumulation of paper debris in the engine compartment, thereby reducing the potential for fire. The optional kit includes: Full venting package High-temperature hydraulic oil Reduced displacement hydraulic pump Exhaust wraps On-demand cooling system (recommended)

Advanced Dependability

Standard wet disc brakes are completely sealed from water and dirt, ideal for heavy duty applications. Electronically controlled transmissions reduce shock loading; include clutch packs with 3 times the life and 15% stronger gears and shafts over previous designs; and incorporate Hyster premium force-cooled wet disc brakes, all working to provide unmatched reliability. CANbus communications, non-mechanical sensors and switches and IP66 rated sealed connections mean electrical problems are a thing of the past. Leak-free O-ring face seal fittings at all high pressure connection points, superior filtration (10 micron) system and smart placement of valve and lines take the worry out of hydraulics.

Focused on productivity

Two transmission selections are available: Electronic Powershift and DuraMatch™. The Electronic Powershift features electronic shift control, electronic inching (requires no adjustment), and heavy duty clutch packs. The DuraMatch™ transmission also features Auto Deceleration System—bringing the unit to a complete stop when the accelerator pedal is released, and controlled power reversals—reducing tire spin by precisely regulating engine speed. Controlled ramp descent limits roll to three inches per second. Both Electronic Powershift and DuraMatch™ transmissions are also available with two forward speeds for additional speed and gradeability.

Hyster variable power technology

Hyster Variable Power Technology provides adjustable performance modes that allow customers to maximize productivity or fuel economy to fit their specific application requirements. With two selectable performance modes, the H80-120FT series can be tailored to achieve a balance of enhanced performance and superior fuel economy, or to maximize productivity during peak business periods when moving more loads is integral to the success of your operation.

Pacesetter vsm

The computer “brain” of the Fortis line of lift trucks manages all vehicle systems to optimize performance and significantly increase overall reliability and enhance diagnostic capabilities for maximum uptime.

Fatigue-reducing operator compartment

The Fortis H80-120FT series features an ergonomically designed operator compartment that plays a big role to enhance overall productivity. Superior ergonomic features like ample leg room, 2 choices of hydraulic controls, an infinitely adjustable steer column, integrated dashboard display, 12-inch steering wheel with spinner knob, Auto Deceleration System, 6 choices of seats and optional rear drive handle and EZXchange bracket enable your operator to maximize productivity.
