H1.6A Hyster LPG Forklift Specs & Dimensions (2022 - 2026)

Nominal load at COG: 1.6t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 2.933t – Total wi…

Nominal load at COG: 1.6t – Centre of gravity: 500mm – Standard tyres: SE 2x/2 – Transmission type: EW – Weight: 2.933t – Total width: 1070mm

Hyster is the manufacturer of the H1.6A LPG forklift. The production years for this model are (2022 - 2026). Find here detailed specs for H1.6A LPG powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Hyster.

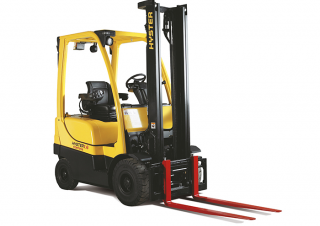

LPG Forklifts Hyster H1.6A

Technical specs - H1.6A Hyster

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
1.6 t
Centre of gravity
500 mm
Standard tyres
SE 2x/2
Transmission type
EW
Weight
2.933 t
Total width
1070 mm
Construction height
2150 mm
Turning radius
2.053 m
Lifting height
2.96 m
Travel speed with / without load
20 km/h
Hoisting with / without load
0,6/0,61 m/s
Lowering with load
0,58/0,47 m/s
max. climbing ability
28 %
Engine manuf.
Yanmar
Engine type
4TN88GN
Engine power
34.8 kW
Displacement
2.19 l
Revolutions at max torque
2400 rpm
Max. torque
168/1200 Nm
No. of cylinders
4
Emission level
V

More technical details, like: model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
