H60D Triplex Linde Diesel Explosion Proof Forklift Specs & Dimensions (2017 - 2025)

Name: Linde H60D Triplex Diesel Explosion Proof Forklifts
Brand: Linde

Nominal load at COG: 6t – Centre of gravity: 600mm – Standard tyres: 2x/2 – Transmission type: HY – Weight: 10t – Total width: 190…

Nominal load at COG: 6t – Centre of gravity: 600mm – Standard tyres: 2x/2 – Transmission type: HY – Weight: 10t – Total width: 1900mm

H60D Triplex diesel powered explosion proof forklift model manufactured by Linde in (2017 - 2025). Explore detailed H60D Triplex diesel explosion protected lift truck specs: technical details, table charts and data sheets to download. Check also the other models produced by Linde.

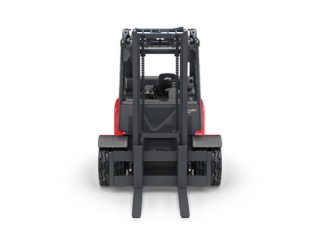

Explosion Proof Forklifts Diesel Explosion Proof Forklifts Linde H60D Triplex

H60D Triplex

Years of manufacture: 2017—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - H60D Triplex Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 6 t

Centre of gravity: 600 mm

Standard tyres: 2x/2

Transmission type: HY

Weight: 10 t

Total width: 1900 mm

Construction height: 2735 mm

Lifting height: 6 m

Turning radius: 3 m

Travel speed with / without load: 22/23 km/h

Hoisting with / without load: 0.54/0.54 m/s

Lowering with load: 0.54 m/s

max. climbing ability: 36 %

Model series: 396

Engine manuf.: Deutz

Engine type: TCD 4.1 L4

Engine power: 85 kW

Displacement: 4.038 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: Tier4f

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

Download datasheets (PDF)

Linde H60D Triplex overview

Engine

Reliability

50 years of continuous development of the original Linde hydrostatic system are combined with robust industrial engines. The focus is absolute reliability, high power output, and the best performance for the toughest pumping. Additionally, it is designed for ease of operation in various applications.

Handling

Safety

The forklift's weight ranging from 5,000 to 8,000 kg, the small parts and components are well protected by the Linde Protector Frame. The truck's top-mounted tilt cylinders, together with the torsion-resistant mast design, provide excellent visibility and high residual capacity. The torsion support on the front axle further increases the truck's lateral stability and makes it even more suitable for use on uneven surfaces.

Performance

Diesel and LPG engine power with the new Linde hydrostatic drive technology easily powers diesel and LPG trucks. The engine combined with the original Linde load control are the components that make it possible to perform effectively every day, at the first shift.
