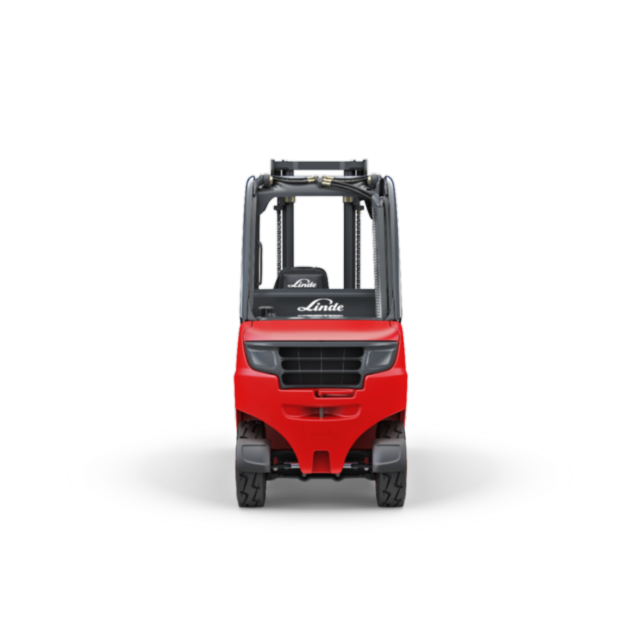

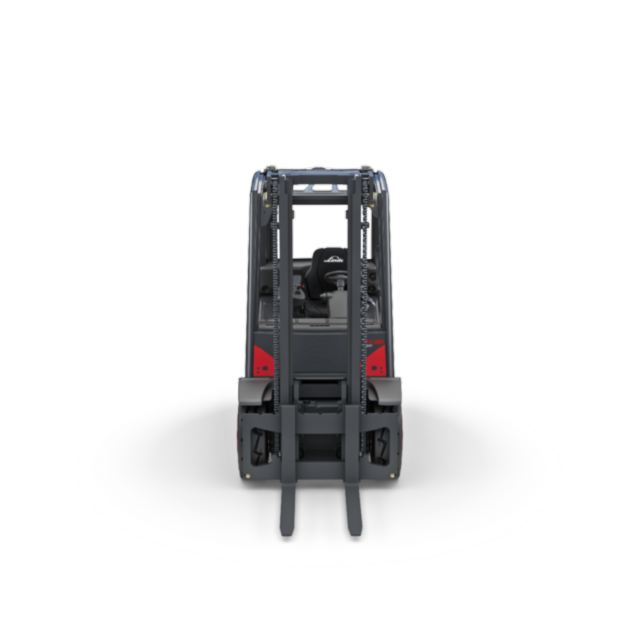

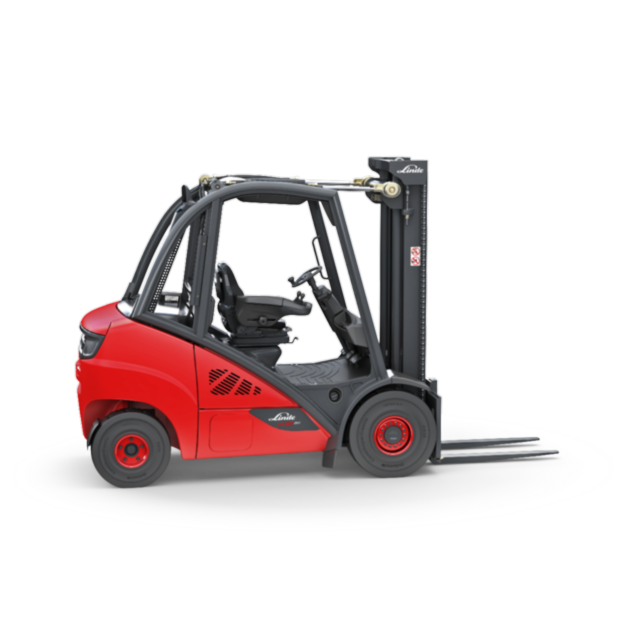

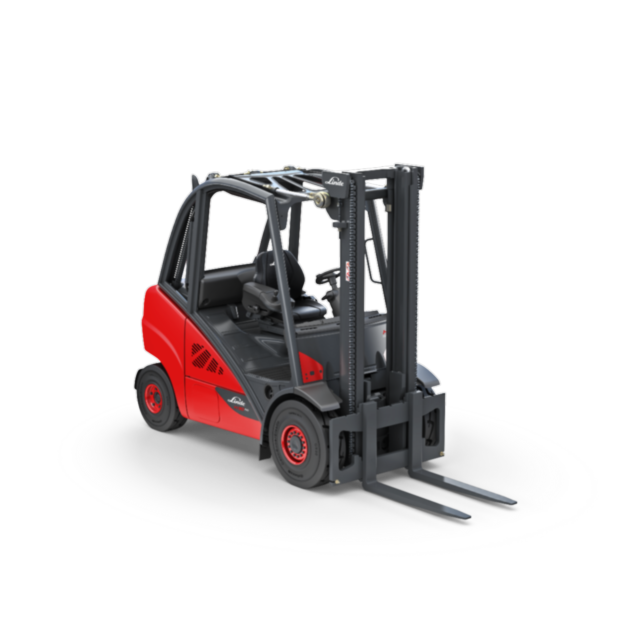

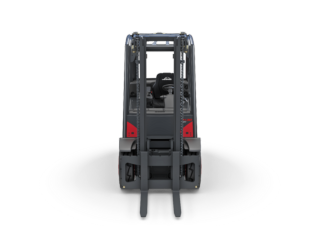

    Linde H30D Specifications & Technical Data (2017-2022)

    Rate this machine now!

    Nominal load at COG: 3t – Standard tyres: 2x(4x)/2 – Centre of gravity: 500mm – Transmission type: HY – Weight: 4,22t – Total width: 1256,000mm

    Technical specs - H30D Linde

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 3 t
    • Standard tyres 2x(4x)/2
    • Centre of gravity 500 mm
    • Transmission type HY
    • Weight 4,22 t
    • Total width 1256,000 mm
    • Construction height 2264,000 mm
    • Lifting height 3,050 m
    • Turning radius 2,444 m
    • Travel speed with / without load 22,000 km/h
    • Hoisting with / without load 0.53 / 0.55 m/s
    • Lowering with load 0.54 / 0.52 m/s
    • max. climbing ability 27/30 %
    • Engine manuf. VW
    • Engine type CPYB
    • Engine power 44 kW

    More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)
