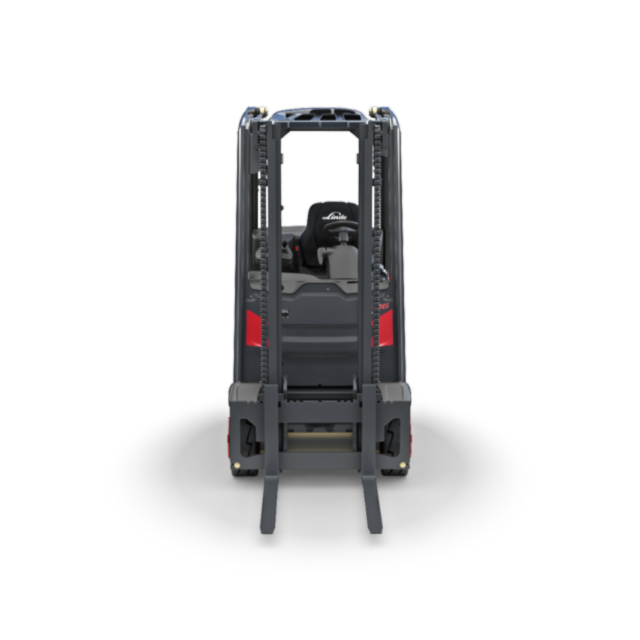

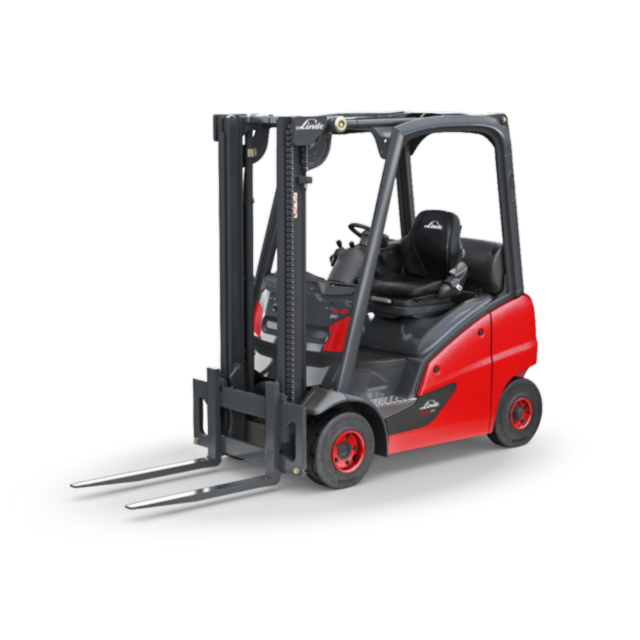

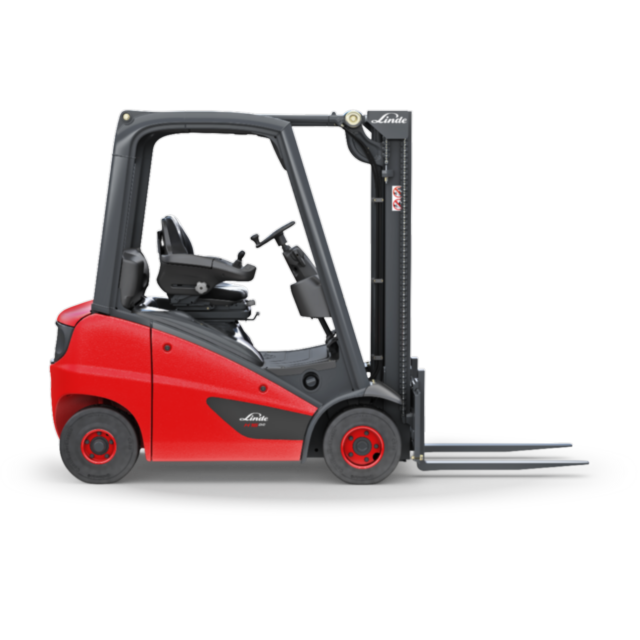

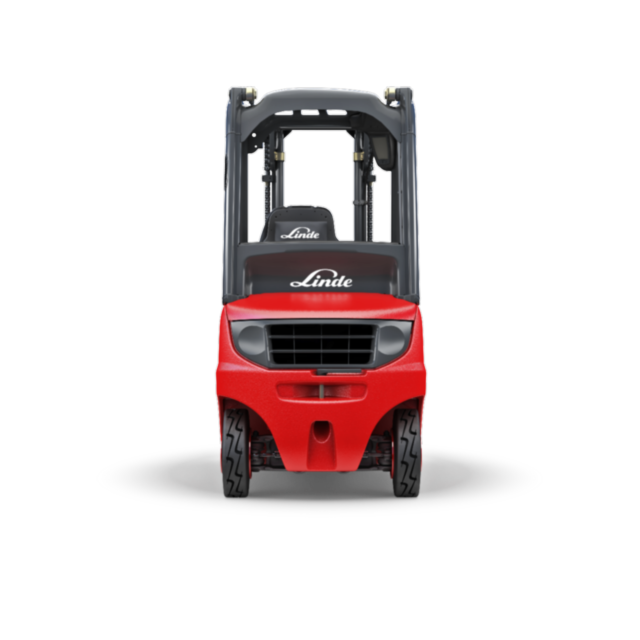

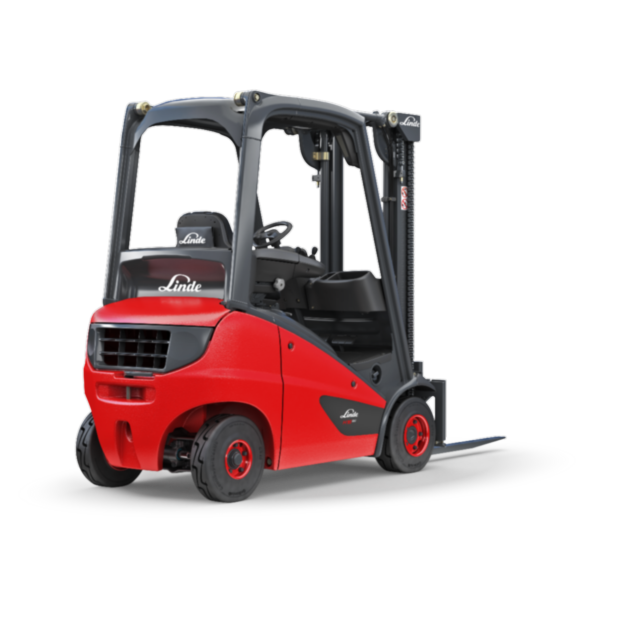

    Linde H20D Specifications & Technical Data (2017-2023)

    Rate this machine now!

    Nominal load at COG: 2t – Standard tyres: 2x/2 – Centre of gravity: 500mm – Transmission type: HY – Weight: 3,105t – Total width: 1152,000mm

    Technical specs - H20D Linde


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Nominal load at COG 2 t
    • Standard tyres 2x/2
    • Centre of gravity 500 mm
    • Transmission type HY
    • Weight 3,105 t
    • Total width 1152,000 mm
    • Construction height 2198,000 mm
    • Lifting height 3,150 m
    • Turning radius 2,121 m
    • Travel speed with / without load 20,000 km/h
    • Hoisting with / without load 0.54 / 0.57  m/s
    • Lowering with load 0.57 / 0.57 m/s
    • max. climbing ability 27/36 %
    • Engine manuf. VW
    • Engine type BXT
    • Engine power 26 kW

    More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulics with Simplex mast (3,3m up to 10t • 5m > 10t load capacity)

    Carbon footprint calculator for Diesel Explosion Proof Forklifts

    Use the ERA equipment CO2 Calculator to track the carbon footprint per hour of use of the Linde H20D or alternative Diesel Explosion Proof Forklifts .

    The CO2 emission evaluation can be carried out considering different fuel consumption scenarios or other factors.

    or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.

    service provided by ERA

    Buy & Rent

    Compare Linde H20D with similar Diesel Explosion Proof Forklifts

    Press 1 image

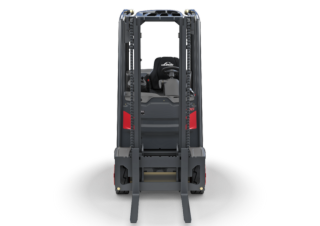

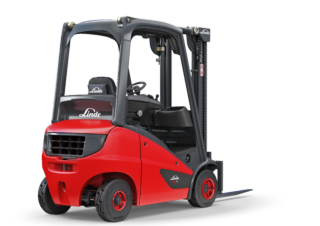

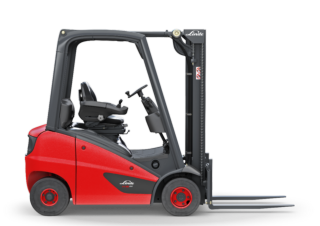

    Linde H20D
