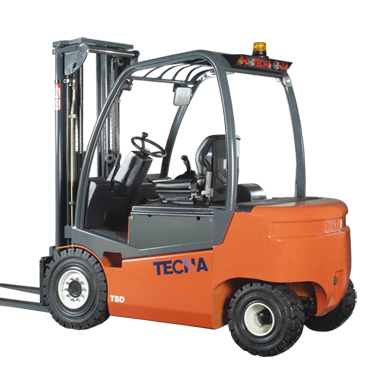

TSD 35 Tecna electric forklift specs & dimensions (2000 - 2014)

Transmission

The front two drive motors are carried out by means of independent and separate transmissions with gears constantly connected with inside a bath of oil. The steady conjunctions with easy access are perfectly protected in its position, by the chassis.

Steering Axle

The steering axle incorporate, as a new feature, a turning radius up to 185º±526, which permits an improved maneuvering compared to the traditional three wheels forklift trucks. The axle has two identical integrative two identical wheels of 16/6, which significantly improves the stability and maintenance of rear axle.

Hydraulic System

The big reservoir for hydraulic oil is integrated to the frame structure, due to which the liquid refrigeration is added to a great extent from this configuration. The sections for oil conduction are short, without curves, and no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent and auxiliary valves for overpressure. In the tilting circuit, there is an anti-valve system. In the rear circuit, a filter of 25 microns is incorporated. The main hydraulic valve may incorporate 4th functions and auxiliary electrovalves.

Brakes

The front axle brakes are a multidisc system in a constant bath of oil, actuated by a pedal of -automotion- type having long life without maintenance. It features electronic braking with energy recovery, a hand brake for parking, and a proportional electronic brake.

Upright

Upright Duplex, Duplex F.L. and Triplex F.L., one perfect GRAN VISION (new generation). Integral side shifter as Standard.

Uprights

With good visibility (Gran Visibilidad), Duplex (Duplex), Duplex free lift and Triplex free lift. Specific design of profiles compactly bent in, strongly to torsion and assembled with inclined bearings, replaceable and adjustable by means of shims (allows great improvement in problems of maintenance when implementing this operation for quite a short time) greased for life. The lift cylinders with fixed stays bent at both ends of its stroke, are installed in the cavities of the curves. The upright is connected to the chassis by means of greased bushings. This upright is characterized with high security rate, which supplied by the powerful engine pump of 16,5 kW, permits the quick lifting. They integrate a control system for speed limitation went lifting. (Against overturning).

Frame

The frame designed by means of a computer using the system for finite elements forms a very stable and robust set, integrating also the motors and the steering axle. Its low profile provides an optimum center of gravity of the forklift, which besides its good appearance, assures a high safety rate of these machines.

Motors and technologies AC

The drive motors, as well as the hydraulic one are AC, class F with protection IP20, without carbon brushes nor collector, are prepared for the hardest applications. In case of contaminated atmosphere, they are dust and dirtiness resistant. The availability for selection of systems with different output gives acceleration and a very good lifting capacity. This is one of the greatest advantages of AC. This technology permits the machine components to be revised and checked at longer periods of time, which significantly reduces the costs for maintenance.

Battery

The serial battery TECNA perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck roof to the driver. For that reason, its extraction and placement back is realized in a very short time.

Ergonomics

Operator compartment with the same dimensions, as those of a greater tonnage. Manipulation by means of Joystic (option – levers). Great comfort seat safety belt, weight adjustment and height and leaning-back positioning. LCD display with constant control of the machine functions. The OHG height is 2.200 mm, adjustable tall stature.

Display

Display with digital hour meter, battery indicator and constantly providing the driver information on the system conditions of the truck. P.M service count - down. Programmable for optimum adaptation of truck characteristics to the operation request (Acceleration, speed, deceleration, braking, etc.) Diagnosis information and warning indicators.

Driving

The forklift truck operation has exceptional ergonomic conditions. Easy access to operator compartment due to its low height of construction (550 mm). The steering column multi-positioning and the seat adjusted in height and resting, allows adaptation to the body characteristics of each person. The pedals are of automotive type making easy the adaptation to driving the truck. The joystick, easy accessible, permits very sensible control of lifting, tilting side shift. The hydrostatic steering is operated without any effort, the system for actuating the pump functions only is required by the steering-wheel guaranteeing great energy saving. The vector control system permits easy change, from forward to reverse, and offering easy and smooth operation by design. The noise level in operator's ears is according to Standard DIN 12 053 < 65 dB.
