Nominal load at COG: 4.99t – Standard tyres: SE 2x/2 – Total width: 1420mm – Construction height: 2340mm – Centre of gravity: 500m…
Nominal load at COG: 4.99t – Standard tyres: SE 2x/2 – Total width: 1420mm – Construction height: 2340mm – Centre of gravity: 500mm – Voltage: 80V

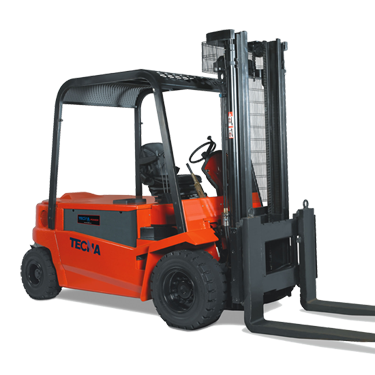

Tecna is the manufacturer of the TH 50 electric forklift. The production years for this model are (2000 - 2014). Find here detailed specs for TH 50 electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Tecna.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
Front dual drive transmission, with motors 10 + 10K, with two gear boxes formed by two independent parts, the gear box and the braking housing, where the multidiscs brake system, in oil bath, is located. The big size superelastic tyres gives to the transmission set big stability and very good performance.
Steering Axle
The steering axle incorporate, as a new feature, a turning radius up to 185°6, which permits an improved maneuvering compared to the traditional three wheels forklift trucks. The axle has two identical integrates two identical wheels of 16°6, which significantly improves the stability and maintenance of rear axle.
Brakes
The front axle brakes are multidisc system in constant bath of oil, actuated by a pedal of automotive-type having a long life. Electronic breaking with energy recovery. Hand brake for parking. Proportional electronic brake.
Frame
The frame designed by means of a computer using the system for finite methods, forms a very stable and robust set, integrating also the motors and the steering axle.
Handling
Masts
High visibility, Duplex, Duplex free lift and Triplex free lift. Nested U profiles are exceptionally torsion-resistant, with adjustable rollers greased for life. The masts are mounted on special bushings and linked with tilt cylinders to the frame. The significant overlap between profiles provides a high grade of stability to the assembly, which, with a motor pump of 22 KW, allows for high-speed lifting and very good performance.
Performance
Motors and technologies AC
The drive motors, as well as the hydraulic one are CA, class F with protection IP20, without carbon brushes nor collector are prepared for the hardest applications. In case of contaminated atmosphere, they are dust and dirtiness resistant. The availability for selection of systems with different output gives acceleration and one very good lifting capacity. This is one of the greatest advantages of AC. This technology permits the machine components to be revised and checked at longer periods of time, which significantly reduces the costs for maintenance.
Safety
Hydraulic system
The big reservoir for hydraulic oil is integrated to the frame structure, due to which the liquid refrigeration is added to a great extent from this configuration. The sections for oil conduction are short, without curves, and no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent, as well as auxiliary valves for overpressure. In the tilting circuit, there is an anti-cavity system, and in the retard circuit, a filter of 25 microns is incorporated. The main hydraulic valve may incorporate other 4th functions and auxiliary electrovalves.
Battery
The serial battery TECNA perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck roof to the driver. For that reason, its extraction and placement back is realized in very short time.
