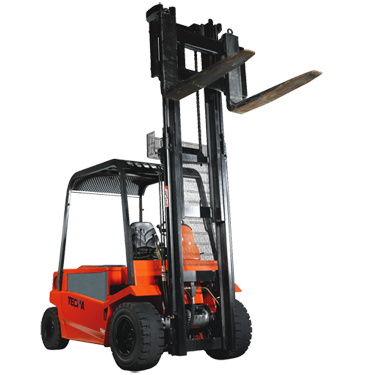

TH 45 Tecna electric forklift specs & dimensions (2000 - 2014)

Transmission

Front dual drive transmission, with motors 10 + 10K, with two gear boxes formed by two independent parts, the gear box and the braking housing, where the multidiscs brake system, in oil bath, is located. The big size superelastic tyres gives to the transmission set big stability and very good performance.

Steering Axle

The steering axle incorporate, as a new feature, a turning radius up to 185°6, which permits an improved maneuvering compared to the traditional three wheels forklift trucks. The axle has two identical integrates two identical wheels of 16°6, which significantly improves the stability and maintenance of rear axle.

Hydraulic System

The big reservoir for hydraulic oil is integrated to the frame structure, due to which the liquid refrigeration is added to a great extent from this configuration. The sections for oil conduction are short, without curves, no prerequisites for energy loss from rubbing or friction heating are generated. It incorporates safety valves in elevation and descent and auxiliary valves for overpressure. In the tilting circuit there is an anti-cavity system. In the retard circuit is incorporated a filter of 25 microns. The main hydraulic valve may incorporate other 4th functions and auxiliary electrovalves.

Brakes

The front axle brakes are multidisc system in constant bath of oil, actuated by a pedal of automotive-type having a long life. Electronic breaking with energy recovery. Hand brake for parking. Proportional electronic brake.

Frame

The frame designed by means of a computer using the system for finite methods, forms a very stable and robust set, integrating also the motors and the steering axle.

Masts

High visibility, Duplex, Duplex free lift and Triplex free lift. Nested U profiles are exceptionally torsion-resistant, featuring adjustable rollers that are greased for life. The masts are mounted on special bushings and linked with tilt cylinders to the frame. The significant overlap between profiles provides a high grade of stability to the assembly, which, with a motor pump of 22 KW, allows for high-speed lifting and very good performance.

Motors and technologies AC

The drive motors, as well as the hydraulic one are CA, class F with protection IP20, without carbon brushes nor collector are prepared for the hardest applications. In case of contaminated atmosphere, they are dust and dirtiness resistant. The availability for selection of systems with different output gives acceleration and one very good lifting capacity. This is one of the greatest advantages of AC. This technology permits the machine components to be revised and checked at longer periods of time, which significantly reduces the costs for maintenance.

Battery

The serial battery TECNA perfectly fits its place, fixed in operating position by means of a well designed access, which secures protection from the truck roof to the driver. For that reason its extraction and placement back is realized in very short time.
