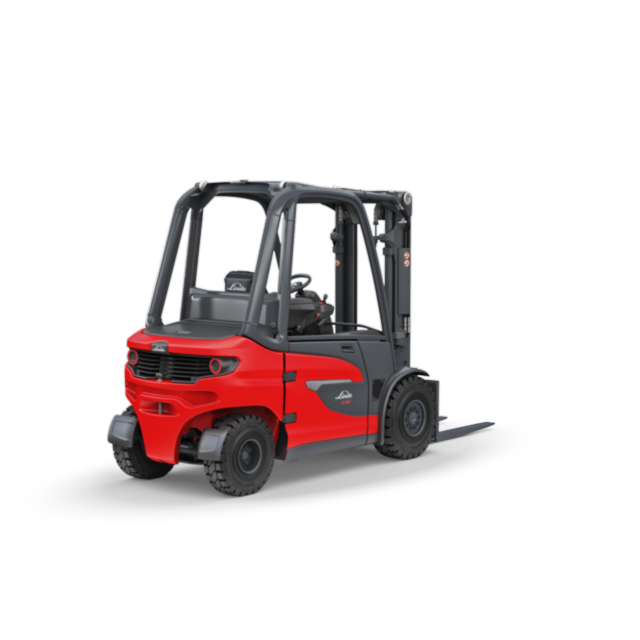

X25 Linde electric forklift specs & dimensions (2021 - 2026)

Nominal load at COG: 2.5t – Standard tyres: 250/75-12; 6.50-10 – Total width: 1256mm – Construction height: 2225mm – Centre of gra…

Nominal load at COG: 2.5t – Standard tyres: 250/75-12; 6.50-10 – Total width: 1256mm – Construction height: 2225mm – Centre of gravity: 500mm – Voltage: 90V

Linde is the manufacturer of the X25 electric forklift. The production years for this model are (2021 - 2026). Find here detailed specs for X25 electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Linde.

Electric forklifts Linde X25

Technical specs - X25 Linde

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.5 t
Standard tyres
250/75-12; 6.50-10
Total width
1256 mm
Construction height
2225 mm
Centre of gravity
500 mm
Voltage
90 V
Traction motor
24.8 kW
Hoist motor
20 kW
Weight
3.63 t
Battery weight
1.21 t
Turning radius
2.35 m
Lifting height
3.1 m
Travel speed with / without load
22/22 km/h
Hoisting with / without load
0.57/0.58 m/s
Lowering with load
0.58 m/s
Model series
X

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel

Download datasheets (PDF)

Linde X25 overview

Drive

Electrically powered front-runner

The first electric forklift truck which combines the performance and durability of an IC truck with dynamics, flexibility, and freedom from emissions that comes with an electric forklift truckSynchronous reluctance motor (SRM+) with efficient water-cooling system that allows for top-performance in multishift applications, even in extreme conditions like dust and dirtHighest standards when it comes to efficiency, ergonomics, and safetyOptimally prepared for embedding within digital logistic processes thanks to data transmission unit fitted as standard


Handling

A longer wheelbase, large tires, and vibration-free drive axle enable use in challenging environments. Synchronous reluctance motor (SRM+) for lift and drive function with efficient water-cooling system ensures consistently high performance, even in extreme conditions. Overhead tilt cylinder and warp-resistant mast design ensure safe load handling, even when storing and retrieving at height.


Handling

Ergonomics

Spacious driver’s cab and ergonomic seat ensure fatigue-free working. Optimum view of both the load and surroundings. Layout of control elements reduces the physical strain on the driver. Separation of the workstation, drive unit, and mast reduces physical strain on the driver, including on uneven surfaces.


Safety

Chassis, A-pillar, mast, and roof construction provide the driver with optimum visibility of the load and surroundings. The truck’s low center of gravity reduces the risk of tipping. Linde Curve Assist reduces speed in relation to the steering angle when cornering. Linde Load Assist reduces the risk of tipping accidents when moving loads at height. Automatic parking brake inclusive hill-hold function.
