The globally coveted S-Series celebrated its debut in 2018. With the special "Smart, Strong and Safe" features of the counterbalance trucks,...

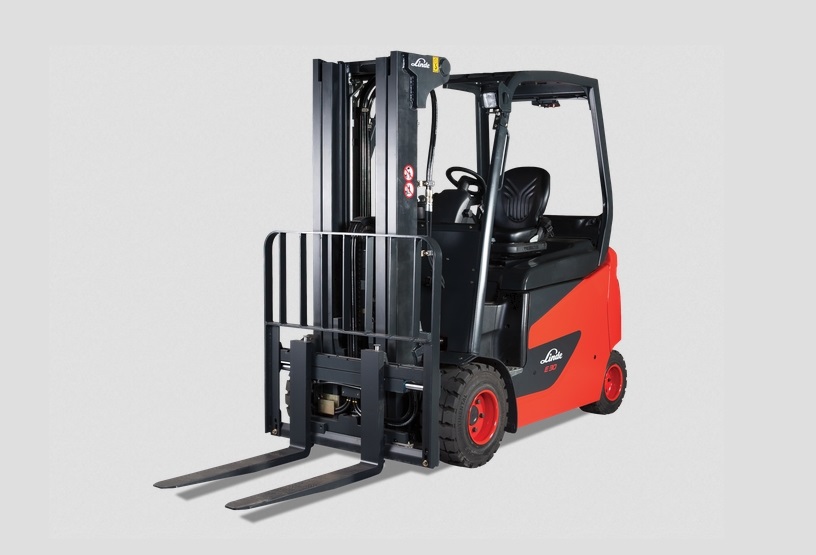

Linde E25SH Specifications & Technical Data (2022-2022)
Nominal load at COG: 2.5t – Standard tyres: Front: 23x9-10 / Rear: 200/50-10 – Total width: 1228mm – Construction height: 2242mm – Centre of gravity: 500mm – Voltage: 80V
Technical specs - E25SH Linde
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Nominal load at COG 2.5 t
- Standard tyres Front: 23x9-10 / Rear: 200/50-10
- Total width 1228 mm
- Construction height 2242 mm
- Centre of gravity 500 mm
- Voltage 80 V
- Traction motor 2x9 kW
- Hoist motor 17 kW
- Weight 5.06 t
- Battery weight 1.86 t
- Turning radius 1.99 m
- Travel speed with / without load 20/20 km/h
- Hoisting with / without load 0,44/0,51 m/s
- Lowering with load 0.56 m/s
-
Drive system
### -
Lifting height
###
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel
