EC23N Caterpillar electric forklift specs & dimensions (2021 - 2026)

Nominal load at COG: 2.3t – Standard tyres: Front: 21x7x15/Rear: 16x5x10.5 – Total width: 1055mm – Construction height: 2235mm – C…

Nominal load at COG: 2.3t – Standard tyres: Front: 21x7x15/Rear: 16x5x10.5 – Total width: 1055mm – Construction height: 2235mm – Centre of gravity: 500mm – Voltage: 48V

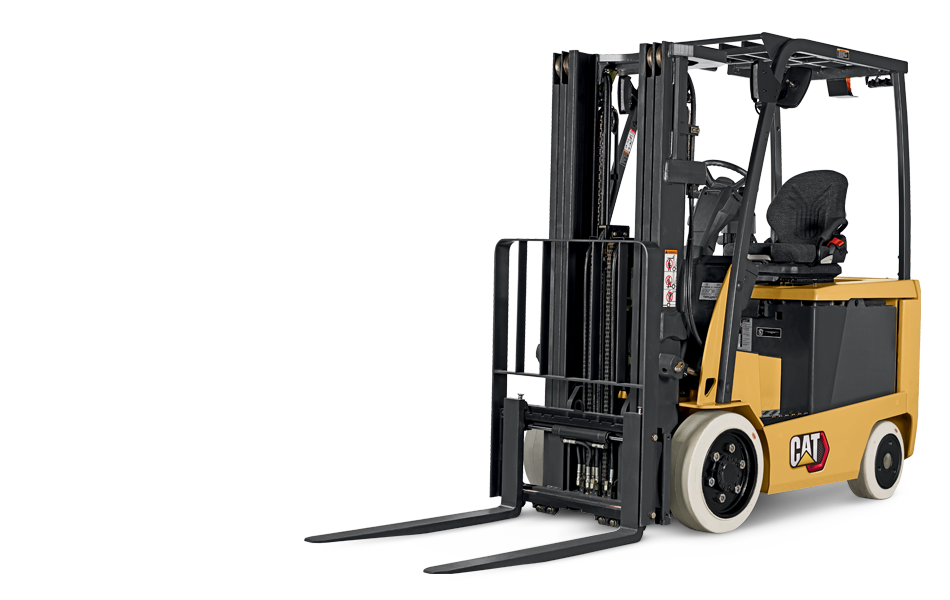

Caterpillar is the manufacturer of the EC23N electric forklift. The production years for this model are (2021 - 2026). Find here detailed specs for EC23N electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Caterpillar.

Electric forklifts Caterpillar EC23N

Technical specs - EC23N Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.3 t
Standard tyres
Front: 21x7x15/Rear: 16x5x10.5
Total width
1055 mm
Construction height
2235 mm
Centre of gravity
500 mm
Voltage
48 V
Traction motor
16.5 kW
Hoist motor
17.3 kW
Weight
3.98 t
Battery weight
1.18 t
Turning radius
1.86 m
Lifting height
3.34 m
Travel speed with / without load
18.2/18.2 km/h
Hoisting with / without load
0.48/0.65 m/s
Lowering with load
0.5 m/s
Model series
EC

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel

Download specalog and datasheets (PDF)

Caterpillar EC23N overview

Caterpillar EC23N features overview

Exceptional Comfort For A Long Day’s Work.

Optional USB charging port for work and personal devices. Narrow mast channels and open overhead guard design for excellent visibility. Low-profile counterweight provides excellent visibility when traveling in reverse.


Drive

Made For Your Operation

Combining the latest in operator ergonomics and advanced AC technology, the Cat EC23N-EC30LN electric cushion tire lift truck series gives your operators the tools they need to drive your business forward.


Exceptional Run Times

Work longer without sacrificing performance, thanks to Cat Lift Trucks 3-phase AC technology and regenerative braking. All AC drive and hydraulic system – no brushes or commutator Enhanced hydraulic power steering.


With Intelligent Technology To Assist You

With a wide range of features and options, the Cat EC23N-EC30LN series gives your operators the confidence they need to get the job done.


Performance

Responsive acceleration and braking

Separate drive, hydraulic and steer motors maximize the lift truck’s performance for superior power and greater productivity. The Benefit To You: Responsive acceleration and braking, precise positioning, and controlled travel speed.


Adaptable Performance Modes

Optimize your performance and efficiency by simply selecting one of the pre-set operating modes. Profits are maximized by achieving the right balance between output and economy.


Safety

Added protection

For extra protection and reduced noise, the unique battery compartment design features strategic spacers and an additional edge cover.


Cabin & Equipment

Adjustable Vinyl Seat

The full-suspension, standard vinyl seat can be adjusted to give the operator the most comfortable position possible: Front and back Lumbar support Suspension
