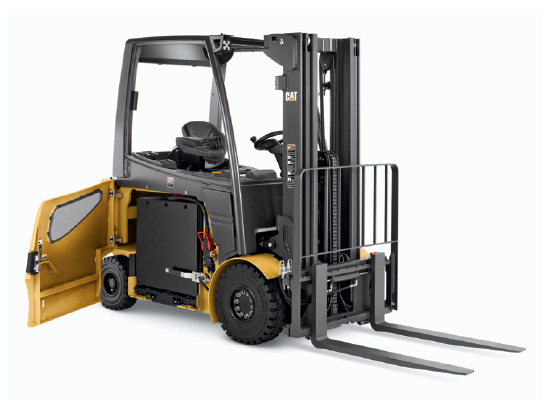

2EP6500 Caterpillar electric forklift specs & dimensions (2021 - 2026)

Nominal load at COG: 3t – Standard tyres: Front: 315/45-12/Rear: 200/50-10 – Total width: 1300mm – Construction height: 2240mm – C…

Nominal load at COG: 3t – Standard tyres: Front: 315/45-12/Rear: 200/50-10 – Total width: 1300mm – Construction height: 2240mm – Centre of gravity: 600mm – Voltage: 80V

Caterpillar is the manufacturer of the 2EP6500 electric forklift. The production years for this model are (2021 - 2026). Find here detailed specs for 2EP6500 electric powered lift truck - in a form of table chart below and downloadable datasheet. Explore also the other forklift models produced by Caterpillar.

Technical specs - 2EP6500 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3 t
Standard tyres
Front: 315/45-12/Rear: 200/50-10
Total width
1300 mm
Construction height
2240 mm
Centre of gravity
600 mm
Voltage
80 V
Traction motor
12 kW
Hoist motor
18.5 kW
Weight
5.39 t
Battery weight
1.77 t
Turning radius
2.15 m
Lifting height
3.1 m
Travel speed with / without load
16/17 km/h
Hoisting with / without load
0.40/0.55 m/s
Lowering with load
0.58 m/s
Model series
EP

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs without additional hydraulics, battery, charger. With Simplex mast (3,3m up to 10t • 5m > 10t load capacity). L = pneumatic tyres, x = drive, SE = superelastic, P = PUR (Elastollan, Vulkollan), V = solid rubber, ND = low-pressure tyres, 3 = three-wheel, 4 = four-wheel, 6 = six-wheel

Download specalog and datasheets (PDF)

Caterpillar 2EP6500 overview

Caterpillar 2EP6500 features overview

Made For Your Business

The Cat 2EPC5000-2EP6500 series of electric pneumatic tire lift trucks offers maximum performance for a wide range of applications. Designed to thrive in tough environments, this series features all the benefits of an electric forklift combined with the strength and power you’d expect from internal combustion engines.


Smooth Handling, Greater Control

Built to tackle demanding applications both indoors and out, the 2EPC5000-2EP6500 series is equipped to keep your operators comfortable and in control, shift after shift.


What Makes A Comfortable Ride

Operators can work long shifts comfortably in a wide range of applications due to the lift truck’s ergonomic design. Less fatigue means more productivity throughout the shift.


To Get The Job Done

Cat lift trucks are designed to help you get the most out of your work day. From enhanced energy efficiency for greater uptime to premium performance levels, your operators will effectively move more per shift, every day.


Cold Storage or Tropics Modification

Equips the lift truck with special fluids and conditioning for optimal performance in cold or humid storage environments.


Cabin & Equipment

Comfort (closed) cabin

Helps protect operators from adverse weather conditions. This cabin has additional options to further boost productivity in even the harshest environments.
