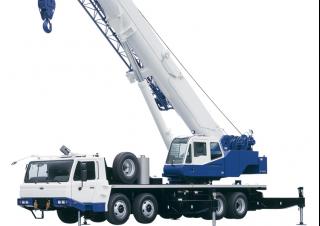

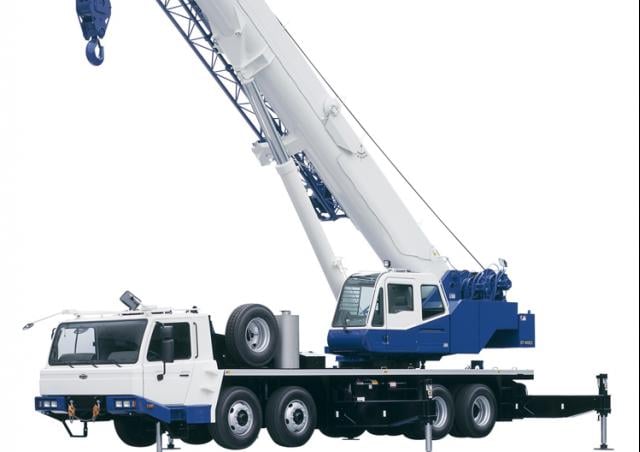

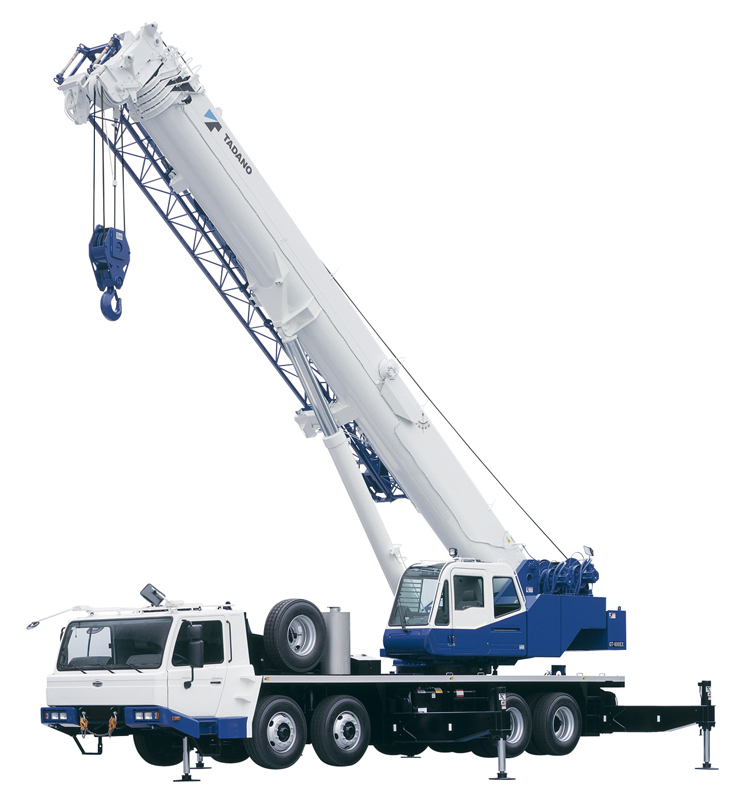

Tadano GT 600 EX crane - load chart, specs & dimensions (2010 - 2020)

max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 36m – max. standard boom: 43m – Max. luffing…

max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 36m – max. standard boom: 43m – Max. luffing jib: 15.2m

See load chart, specs, capacity, size and other technical data for Tadano GT 600 EX crane manufactured between 2010 - 2020. See information, like: max. carrying capacity: 60t – at reach: 3m – Carrying capacity: 0.6t – at max. reach: 36m – max. standard boom: 43m – Max. luffing jib: 15.2m and more.

Technical specs - GT 600 EX Tadano

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
60 t
at reach
3 m
Carrying capacity
0.6 t
at max. reach
36 m
max. standard boom
43 m
Max. luffing jib
15.2 m
max. hook height
58 m
Undercarriage engine
260 kW
Travel speed
84 km/h
Number of axles
4
Model series
EX
Engine manuf.
Mercedes
Engine type
OM457LA
Engine power
260 kW
Displacement
11.967 l
Revolutions at max torque
1100 rpm
Max. torque
1.85 Nm
No. of cylinders
6
Cylinder bore x stroke
128.155 mm
Weight
42.15 kg
Emission level
III

More technical details, like: load torque, superstructure engine, wheels/drive/steering, axle load, standard tyres, tipping load, dimension lxwxh are available in the full technical specs.

Including hook block

Special equipment

2nd winch
Yes
max. luffing jib
Yes
Foucault current brake
No
Add. ballast
No
Aux. luff. boom
No
Front axle block
No
