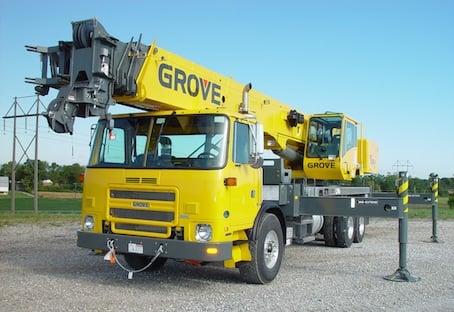

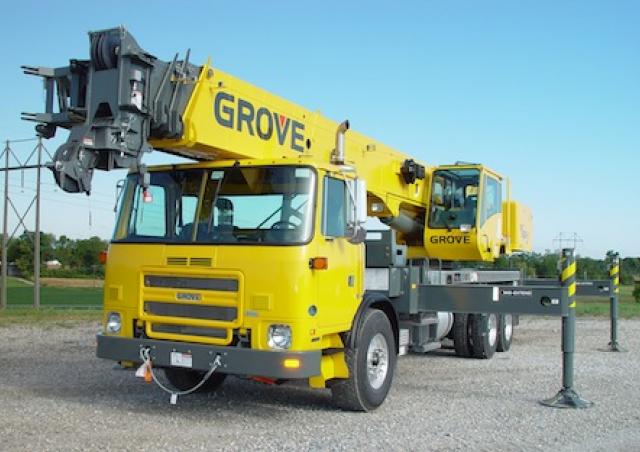

Grove TM500E-2 crane - load chart, specs & dimensions (2006 - 2025)

max. carrying capacity: 40t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 26m – max. standard boom: 29m – Max. luffi…

max. carrying capacity: 40t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 26m – max. standard boom: 29m – Max. luffing jib: 13.7m

See load chart, specs, capacity, size and other technical data for Grove TM500E-2 crane manufactured between 2006 - 2025. See information, like: max. carrying capacity: 40t – at reach: 2.5m – Carrying capacity: 1.7t – at max. reach: 26m – max. standard boom: 29m – Max. luffing jib: 13.7m and more.

Technical specs - TM500E-2 Grove

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. carrying capacity
40 t
at reach
2.5 m
Carrying capacity
1.7 t
at max. reach
26 m
max. standard boom
29 m
Max. luffing jib
13.7 m
Load Torque
1000 kNm
Undercarriage engine
82 kW
Travel speed
104.6 km/h
Number of axles
3
Wheels/Drive/Steering
6/4/2
axle load
18 t
Standard tyres
F: 425/65R22.5, R: 11R22.5
Model series
TM
Engine manuf.
Cummins
Engine type
QSB3.3
Engine power
82 kW
Max. torque
415 Nm
No. of cylinders
4
Emission level
T3

More technical details, like: max. hook height, superstructure engine, tipping load, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, weight are available in the full technical specs.

Including hook block

Special equipment

2nd winch
No
max. luffing jib
No
Foucault current brake
No
Add. ballast
No
Aux. luff. boom
No
Front axle block
No
