LC5013 Comansa crane - load chart, specs & dimensions (2001 - 2008)

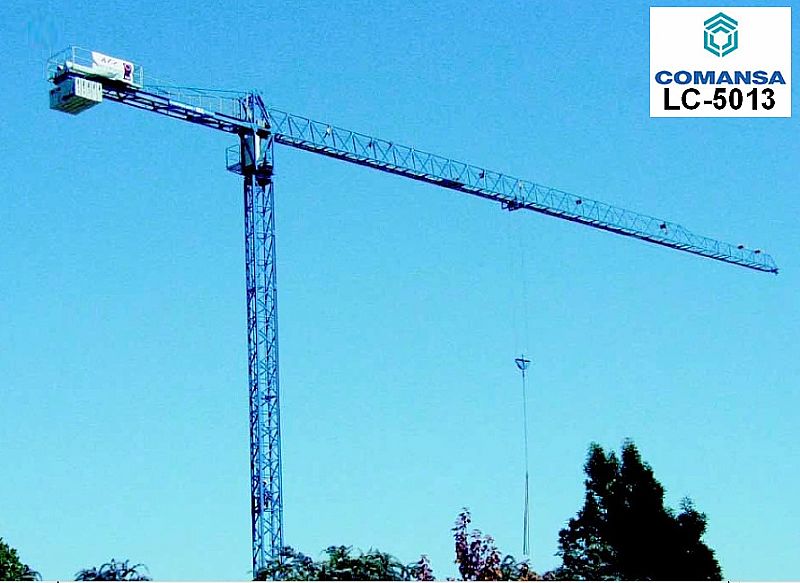

Manufactured by Comansa, this is the LC 5013 tower crane - trolley boom - top-slewing. Find and download detailed specs and data s…

Manufactured by Comansa, this is the LC 5013 tower crane - trolley boom - top-slewing. Find and download detailed specs and data sheets for this machine here.

This Comansa Tower crane - Trolley boom - top-slewing belongs to the smallest machine segment in the tower crane - trolley boom - top-slewing category. To be able to lift loads, the LC 5013 crane is equipped with a 50m-long boom. The LC 5013 Tower crane - Trolley boom - top-slewing has a maximum capacity of 5t. When carrying the maximum load the LC 5013 can reach up to 15.4m. It is safe to lift 1.2t at the crane's maximum reach. As stated in model specifications, the nominal torque is 800. The max. Hook height is 45.2m.

The Comansa LC 5013 has been equipped and sold with Cabin, Add. Ballast and Cross girder. It has been sold without Undercarriage, Rail carrier and Climbing device as of 2008. More detailed specifications and machine descriptions can be found in the original Comansa LC 5013 specs data sheet.

This model can be acquired for a list price between €107,000 and €137,000. Production of the LC 5013 in 2008.

Comparisons of the LC 5013 Comansa with other tower cranes - trolley boom - top-slewing models reveal that, based on specifications and pricing, the model is similar to the Terex Peiner SK 76-F-TS 10.3, Raimondi MR 75-A as well as Potain E 10.14 C. Want more detailed specifications? Download the latest Comansa LC 5013 specs data sheet on LECTURA Specs today!

Tower Cranes - Trolley Boom - Top-slewing Comansa LC5013

Technical specs - LC5013 Comansa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque
800 kNm
Max. load
5 t
Load at max. Reach
1.2 t
Reach at max. Load
15.4 m
max. standard boom
50 m
max. hook height
45.2 m
Connection load
70 KVA

More technical details, like: max. reach, max. luffing jib, min. luffing jib, tower height, ropes, max. hoisting speed, tower system, drive system, hoist unit, model series are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin
Yes
Add. ballast
Yes
Rail carrier
No
Climbing device
No
Undercarriage
No
Cross girder
Yes
