LC5013 Comansa crane - load chart, specs & dimensions (2001 - 2008)

Nominal torque: 670kNm – Max. load: 5t – max. reach: 51.5m – Load at max. Reach: 1.2t – Reach at max. Load: 15.4m – max. standard …

Nominal torque: 670kNm – Max. load: 5t – max. reach: 51.5m – Load at max. Reach: 1.2t – Reach at max. Load: 15.4m – max. standard boom: 50m

See load chart, specs, capacity, size and other technical data for Comansa LC5013 crane manufactured between 2001 - 2008. See information, like: Nominal torque: 670kNm – Max. load: 5t – max. reach: 51.5m – Load at max. Reach: 1.2t – Reach at max. Load: 15.4m – max. standard boom: 50m and more.

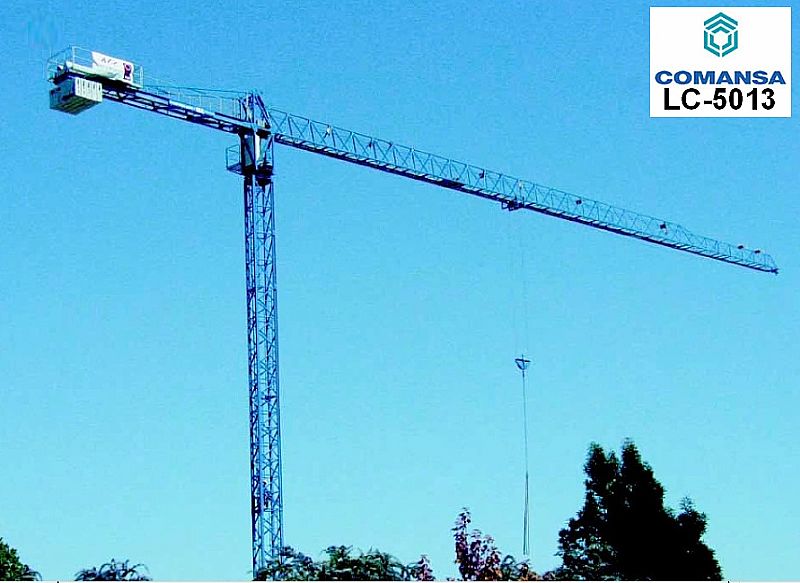

Tower Cranes - Trolley Boom - Top-slewing Comansa LC5013

Technical specs - LC5013 Comansa

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque
670 kNm
Max. load
5 t
max. reach
51.5 m
Load at max. Reach
1.2 t
Reach at max. Load
15.4 m
max. standard boom
50 m
min. luffing jib
30 m
max. hook height
35.8 m
max. hoisting speed
76 m/min
Hoist unit
18 kW

More technical details, like: max. luffing jib, tower height, ropes, tower system, drive system, connection load, model series are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin
Yes
Add. ballast
Yes
Rail carrier
No
Climbing device
No
Undercarriage
No
Cross girder
Yes
