E 3610 Condecta crane - load chart, specs & dimensions (2003 - 2026)

Nominal torque: 430kNm – Max. load: 4t – max. reach: 36m – Load at max. Reach: 1t – Reach at max. Load: 13.8m – max. standard boom…

Nominal torque: 430kNm – Max. load: 4t – max. reach: 36m – Load at max. Reach: 1t – Reach at max. Load: 13.8m – max. standard boom: 36m

See load chart, specs, capacity, size and other technical data for Condecta E 3610 crane manufactured between 2003 - 2026. See information, like: Nominal torque: 430kNm – Max. load: 4t – max. reach: 36m – Load at max. Reach: 1t – Reach at max. Load: 13.8m – max. standard boom: 36m and more.

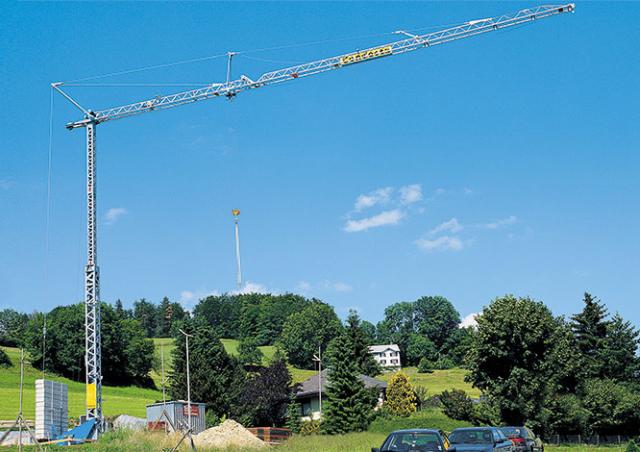

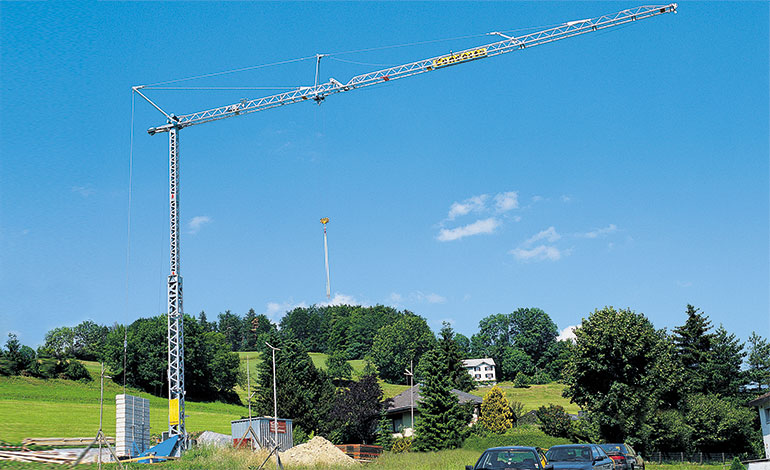

Tower Cranes - Trolley Boom - Bottom-slewing Condecta E 3610

Technical specs - E 3610 Condecta

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal torque
430 kNm
Max. load
4 t
max. reach
36 m
Load at max. Reach
1 t
Reach at max. Load
13.8 m
max. standard boom
36 m
Tower height
27.6 m
max. hook height
22.5 m
max. hoisting speed
50 m/min
Drive system
FU
Hoist unit
23 kW
Model series
E

More technical details, like: ropes, max. luffing jib, min. luffing jib, tower system, connection load are available in the full technical specs.

If alignment change (2/4) is possible, the loads for quadruple alignment applies. In case of crane on anchor bolt, the anchor is not included in base price. Incl. concrete ballast, crane control and spindles with plates (latter not valid with rail-bound travelling, incl. cable drum and cruciform base)

Special equipment

Cabin
No
Rail carrier
No
Road Carrige
Yes
Steep jib pos.
No
Hot-dipped galvanised
Yes
Ballasting device
No
